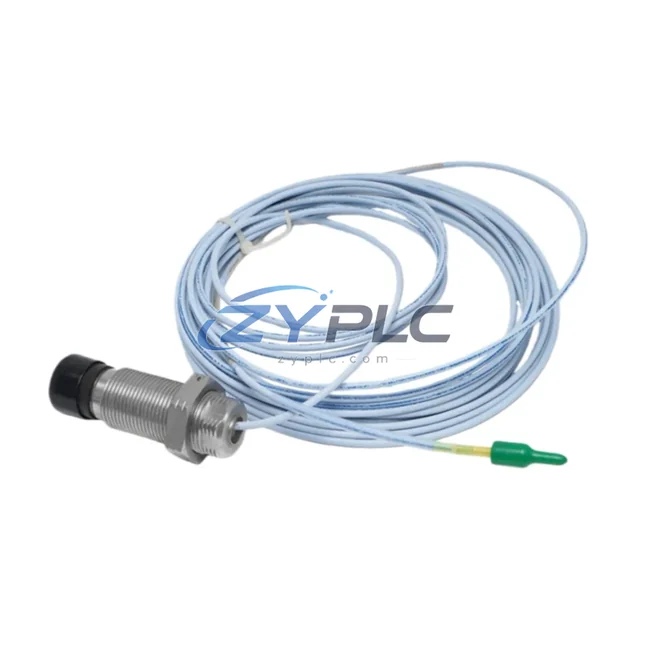

The Bently Nevada 330851-02-000-070-10-00-05 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 XL Series machinery protection and condition monitoring architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, steel and metallurgical plants, and rotating equipment facilities — vibration monitoring is not a standalone function. It is a critical layer within a multi-tier control hierarchy that connects field-level sensing, signal conditioning, communication gateways, and supervisory control systems into a unified, coherent architecture. This probe is designed to serve exactly that role: a reliable, calibrated sensing element that anchors the measurement chain from the machine shaft to the control room.

Within a complete 3300 XL system, the 330851-02-000-070-10-00-05 operates in conjunction with the 330180 Series extension cables and 330130 Series proximitor/oscillator drivers, forming a three-component transducer system. The proximitor converts the probe’s electromagnetic gap signal into a DC voltage proportional to shaft displacement, which is then routed to the 3300 XL monitor rack — typically housing modules such as the 3300/16 Dual Voting Logic, 3300/20 Radial Vibration Monitor, or 3300/46 Position Monitor. These monitors feed real-time vibration, position, and speed data into the plant’s distributed control system (DCS) or safety instrumented system (SIS) via hardwired relay outputs or communication interfaces including Modbus RTU, FOUNDATION Fieldbus, or Profibus DP.

System architects integrating this probe into a layered automation platform must consider its role across multiple functional layers. At the field sensing layer, the 330851-02-000-070-10-00-05 provides continuous, non-contact measurement of radial shaft vibration and position with a nominal sensitivity of 7.87 mV/µm (200 mV/mil) and a linear measurement range suited for large rotating machinery. At the signal conditioning layer, the paired proximitor — such as the 330180-X0-CN or 330130-040-00-00 — converts the raw impedance signal into a calibrated voltage output. At the I/O and monitoring layer, the 3300 XL rack modules digitize and process these signals, applying alarm and danger setpoints configured through the System 1 Evolution software platform. At the network and communication layer, the rack’s gateway modules transmit processed data upstream to historian servers, SCADA platforms, or asset performance management (APM) systems, enabling predictive maintenance workflows and long-term trend analysis.

Redundancy and system reliability are central design considerations for any critical rotating equipment protection system. The 3300 XL architecture supports dual-redundant power supplies — such as the 3300/05 Power Supply module — ensuring uninterrupted monitoring even during power module maintenance or failure. For machines where continuous operation is mandatory, such as main steam turbines, compressor trains, or boiler feed pumps, the 330851-02-000-070-10-00-05 can be deployed in dual-probe configurations per measurement plane, with voting logic modules providing 2-out-of-2 or 2-out-of-3 trip logic to eliminate spurious shutdowns while maintaining protection integrity. This architecture aligns with IEC 61511 functional safety requirements for SIL-rated protection loops.

From an engineering commissioning perspective, the 330851-02-000-070-10-00-05 is supplied with a defined gap voltage specification, typically set at -10.0 VDC ± 0.5 VDC at the recommended installation gap of 1.27 mm (50 mil). Commissioning engineers should verify gap voltage using a calibrated DC voltmeter at the proximitor output connector before energizing the monitor rack. The probe’s armored cable and stainless-steel housing are rated for installation in high-temperature, high-vibration environments, and the connector system is compatible with standard Bently Nevada field wiring practices. Long-term maintenance planning benefits from the probe’s non-contact measurement principle — there are no wear surfaces, and periodic recalibration intervals can be extended when the probe is operated within its specified environmental envelope.

Supply chain continuity is a critical factor for plant maintenance teams managing aging 3300 XL installations. ZYPLC maintains availability subject to RFQ confirmation of the 330851-02-000-070-10-00-05 alongside complementary components including 330180 extension cables, 330130 proximitor drivers, 3300/05 power supply modules, and 3300/20 radial vibration monitors, enabling complete transducer system procurement from a single source. All units are covered by a warranty terms confirmed during quotation and undergo functional verification prior to shipment, supporting both emergency replacement and planned maintenance outage schedules.

Product Specification Table

System Compatibility Notes

The 330851-02-000-070-10-00-05 achieves its full protective value only when integrated within a correctly specified and coordinated system architecture. The complete transducer chain begins with this probe and the 330180-X0-CN extension cable, connecting to a 330130-040-00-00 or 330130-080-00-00 proximitor driver mounted in the field junction box or directly at the monitor rack. The proximitor output feeds into the 3300 XL monitor rack, where modules such as the 3300/20 Radial Vibration Monitor, 3300/25 Thrust Position Monitor, or 3300/46 Eccentricity Monitor process the signal and apply configured alarm and danger setpoints.

Rack power integrity is maintained by the 3300/05 Dual-Output Power Supply, which supports redundant power configurations for critical machine trains. For plants requiring integrated speed and phase reference measurement, the 330980 Series tachometer probes can be installed alongside the 330851-02-000-070-10-00-05 on the same machine, with both signal types processed within the same 3300 XL rack. Upstream data aggregation is handled by the System 1 Evolution software platform, which collects time-waveform, spectrum, and trend data from all rack modules and presents it to condition monitoring engineers via a unified dashboard. For plants with existing DCS infrastructure — such as Emerson DeltaV, Honeywell Experion, or ABB 800xA — the 3300 XL rack communicates via its gateway module, enabling alarm annunciation and data historian integration without additional signal conditioning hardware. HMI visualization of vibration trends can be configured directly within the DCS graphics environment, providing operators with real-time shaft position and vibration amplitude data alongside process variables such as bearing temperature, lube oil pressure, and steam flow.

Industrial Application Notes

The 330851-02-000-070-10-00-05 is deployed across a wide range of heavy industrial applications where rotating equipment protection is a safety and reliability imperative. In power generation facilities — including coal-fired, gas turbine, and nuclear plants — this probe monitors main steam turbine shaft vibration and axial position, providing the primary input to the turbine protection system. In petrochemical and refinery environments, it is installed on centrifugal compressor trains, reactor charge pumps, and cooling water pumps, where continuous vibration monitoring enables condition-based maintenance and reduces unplanned downtime. In steel and metallurgical plants, the probe monitors rolling mill drive motors, blast furnace blower compressors, and continuous casting machine drives, where shaft imbalance or misalignment can cause catastrophic equipment failure if undetected.

In water and wastewater treatment facilities, the 330851-02-000-070-10-00-05 is applied to large vertical turbine pumps and centrifugal blowers, where bearing condition monitoring extends equipment life and reduces maintenance costs. In mining and mineral processing operations, it monitors SAG mill pinion drives, slurry pump motors, and conveyor drive gearboxes. In packaging and process manufacturing lines, it provides vibration feedback for high-speed rotating equipment where product quality is directly linked to mechanical precision. Across all these applications, the probe’s integration within the 3300 XL architecture ensures that vibration data is not isolated but is contextually integrated with process control data, enabling holistic asset performance management and supporting long-term reliability engineering programs.

Product Compatibility FAQ

Q1: Is the 330851-02-000-070-10-00-05 compatible with both older 3300 Series and current 3300 XL Series monitor racks?
The 330851-02-000-070-10-00-05 is designed and calibrated for the 3300 XL transducer system. While the physical connector and cable format are similar to earlier 3300 Series probes, the calibration coefficients and gap voltage specifications are optimized for 3300 XL proximitor drivers (330180 and 330130 Series). Use with legacy 3300 Series monitors should be validated against the specific monitor module’s input specifications. ZYPLC’s technical team can assist with compatibility verification for mixed-generation rack configurations.

Q2: What installation and commissioning checks are required before integrating this probe into a live protection system?
Prior to energizing the monitor rack, commissioning engineers should verify the probe gap voltage at the proximitor output terminal (target: -10.0 VDC ± 0.5 VDC at 1.27 mm gap), inspect the armored cable for continuity and insulation integrity, confirm the extension cable length matches the proximitor calibration range, and validate alarm and danger setpoints within the System 1 Evolution configuration database. All ZYPLC-supplied units are functionally tested prior to shipment, and test records are available upon request to support commissioning documentation.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for 3300 XL systems?
The warranty terms confirmed during quotation covers manufacturing defects and functional performance under normal operating conditions from the date of shipment. ZYPLC maintains ongoing stock of 330851-02-000-070-10-00-05 units alongside complementary 3300 XL system components — including extension cables, proximitor drivers, monitor modules, and power supplies — to support both emergency replacement and planned maintenance outage procurement. For plants managing long-term 3300 XL installations, ZYPLC offers consignment stock arrangements and priority fulfillment agreements to ensure component availability aligns with maintenance schedules.
