Bently Nevada 330851-02-000-080-50-00-05 Proximity Probe 3300

Bently Nevada 330851-02-000-080-50-00-05 Proximity Probe: Industrial Data Link for 3300 Series Vibration Monitoring Systems

The Bently Nevada 330851-02-000-080-50-00-05 is a high-precision eddy-current proximity probe engineered for the 3300 Series vibration monitoring platform. Designed to deliver continuous, real-time shaft displacement and vibration data, this probe forms the critical sensing node in a broader industrial data chain — connecting rotating machinery directly to control rooms, SCADA systems, and predictive maintenance platforms. In smart factory environments where machine uptime is a strategic asset, the 330851-02-000-080-50-00-05 provides the foundational signal integrity that drives informed decision-making across the entire plant network.

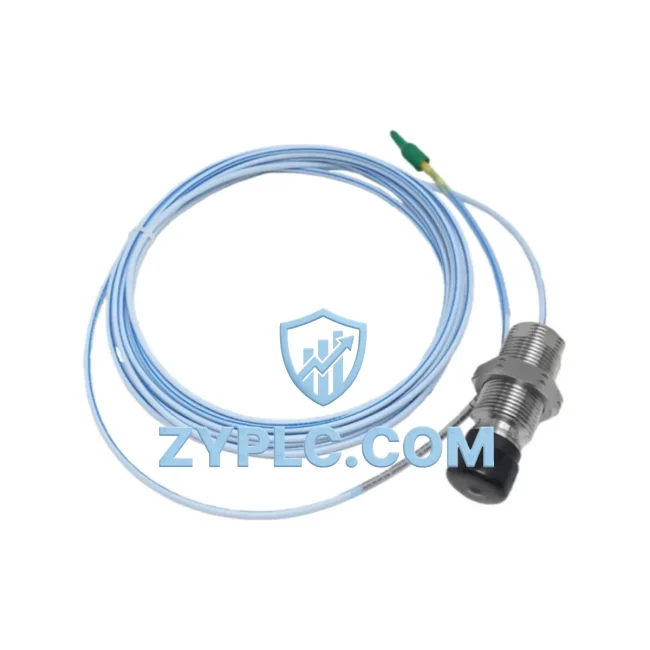

With an 8mm tip diameter, 5-metre extension cable, and a sensitivity of 200 mV/mil (7.87 V/mm), this probe is optimized for non-contact measurement of radial shaft vibration, axial position, and differential expansion on turbines, compressors, pumps, and motors. Its output signal is fully compatible with the Bently Nevada 3300 XL 8mm Proximity Transducer System, enabling seamless integration into existing monitoring architectures without signal conditioning redesign.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the 330851-02-000-080-50-00-05 proximity probe is mounted adjacent to the shaft of a critical rotating asset — a steam turbine, centrifugal compressor, or boiler feed pump. The probe continuously measures the gap between its tip and the shaft surface, converting mechanical displacement into a precise analog voltage signal. This signal is transmitted through the matched extension cable to a Bently Nevada 3300 XL Proximitor Sensor (driver), which conditions and amplifies the output before feeding it into a Bently Nevada 3500 Series Monitoring Rack.

Within the 3500 rack, dedicated I/O modules — such as the 3500/42M Proximitor/Seismic Monitor — digitize the analog signal and apply alarm thresholds for vibration, eccentricity, and position. The rack communicates upstream via Modbus RTU or Ethernet/IP to a plant-level DCS or SCADA platform, such as GE’s System 1 Evolution software, where operators visualize real-time vibration trends, set alert limits, and generate predictive maintenance reports. Simultaneously, the data stream can be routed to an OPC-UA edge gateway — for example, a Moxa MGate MB3480 or similar industrial protocol converter — enabling integration with MES platforms, cloud-based analytics engines, or third-party HMI systems such as Wonderware InTouch or Ignition SCADA.

For multi-machine monitoring architectures, the 330851-02-000-080-50-00-05 operates alongside complementary sensors in the 3300 ecosystem: the Bently Nevada 330180-X-00 Velomitor velocity sensor for high-frequency vibration, the 330130-080-00-00 proximity probe for axial thrust measurement, and the 3300/16 Power Supply module ensuring stable excitation voltage across all transducer channels. In facilities running parallel monitoring on multiple trains, the 3500/22M Transient Data Interface module captures startup and shutdown transient data, feeding it directly into System 1 for rotor dynamic analysis — a workflow that depends entirely on the signal fidelity delivered by probes like the 330851-02-000-080-50-00-05.

Where legacy PLCs — such as Allen-Bradley ControlLogix or Siemens S7-300 — manage auxiliary systems alongside the vibration monitoring rack, the data from the 3500 system is bridged via a Modbus-to-EtherNet/IP gateway, ensuring that vibration alarms are visible on the plant-wide HMI and can trigger automated protective actions, such as initiating a controlled shutdown sequence or activating a spare pump via the PLC’s output module.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Vibration monitoring platforms, DCS controllers, safety instrumented systems, and CMMS databases often operate in silos, preventing maintenance teams from correlating vibration trends with process variables such as flow rate, temperature, or load — the very correlations that enable true predictive maintenance.

The Bently Nevada 330851-02-000-080-50-00-05, when deployed within a properly configured 3300/3500 monitoring architecture, directly addresses this data isolation problem. By providing a high-fidelity analog signal that can be digitized, protocol-converted, and transmitted across plant networks, this probe enables the unification of machine health data with process data in a single SCADA or historian platform. Operators gain a transparent view of production line health — from individual bearing vibration levels to fleet-wide equipment performance — without requiring manual data collection or separate reporting workflows.

Remote diagnostics capabilities are equally significant. With the 3500 rack connected to a plant Ethernet network and System 1 software running on a remote server, vibration engineers can access real-time and historical data from any location, reducing the need for on-site inspections and enabling faster response to developing faults. Alarm notifications can be configured to trigger SMS or email alerts, ensuring that critical vibration exceedances are communicated immediately to the responsible engineer — regardless of shift schedule or physical location.

System scalability is another key advantage. As production capacity expands or new rotating assets are commissioned, additional 330851-series probes and 3500 rack modules can be added to the monitoring network without architectural redesign. The modular nature of the 3300/3500 platform means that a facility can begin with a single machine monitoring point and scale to a plant-wide condition monitoring network covering dozens of critical assets — all sharing a common data infrastructure and SCADA integration layer.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330851-02-000-080-50-00-05 support for SCADA integration?
The probe itself outputs an analog DC voltage signal, which is processed by the 3300 XL Proximitor driver and fed into the 3500 Series monitoring rack. The rack supports Modbus RTU, Modbus TCP, and EtherNet/IP communication to upstream SCADA, DCS, or historian systems. OPC-UA integration is achievable via compatible edge gateways, enabling connectivity to modern IIoT platforms and cloud-based analytics environments.

Q2: How is network stability and signal integrity maintained over long cable runs?
The 330851-02-000-080-50-00-05 is supplied with a matched 5-metre extension cable engineered to maintain the specified sensitivity of 200 mV/mil across the full operating temperature range. The Bently Nevada 3300 XL system is designed for use with matched probe-cable-driver sets, ensuring that impedance characteristics are consistent and that signal attenuation or noise pickup does not compromise measurement accuracy. For installations requiring longer cable runs, Bently Nevada specifies approved extension cable assemblies that preserve system calibration.

Q3: Can this probe be integrated into an existing Allen-Bradley or Siemens PLC-based control system?
Yes. The analog output from the 3300 XL Proximitor driver can be wired directly to an analog input module on an Allen-Bradley ControlLogix, CompactLogix, or Siemens S7-series PLC, providing vibration and position data within the PLC’s I/O scan cycle. Alternatively, the 3500 rack’s Modbus or EtherNet/IP interface can be used to pass digitized vibration data to the PLC or DCS over the plant network, enabling alarm integration and automated protective responses without additional signal conditioning hardware.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All Bently Nevada 330851-02-000-080-50-00-05 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm output sensitivity, cable continuity, and connector integrity. Units are shipped with original or equivalent packaging to prevent transit damage. For technical support or warranty claims, contact ZYPLC directly at [email protected] or +86 19859288691.
