Bently Nevada 330881-16-00-175-00-02 Proximity Transducer for Proxpac XL Systems

Bently Nevada 330881-16-00-175-00-02: Industrial Data Link for Proxpac XL Smart Factory Systems

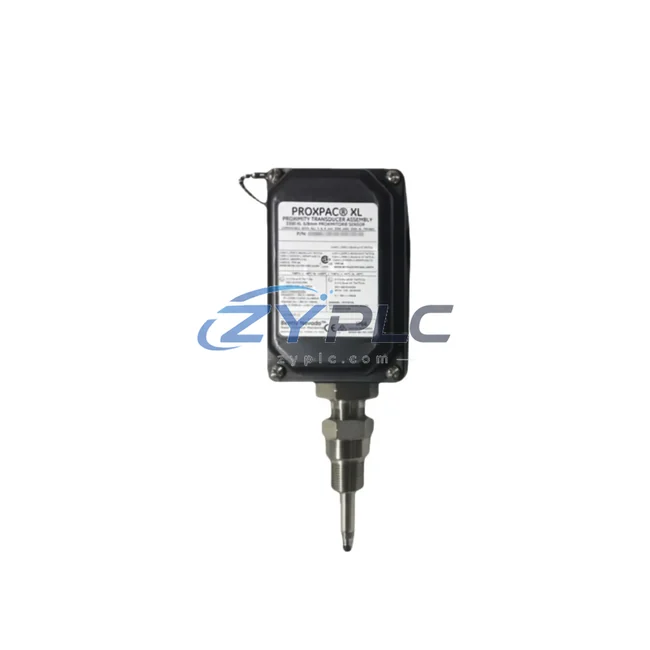

The Bently Nevada 330881-16-00-175-00-02 is a high-precision Proxpac XL Series proximity transducer engineered for continuous vibration and position monitoring in mission-critical industrial environments. Designed to serve as a foundational node in the industrial data chain, this transducer captures real-time shaft displacement, radial vibration, and axial position signals from rotating machinery — feeding clean, conditioned analog data upstream to control systems, SCADA platforms, and condition monitoring networks. In smart factory deployments where data integrity and communication continuity are non-negotiable, the 330881-16-00-175-00-02 delivers the signal fidelity and system compatibility that modern industrial connectivity demands.

With a 175 mm cable length configuration and a 5 mm sensing range, this transducer integrates seamlessly into the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration monitoring platforms in the oil & gas, power generation, and petrochemical industries. The analog output signal (typically –24 VDC bias with a sensitivity of 7.87 V/mm) is directly compatible with the 3500/40M Proximitor I/O Module, enabling real-time data acquisition without signal conditioning gaps. When paired with the 3500/22M Transient Data Interface or the 3500/42M Proximitor Seismic Monitor, the 330881-16-00-175-00-02 forms a complete vibration data pipeline from field sensor to control room dashboard.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the Bently Nevada 330881-16-00-175-00-02 sits at the edge of the data acquisition layer — converting mechanical shaft movement into a precise analog voltage signal that travels through the Proxpac XL cable assembly to the Bently Nevada 3500/20 Rack Power Supply, which provides the regulated –24 VDC excitation required for stable transducer operation. From there, the conditioned signal enters the 3500/40M Proximitor I/O Module, where it is digitized and processed against configurable alert and danger thresholds.

The digitized vibration data is then routed through the 3500/22M Transient Data Interface, which captures high-resolution waveform data during startup, shutdown, and trip events — critical for root cause analysis and predictive maintenance workflows. This data stream feeds directly into Bently Nevada System 1 Condition Monitoring Software, where operators can visualize Bode plots, orbit plots, and trend data in real time. System 1 acts as the SCADA-layer bridge, forwarding processed machinery health data via Modbus TCP or OPC-UA to plant-level DCS platforms such as Honeywell Experion or Emerson DeltaV, enabling centralized alarm management and historian logging.

For facilities running mixed-protocol environments, the 3500/92 Communication Gateway Module enables protocol translation between the 3500 rack’s internal data bus and external Ethernet-based networks — ensuring that vibration data from the 330881-16-00-175-00-02 reaches HMI panels, remote engineering workstations, and cloud-based analytics platforms without data loss or latency spikes. In turbine protection applications, the transducer signal is also cross-referenced with outputs from the Bently Nevada 330130 Proximitor Sensor and 330180 Proximity Transducer System to provide redundant shaft position confirmation — a requirement in API 670-compliant machinery protection systems.

At the field level, the 330881-16-00-175-00-02 is typically installed alongside Bently Nevada 330500 Velocity Transducers and 330900 Accelerometers to build a multi-parameter vibration monitoring node. This multi-sensor architecture feeds a richer dataset into the condition monitoring pipeline, enabling the System 1 software to perform advanced diagnostics such as bearing defect frequency analysis, rotor imbalance detection, and misalignment trending — all without manual data collection or site visits.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machinery health data across incompatible systems. Legacy vibration monitoring equipment often operates in isolation — generating analog signals that never reach the plant’s DCS or SCADA historian, leaving maintenance teams dependent on manual rounds and reactive repair strategies. The Bently Nevada 330881-16-00-175-00-02, when deployed within the 3500 Series framework, directly addresses this data isolation problem.

By standardizing signal output through the Proxpac XL interface and routing data through the 3500 rack’s communication modules, the transducer enables seamless integration with plant-wide data infrastructure. Protocol inconsistencies between field devices and control systems are resolved at the 3500/92 gateway layer, where analog vibration signals are translated into Modbus, OPC-UA, or Ethernet/IP packets that any modern DCS, SCADA, or MES platform can consume. This eliminates the need for custom signal conditioning hardware and reduces integration engineering time significantly.

Remote monitoring becomes fully viable once the 330881-16-00-175-00-02 is networked through the 3500 system. Maintenance engineers can access live vibration waveforms, historical trend data, and alarm logs from any location with network access — enabling remote diagnostics, predictive maintenance scheduling, and condition-based maintenance programs that reduce unplanned downtime. Production line transparency improves as machinery health KPIs are surfaced in real time on HMI dashboards and SCADA overview screens, giving operations teams the visibility they need to make informed decisions before equipment failures occur.

System scalability is another key advantage. The modular architecture of the 3500 rack allows additional I/O modules to be added as monitoring requirements grow — supporting expansion from a single machine train to a plant-wide condition monitoring network without replacing existing transducer infrastructure. Every Bently Nevada 330881-16-00-175-00-02 shipped from our inventory has been functionally tested prior to dispatch and is backed by a warranty terms confirmed during quotation, ensuring reliable performance from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 system support when using the 330881-16-00-175-00-02 transducer?
The 330881-16-00-175-00-02 outputs a standard analog DC voltage signal that is processed by the 3500 rack. The 3500/92 Communication Gateway Module supports Modbus RTU, Modbus TCP, and OPC-UA, enabling integration with virtually any SCADA, DCS, or HMI platform in use today. Ethernet/IP compatibility is also available depending on the gateway firmware version.

Q2: How is network stability and signal integrity maintained over long cable runs?
The Proxpac XL cable system used with the 330881-16-00-175-00-02 is engineered for low-capacitance, shielded transmission that minimizes signal attenuation and electromagnetic interference over the specified cable length. The –24 VDC bias supply from the 3500/20 rack ensures consistent transducer excitation, and the 3500/40M I/O module performs real-time signal validation — flagging open-circuit or short-circuit faults before they can corrupt the data stream.

Q3: Can this transducer be integrated into an existing SCADA or HMI system without replacing the current control architecture?
Yes. The 3500 Series is designed for non-disruptive integration into existing plant networks. The 3500/92 gateway translates the rack’s internal data into standard industrial protocols, allowing the 330881-16-00-175-00-02’s vibration data to appear as a standard data source in Wonderware, iFIX, Ignition, or any OPC-UA-compatible SCADA platform — without modifying existing PLC programs or DCS configurations.

Q4: What does the warranty terms confirmed during quotation cover, and has the unit been tested before shipping?
Every Bently Nevada 330881-16-00-175-00-02 in our inventory undergoes functional verification testing prior to shipment, confirming output sensitivity, cable continuity, and connector integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides pre-sale application support and post-sale troubleshooting assistance to ensure successful commissioning in your specific installation environment.
