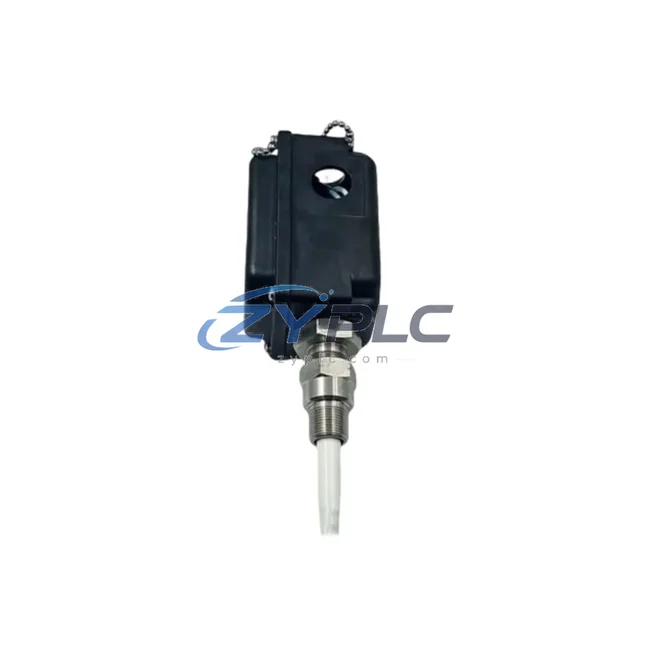

Bently Nevada 330881-28-00-110-03-02 ProxPac XL Proximity Transducer

Bently Nevada 330881-28-00-110-03-02 ProxPac XL: Industrial Data Link for Rotating Machinery Monitoring

The Bently Nevada 330881-28-00-110-03-02 is a high-performance ProxPac XL Proximity Transducer Assembly engineered for continuous, real-time vibration and position monitoring of rotating machinery in demanding industrial environments. As a core sensing node in the Bently Nevada 3500 Series machinery protection system, this transducer assembly forms the critical first link in the industrial data chain — converting mechanical shaft displacement into precise analog signals that feed directly into protection monitors, SCADA platforms, and plant-wide condition monitoring networks.

Designed for integration across the full spectrum of smart factory architectures, the 330881-28-00-110-03-02 delivers reliable eddy-current proximity sensing with exceptional signal integrity, enabling seamless data flow from field-level rotating assets through to control room dashboards and enterprise historian systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the 330881-28-00-110-03-02 ProxPac XL sits at the very origin of the condition monitoring data pipeline. The transducer continuously measures shaft radial vibration and gap voltage, transmitting analog signals through its integrated extension cable to the Bently Nevada 3500/40M Proximitor Monitor housed within the 3500 Series rack. This monitor digitizes the raw proximity signal and makes it available to the broader plant network.

Within the 3500 rack architecture, the 3500/20 Rack Interface Module acts as the communication gateway, bridging the analog monitoring data to Modbus RTU or Ethernet-based protocols. From here, a Bently Nevada 3500/92 Communication Gateway or a third-party industrial protocol converter — such as a Moxa NPort or HMS Anybus gateway — can forward real-time vibration data to the plant DCS or SCADA server. Operators monitoring a GE iFIX or Wonderware System Platform SCADA HMI can then visualize shaft orbit plots, trend data, and alarm states in real time.

For plants running Bently Nevada System 1 Evolution software, the 330881-28-00-110-03-02 feeds directly into the asset performance management layer, where vibration spectra, gap voltage trends, and alarm histories are stored in the historian and made available for predictive maintenance analytics. Integration with OSIsoft PI historian or Aspentech Mtell platforms is achieved through the 3500 rack’s Ethernet output, enabling enterprise-wide condition monitoring without additional signal conditioning hardware.

In turbine protection applications, the ProxPac XL transducer works in tandem with Bently Nevada 330130 Velomitor seismic sensors and 3500/15 Power Supply Modules to form a complete machinery protection loop. The combined signal chain — from proximity transducer through monitor rack to SCADA — ensures that any abnormal shaft displacement triggers an immediate alarm at the HMI and, if configured, an automatic trip signal to the turbine control PLC, such as a GE Mark VIe or Emerson Ovation DCS controller.

For remote sites or unmanned substations, the analog output from the 3500 rack can be connected to an edge gateway device — such as a Moxa UC-8112 or Advantech WISE-5000 — enabling 4G/LTE or fiber-optic transmission of vibration data to a central monitoring center. This architecture supports remote diagnostics, alarm notification via SMS or email, and over-the-air configuration updates, all without requiring on-site personnel.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is the fragmentation of machinery health data across incompatible systems. Legacy rotating machinery — compressors, steam turbines, boiler feed pumps — often uses proprietary analog monitoring systems that cannot communicate directly with modern DCS or SCADA platforms. The result is data isolation: critical vibration and displacement information remains locked inside standalone monitors, invisible to plant-wide condition monitoring and predictive maintenance programs.

The Bently Nevada 330881-28-00-110-03-02 ProxPac XL, when deployed within the 3500 Series rack system, directly addresses this challenge. By standardizing on the Bently Nevada analog signal format and leveraging the 3500 rack’s built-in communication gateway options, plant engineers can bridge the gap between field-level proximity sensors and enterprise data systems. Protocol conversion from the proprietary Bently Nevada signal format to Modbus TCP, OPC-UA, or Ethernet/IP is handled transparently by the rack’s communication modules, eliminating the need for custom signal conditioning or middleware.

For plants undergoing digital transformation, the ProxPac XL assembly provides a future-proof sensing foundation. Its compatibility with Bently Nevada System 1 software means that vibration data can be contextualized with process variables — temperature, pressure, flow — from the DCS, enabling true cross-domain analytics. Alarm rationalization, trip setpoint management, and historical trend analysis can all be performed from a single software platform, reducing the engineering effort required to maintain machinery protection systems across multiple asset classes.

Remote monitoring capability is another key benefit. With the 330881-28-00-110-03-02 integrated into a networked 3500 rack, maintenance engineers can access real-time shaft vibration data, review alarm histories, and perform diagnostic analysis from any location with network access. This eliminates the need for routine physical inspections of remote or hazardous machinery installations, reducing both operational cost and safety risk. All units supplied by ZYPLC are pre-tested prior to shipment and covered by a warranty terms confirmed during quotation, ensuring confidence in every deployment.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 system support when using the 330881-28-00-110-03-02 transducer?
The 3500 Series rack, which hosts the monitors connected to the 330881-28-00-110-03-02 ProxPac XL transducer, supports Modbus RTU, Modbus TCP/IP, and Ethernet communication via the 3500/92 Communication Gateway module. This allows vibration and position data to be transmitted to DCS, SCADA, and historian platforms with minimal latency, typically under 100 ms for alarm-critical data paths.

Q2: Is the 330881-28-00-110-03-02 compatible with non-Bently Nevada monitoring systems?
Yes. The ProxPac XL assembly outputs a standard analog voltage signal (–24 VDC bias format) that is compatible with any monitoring system designed to accept Bently Nevada-format proximity inputs. Third-party monitors from Emerson, Metrix, or custom PLC analog input modules can be configured to accept this signal, provided the input impedance and voltage range specifications are matched correctly.

Q3: How does network stability affect vibration monitoring accuracy with this transducer?
The 330881-28-00-110-03-02 outputs a continuous analog signal that is independent of network communication stability. Signal integrity is maintained at the hardware level between the transducer and the monitor. Network communication (Modbus, Ethernet) only affects the transmission of processed data to SCADA or historian systems, not the primary protection function. This architecture ensures that machinery protection remains active even during network outages.

Q4: What does the warranty terms confirmed during quotation from ZYPLC cover for this product?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects, signal output failures, and connector integrity issues under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify gap voltage output, cable continuity, and connector seating. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination, minimizing downtime for your machinery protection system.
