Bently Nevada 330881-28-05-060-00-02 Proximity Transducer Assembly for ProxPac XL Systems

Bently Nevada 330881-28-05-060-00-02: Industrial Data Link for ProxPac XL Smart Factory Connectivity

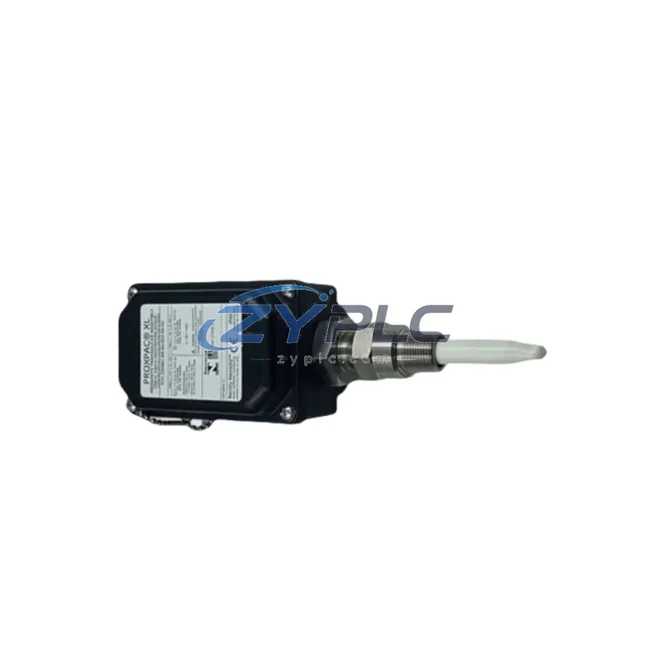

The Bently Nevada 330881-28-05-060-00-02 is a high-precision ProxPac XL Proximity Transducer Assembly engineered for continuous vibration and radial position monitoring in mission-critical rotating machinery environments. As a core sensing node in the industrial data chain, this transducer converts mechanical displacement signals into reliable analog outputs that feed directly into Bently Nevada 3500 Series rack-based monitoring systems, enabling real-time condition data to flow seamlessly from field devices through to SCADA platforms and plant-level asset management software.

In modern smart factory architectures, the integrity of the data link between field sensors and control systems determines the quality of every downstream decision. The 330881-28-05-060-00-02 is designed to anchor that link at the signal acquisition layer — delivering stable, low-noise eddy-current proximity measurements that serve as the foundation for vibration trend analysis, alarm threshold management, and predictive maintenance workflows across turbines, compressors, pumps, and gearboxes.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330881-28-05-060-00-02 operates as the primary signal source in a layered industrial connectivity architecture. At the field level, the ProxPac XL transducer captures shaft displacement and vibration data from rotating equipment and transmits analog signals through matched extension cables to the Bently Nevada 3500/42M Proximitor I/O module housed in the 3500 Series rack. The rack’s internal backplane routes conditioned signals to the 3500/22M Transient Data Interface, which buffers high-resolution waveform data for transient event capture and startup/shutdown analysis.

From the 3500 rack, processed vibration parameters — including overall vibration amplitude, 1X and 2X vector components, and gap voltage — are transmitted via the 3500/92 Communication Gateway Module using Modbus TCP/IP or OPC-UA to plant-level SCADA systems such as GE iFIX, Wonderware System Platform, or Emerson DeltaV. Operators monitoring the Bently Nevada System 1 asset management platform receive continuous trend data, enabling early detection of bearing wear, rotor imbalance, and misalignment before they escalate to unplanned shutdowns.

In distributed plant topologies, the analog output from the 330881-28-05-060-00-02 can also be routed through Pepperl+Fuchs KFD2-series signal conditioners or Phoenix Contact MACX analog input modules to interface with third-party DCS platforms including Honeywell Experion PKS and ABB System 800xA. For facilities integrating vibration data into broader IIoT frameworks, edge gateways such as the Moxa MGate MB3660 or Advantech ADAM-6717 provide protocol bridging from Modbus RTU to MQTT or OPC-UA, enabling the 330881-28-05-060-00-02’s data stream to reach cloud-based analytics platforms and digital twin environments.

Remote I/O expansion using Bently Nevada TDXnet distributed I/O nodes allows the transducer network to scale across large compressor trains or multi-shaft turbine strings without additional cabling infrastructure, while Allen-Bradley 1756-IF16 analog input cards in ControlLogix platforms can accept conditioned signals for integration into Rockwell Automation’s PlantPAx DCS environment. HMI visualization is typically handled by Siemens SIMATIC TP1500 or Weintek cMT Series panels connected via Ethernet to the SCADA layer, providing operators with real-time vibration trend displays, alarm annunciation, and historical data review at the machine skid level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery protection is the fragmentation of condition monitoring data across incompatible systems. Legacy plants often operate Bently Nevada 3300 or 7200 Series monitors alongside newer 3500 racks, with vibration data trapped in proprietary formats that cannot be accessed by plant-wide SCADA or ERP systems. The 330881-28-05-060-00-02, when deployed as part of a standardized ProxPac XL sensing network, directly addresses this data isolation problem by providing a consistent, high-quality analog signal that can be digitized and transmitted through modern communication gateways.

Protocol unification is achieved through the 3500 rack’s gateway modules, which translate raw proximity measurements into Modbus TCP/IP or OPC-UA data objects consumable by any standards-compliant SCADA or historian platform. This eliminates the need for manual data transcription from local displays and enables automated alarm escalation workflows — for example, triggering a maintenance work order in SAP PM when vibration amplitude exceeds a configurable threshold, or sending an SMS alert via the SCADA alarm management system when gap voltage indicates probe fouling or target surface damage.

For production line transparency, the continuous data stream from the 330881-28-05-060-00-02 feeds vibration KPI dashboards that allow plant managers to track machinery health trends across shifts, correlate vibration events with process upsets, and benchmark equipment performance against OEM baseline specifications. Remote diagnostic capability is further enhanced by secure VPN access to the SCADA historian, allowing Bently Nevada field service engineers or third-party reliability consultants to review waveform data and provide remote troubleshooting support without requiring on-site visits.

System expansion is straightforward: additional ProxPac XL transducers can be added to existing 3500 racks using available I/O slots, and TDXnet distributed nodes extend the monitoring network to remote machine trains without gateway reconfiguration. Every unit shipped undergoes pre-delivery functional testing to verify output sensitivity, linearity, and cable continuity, and is covered by a warranty terms confirmed during quotation against manufacturing defects — ensuring confidence in both the hardware and the data it delivers.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330881-28-05-060-00-02 support for SCADA integration?
The 330881-28-05-060-00-02 outputs an analog signal that is processed by the Bently Nevada 3500 Series rack. The 3500/92 Communication Gateway Module then transmits data using Modbus RTU, Modbus TCP/IP, or OPC-UA, making it compatible with virtually all major SCADA and DCS platforms including GE iFIX, Wonderware, Emerson DeltaV, Honeywell Experion, and ABB System 800xA.

Q2: Can this transducer be integrated into a Rockwell Automation or Siemens control environment?
Yes. Conditioned analog outputs from the 3500 rack can be wired to Allen-Bradley 1756-IF16 analog input modules in ControlLogix systems or to Siemens ET 200SP analog input cards, enabling vibration data to be processed within PlantPAx or TIA Portal environments. OPC-UA connectivity via the 3500 gateway also supports direct integration with Siemens SIMATIC WinCC and Rockwell FactoryTalk Historian.

Q3: How is network stability and signal integrity maintained over long cable runs?
The ProxPac XL system uses matched extension cables with defined characteristic impedance to minimize signal attenuation and electromagnetic interference over distances up to 9 meters (standard) or longer with extension cable configurations. The eddy-current sensing principle is inherently immune to contamination from oil, dust, and moisture, ensuring stable gap voltage readings even in harsh industrial environments. For installations requiring longer transmission distances, signal conditioners such as the Pepperl+Fuchs KFD2-VR4 can be used to re-amplify and isolate the analog signal before transmission to the monitoring rack.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330881-28-05-060-00-02 unit undergoes pre-shipment functional verification including output sensitivity check (typically -7.87 V/mm), linearity test across the measurement range, and cable continuity verification. The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship from the date of shipment. Units found to be defective within the warranty period are repaired or replaced at no charge. Detailed test records are available upon request for quality-critical applications.
