Bently Nevada 330881-28-05-080-00-02 Proximity Transducer Assembly for ProxPac XL Systems

Bently Nevada 330881-28-05-080-00-02: Industrial Data Link for ProxPac XL Systems

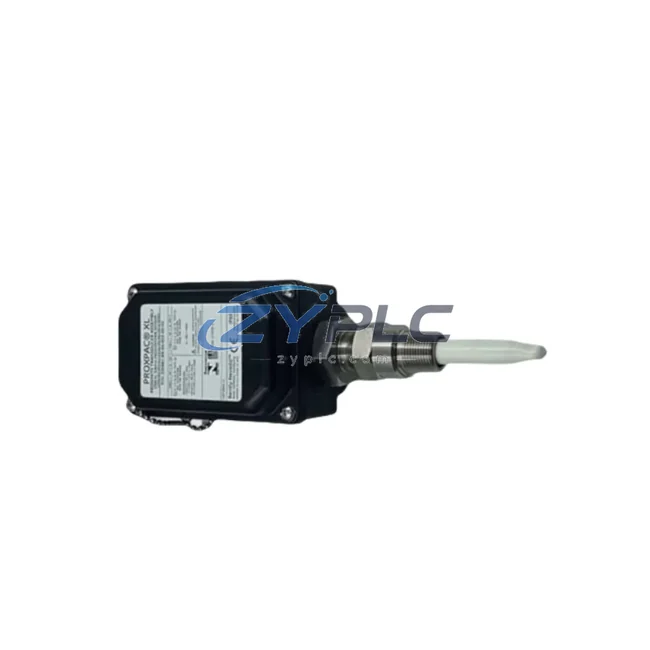

The Bently Nevada 330881-28-05-080-00-02 is a high-performance ProxPac XL Proximity Transducer Assembly engineered for continuous, real-time vibration and position monitoring in critical rotating machinery environments. Leveraging eddy-current sensing technology, this transducer assembly forms the foundational signal acquisition node in a plant-wide industrial data chain — converting mechanical displacement and shaft vibration into precise analog signals that feed directly into Bently Nevada’s 3500 Series Machinery Protection System, SCADA platforms, and DCS control networks. In smart factory deployments, the 330881-28-05-080-00-02 is not merely a sensor; it is the first link in a continuous data pipeline that spans from field-level signal capture all the way to enterprise-level asset health dashboards.

Designed for demanding industrial environments including turbines, compressors, pumps, and gearboxes, this ProxPac XL assembly integrates seamlessly with Bently Nevada’s 3500/42M Proximitor I/O Module, enabling direct signal conditioning and transmission over the plant’s instrumentation network. The transducer outputs a linear voltage signal proportional to the gap between the probe tip and the target shaft, providing sub-micron resolution that is critical for early fault detection, imbalance trending, and predictive maintenance scheduling. When paired with the Bently Nevada 3500/22M Transient Data Interface or the 3500/92 Communication Gateway Module, the 330881-28-05-080-00-02 enables full integration with Modbus TCP, PROFIBUS DP, and OPC-UA protocols — bridging the gap between field instrumentation and upper-level SCADA/HMI systems such as GE’s System 1 Optimization and Diagnostic Software.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 330881-28-05-080-00-02 serves as the primary signal source for a multi-layer industrial data flow. At the field level, the ProxPac XL probe assembly is mounted adjacent to the rotating shaft, continuously measuring radial vibration and axial displacement. The analog output is routed through the Bently Nevada 3500/42M Proximitor I/O Module, which conditions the signal and feeds it into the Bently Nevada 3500 Rack — the central machinery protection platform. Within the rack, the 3500/22M Transient Data Interface captures high-speed transient events such as startup and shutdown waveforms, storing them for post-event analysis.

For protocol conversion and network uplink, the Bently Nevada 3500/92 Communication Gateway Module translates the rack’s internal data bus into Modbus TCP or PROFIBUS DP frames, enabling direct communication with plant-level SCADA systems and DCS controllers such as the Honeywell Experion PKS or ABB System 800xA. At the HMI layer, operators interact with real-time vibration trends, alarm setpoints, and historical waveform data through GE System 1 Software, which aggregates data from multiple 3500 racks across the facility. For edge computing and remote diagnostics, the transducer data can be forwarded via an industrial edge gateway (such as the Moxa UC-8112 or similar IIoT edge controller) to cloud-based asset performance management platforms, enabling remote engineers to monitor bearing health, rotor dynamics, and seal wear without physical site access.

In broader plant integration scenarios, the 330881-28-05-080-00-02 works alongside Bently Nevada 330130 Series 3300 XL 8mm Proximity Probes for redundant measurement, and is often deployed in conjunction with Bently Nevada 330180 Series Velomitor Piezo-Velocity Sensors for combined vibration and velocity monitoring on the same machine train. The complete data chain — from eddy-current signal acquisition through protocol conversion, network transmission, SCADA visualization, and remote alarm notification — ensures zero data isolation between the rotating equipment and the plant’s central control room.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible systems. Legacy vibration monitoring equipment often operates on proprietary analog buses that cannot communicate directly with modern Ethernet-based SCADA or DCS platforms. The Bently Nevada 330881-28-05-080-00-02, when integrated within the 3500 Series architecture, directly addresses this problem by providing a standardized, protocol-agnostic signal path from the field sensor to the control network.

Through the 3500/92 Communication Gateway, the transducer’s data becomes accessible over Modbus TCP and OPC-UA — two of the most widely supported industrial communication standards — eliminating the need for custom signal converters or middleware. This means that vibration data from a critical compressor train can be displayed on the same HMI screen as process variables from a Siemens S7-1500 PLC or flow data from a Yokogawa CENTUM VP DCS, creating a unified operational picture across the entire production line. For facilities pursuing IIoT and Industry 4.0 roadmaps, this connectivity is foundational: it enables predictive maintenance algorithms, digital twin synchronization, and AI-driven anomaly detection to operate on live, high-fidelity vibration data rather than periodic manual readings.

Remote monitoring capability is equally critical. With the 330881-28-05-080-00-02 integrated into a networked 3500 rack, maintenance engineers can access real-time gap voltage trends, alarm histories, and waveform snapshots from any location via secure VPN or cloud dashboard — reducing the need for on-site inspections, shortening mean time to repair (MTTR), and supporting 24/7 remote diagnostic services. All units supplied by ZYPLC undergo pre-shipment functional testing to verify signal linearity, sensitivity, and cable integrity, and are backed by a warranty terms confirmed during quotation covering manufacturing defects and performance deviations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330881-28-05-080-00-02 support when integrated with the 3500 Series rack?
The transducer itself outputs a standard analog voltage signal. When connected to the 3500 rack via the 3500/42M I/O module and the 3500/92 Communication Gateway, the system supports Modbus TCP, PROFIBUS DP, and OPC-UA, enabling direct integration with SCADA, DCS, and HMI platforms without additional protocol converters.

Q2: How does this transducer assembly ensure network stability and data continuity in high-vibration environments?
The ProxPac XL design uses a ruggedized coaxial cable assembly with armored jacketing and secure connector locking to maintain signal integrity in high-vibration, high-temperature plant environments. The eddy-current sensing principle is inherently immune to electromagnetic interference (EMI), ensuring stable, noise-free signal transmission even in proximity to large motors, VFDs, and high-voltage switchgear.

Q3: Can the 330881-28-05-080-00-02 be used with third-party SCADA or DCS systems outside the Bently Nevada ecosystem?
Yes. Via the 3500/92 Communication Gateway Module, the transducer data is exposed over standard industrial protocols (Modbus TCP, OPC-UA), making it compatible with any SCADA or DCS platform that supports these standards, including Honeywell Experion, ABB System 800xA, Siemens WinCC, and Wonderware System Platform.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
Every 330881-28-05-080-00-02 unit supplied by ZYPLC is functionally tested prior to shipment, verifying probe sensitivity (V/mm), cable continuity, connector integrity, and driver output linearity. The warranty terms confirmed during quotation covers all manufacturing defects, signal performance deviations, and component failures under normal operating conditions. Expedited DHL/FedEx global shipping is available with full tracking.
