Bently Nevada 330881-28-05-114-03-02 Proximity Transducer Assembly for ProxPac XL Systems

Bently Nevada 330881-28-05-114-03-02: Industrial Data Link for ProxPac XL Smart Factory Connectivity

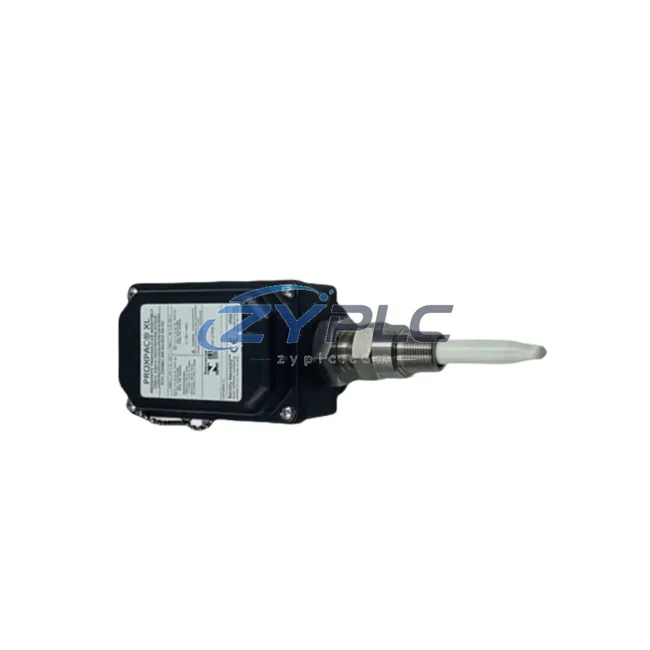

The Bently Nevada 330881-28-05-114-03-02 is a high-precision ProxPac XL Proximity Transducer Assembly engineered for continuous, real-time vibration and displacement monitoring in mission-critical industrial environments. Built on Bently Nevada’s proven eddy-current sensing technology, this transducer serves as a foundational node in the industrial data chain — converting mechanical motion into reliable analog signals that feed directly into condition monitoring systems, SCADA platforms, and plant-wide asset management networks.

In modern smart factory architectures, the integrity of the data link between rotating machinery and the control layer is non-negotiable. The 330881-28-05-114-03-02 is designed to eliminate signal ambiguity at the source, delivering stable, low-noise output that integrates seamlessly with Bently Nevada 3500 Series Machinery Protection Systems, enabling plant engineers to monitor shaft vibration, axial position, and differential expansion with sub-micron resolution across turbines, compressors, pumps, and motors.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330881-28-05-114-03-02 operates at the very front end of the industrial data pipeline. Mounted adjacent to rotating shafts or thrust collars, the ProxPac XL transducer continuously measures gap voltage changes caused by shaft movement, transmitting a conditioned analog signal through matched extension cables — typically the Bently Nevada 330130 or 330180 Series Extension Cables — to the proximitor/driver module housed within the Bently Nevada 3500/42M or 3500/40M Proximitor I/O Module.

From the 3500 rack, digitized vibration data is passed via the Bently Nevada 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC-UA protocols. This gateway bridges the machinery protection layer to plant-level SCADA systems — such as GE Proficy iFIX, Wonderware System Platform, or Siemens WinCC — enabling operators to visualize real-time shaft vibration trends, set alarm thresholds, and trigger automated shutdown sequences without manual intervention.

For facilities running distributed control architectures, the 3500 rack’s digital output can be routed through Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers via hardwired relay contacts or fieldbus interfaces, integrating machinery protection data into the broader process control loop. Remote I/O panels equipped with Phoenix Contact Axioline or Beckhoff EtherCAT terminals can further extend the data reach to edge computing nodes, where Bently Nevada System 1 Evolution software aggregates multi-machine vibration datasets for predictive maintenance analytics.

At the HMI layer, operators interact with live vibration waveforms, orbit plots, and Bode diagrams rendered by Bently Nevada System 1 or third-party SCADA dashboards, receiving alarm notifications and diagnostic reports that trace directly back to the raw signal generated by the 330881-28-05-114-03-02 transducer. This end-to-end data chain — from eddy-current gap measurement to enterprise asset management — is what makes the ProxPac XL assembly a critical connectivity component in any smart factory rotating machinery program.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machinery health data across incompatible monitoring systems. Legacy vibration sensors often output proprietary analog signals that cannot be directly consumed by modern DCS or SCADA platforms, creating data silos that prevent plant-wide visibility and delay maintenance decisions.

The Bently Nevada 330881-28-05-114-03-02, when deployed within the 3500 Series rack infrastructure, directly addresses this problem. The 3500/92 Communication Gateway translates the transducer’s analog output into standard industrial protocols — Modbus TCP/IP and OPC-UA — making vibration data universally accessible to any SCADA, historian, or MES platform on the plant network. This eliminates the need for custom signal converters or middleware, reducing integration complexity and potential points of failure.

For remote monitoring applications, the OPC-UA interface enables secure, encrypted data transmission over Ethernet to cloud-based asset management platforms, supporting remote diagnostics without requiring on-site personnel. Alarm relay outputs from the 3500 rack can be wired directly to plant DCS hardwired I/O, ensuring that critical machinery protection functions remain operational even during network interruptions — a key requirement for safety-instrumented systems in petrochemical, power generation, and heavy manufacturing environments.

Production line transparency is further enhanced by integrating the 330881-28-05-114-03-02 data stream into overall equipment effectiveness (OEE) dashboards, where vibration health scores are correlated with production throughput and downtime events. This transforms raw sensor data into actionable business intelligence, supporting the transition from reactive to predictive maintenance strategies across the entire plant asset base.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330881-28-05-114-03-02 support for SCADA integration?
The 330881-28-05-114-03-02 transducer outputs a standard analog signal (mV/mil or mV/µm) to the Bently Nevada 3500 rack. The 3500/92 Communication Gateway Module then converts this data to Modbus RTU, Modbus TCP/IP, and OPC-UA, enabling direct integration with any SCADA, DCS, or historian platform that supports these standard industrial protocols.

Q2: What is the signal transmission latency, and is it suitable for real-time machinery protection?
The eddy-current sensing chain from the 330881-28-05-114-03-02 to the 3500 rack operates with sub-millisecond analog signal latency, making it fully suitable for real-time machinery protection applications. The 3500 system processes vibration data and can trigger relay-based shutdown outputs within milliseconds of detecting a threshold violation, meeting the response time requirements of API 670 machinery protection standards.

Q3: Can this transducer assembly be integrated into existing PLC or DCS control systems without replacing the entire monitoring rack?
Yes. The Bently Nevada 3500 rack provides both hardwired relay outputs and digital communication interfaces, allowing the 330881-28-05-114-03-02 data to be integrated into Allen-Bradley, Siemens, ABB, or Honeywell control systems without replacing existing infrastructure. The relay contacts can be wired to DCS digital input cards, while the Modbus/OPC-UA interface provides process data to the control system’s historian or HMI layer.

Q4: What warranty and pre-shipment testing does the 330881-28-05-114-03-02 carry?
Every Bently Nevada 330881-28-05-114-03-02 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify output sensitivity, linearity, and cable assembly integrity. Units are sourced from verified supply channels and shipped with full traceability documentation. Availability is confirmed via RFQ for shipment arranged after confirmation; lead times for additional quantities are confirmed at the time of RFQ.
