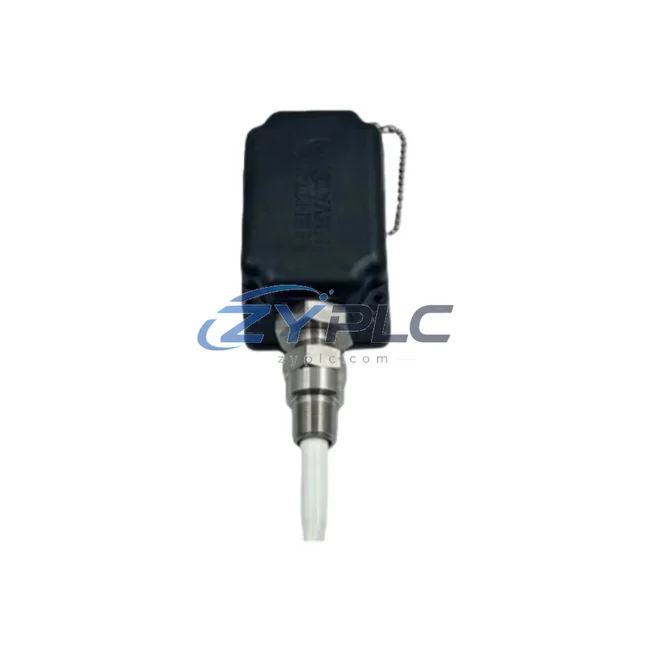

The Bently Nevada 330881-50-00-CN is an eddy-current proximity transducer engineered for seamless system integration within the 3300 XL Series continuous machinery monitoring architecture. Designed to deliver high-resolution, non-contact displacement and vibration measurements, this transducer serves as a foundational sensing element across the full control system hierarchy — from field-level signal acquisition through to supervisory condition monitoring and protective shutdown logic. Its role within a layered automation system is not merely that of a standalone sensor; rather, it functions as a precision data source whose output propagates through multiple system layers, enabling coordinated machinery protection, predictive maintenance, and real-time process optimization.

In modern industrial control architectures, the integrity of the sensing layer directly determines the reliability of every upstream decision. The 330881-50-00-CN is calibrated to interface directly with the Bently Nevada 3300 XL proximitor/seismic transducer system, ensuring that signal conditioning, gap voltage output, and frequency response characteristics are fully matched to the monitoring system’s input specifications. This native compatibility eliminates signal chain mismatches that can introduce measurement uncertainty, reduce alarm accuracy, or compromise protective relay response times — all critical concerns in high-availability plant environments.

Backed by a warranty terms confirmed during quotation and verified through functional testing prior to shipment, this unit is available for immediate deployment in new installations, system expansions, or direct replacement of degraded field sensors. Global logistics support ensures rapid delivery to manufacturing facilities, power generation plants, petrochemical complexes, water treatment stations, mining operations, and metallurgical processing lines worldwide.

Product Specification Table

System Compatibility Notes

The 330881-50-00-CN achieves its full value when considered within the broader context of a coordinated machinery protection and condition monitoring architecture. At the field level, the transducer is paired with a compatible Bently Nevada 330180 proximitor/seismic transducer or a 3300 XL 8mm proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal is then routed via shielded, impedance-matched cabling to the Bently Nevada 3500/40M proximitor I/O module housed within the 3500 Series rack — a modular, 19-inch rack-mount monitoring system that supports up to 16 channels of vibration, position, and speed measurement per chassis.

Within the rack architecture, the I/O module interfaces with the Bently Nevada 3500/01 rack interface module, which manages communication between the monitoring rack and the plant’s distributed control system (DCS) or safety instrumented system (SIS) via Modbus RTU, Modbus TCP/IP, or FOUNDATION Fieldbus protocols. This communication layer ensures that vibration alarm states, gap voltage trends, and transducer health diagnostics are continuously available to the plant-wide SCADA or historian platform — enabling operators to correlate machinery condition data with process variables such as load, temperature, and flow rate.

For redundancy-critical applications — such as steam turbine protection in power generation or centrifugal compressor monitoring in LNG processing — the 330881-50-00-CN is typically deployed in dual-transducer configurations, with each transducer mounted 90° apart on the bearing journal to provide XY vibration vector data. This configuration, when combined with the Bently Nevada 3500/42M four-channel position monitor and a 3500/15 power supply module with redundant AC/DC input capability, delivers a fully fault-tolerant sensing and monitoring subsystem capable of sustaining protective function through single-point hardware failures.

At the human-machine interface layer, vibration trend data from the 330881-50-00-CN feeds into System 1 Evolution condition monitoring software, where machinery specialists can perform orbit plot analysis, spectrum analysis, and Bode plot trending to identify developing faults such as rotor imbalance, misalignment, oil whirl, or bearing wear — often weeks before a failure event would trigger a protective shutdown. Integration with Bently Nevada TDXnet or third-party historian platforms further extends the data lifecycle for long-term reliability engineering and maintenance planning.

At the execution layer, alarm outputs from the 3500 Series rack are wired to plant safety relay systems or DCS interlock logic, enabling automated protective actions — including turbine trip, compressor unload, or pump isolation — based on vibration amplitude thresholds defined in accordance with ISO 7919 and ISO 10816 machinery vibration standards.

Industrial Application Notes

Power Generation: In steam and gas turbine protection systems, the 330881-50-00-CN provides continuous radial vibration monitoring at journal bearings, feeding protective relay logic that can initiate turbine trip within milliseconds of exceeding danger-level vibration thresholds. Its compatibility with the 3500 Series rack ensures seamless integration into existing plant protection architectures without requiring signal conditioning modifications.

Petrochemical & LNG Processing: Centrifugal compressor trains in ethylene, ammonia, and LNG facilities rely on proximity transducer arrays to monitor rotor dynamics under variable load conditions. The 330881-50-00-CN’s wide operating temperature range and robust construction make it suitable for installation in hazardous area enclosures, where it supports both API 670 machinery protection requirements and continuous process optimization objectives.

Mining & Metallurgy: In ore processing and smelting operations, large rotating equipment — including ball mills, kiln drives, and induced draft fans — operates under high vibration and contamination loads. The non-contact measurement principle of the 330881-50-00-CN eliminates wear-related sensor degradation, reducing maintenance intervention frequency and extending mean time between calibration events in harsh environmental conditions.

Water & Wastewater Treatment: Pump and blower monitoring systems in municipal water infrastructure benefit from the transducer’s ability to detect early-stage bearing deterioration and rotor eccentricity, enabling condition-based maintenance scheduling that reduces unplanned downtime and extends asset service life across distributed pumping stations.

Packaging & Discrete Manufacturing: High-speed rotating machinery in packaging lines — including centrifuges, turboblowers, and high-speed spindles — requires precise vibration monitoring to maintain product quality and prevent catastrophic bearing failures. The 330881-50-00-CN integrates into compact monitoring architectures where rack space is limited, supporting multi-machine monitoring from a single 3500 Series chassis.

Product Compatibility FAQ

Q1: Is the 330881-50-00-CN directly compatible with the Bently Nevada 3500 Series monitoring rack without additional signal conditioning?
The 330881-50-00-CN is a 3300 XL Series transducer designed to operate with a matched 3300 XL proximitor, which provides the required –24 VDC excitation and signal conditioning. The conditioned output from the proximitor is then fully compatible with 3500 Series I/O modules such as the 3500/40M. Direct connection of the transducer to a 3500 rack input without the intermediary proximitor is not supported and will result in incorrect gap voltage readings. Always verify the complete transducer-proximitor-monitor chain during system commissioning to ensure calibration traceability.

Q2: How does the warranty terms confirmed during quotation apply to replacement units installed in existing 3300 XL or 3500 Series architectures?
The warranty terms confirmed during quotation covers functional performance of the transducer under normal operating conditions as specified in the Bently Nevada 330881 series datasheet. The warranty period commences from the date of shipment. For replacement installations, it is recommended to perform a gap voltage verification and sensitivity check against the original calibration certificate upon installation to confirm that the replacement unit meets system design specifications. Warranty claims require documentation of installation conditions and observed fault mode.

Q3: What are the key considerations for long-term maintenance of proximity transducer installations in high-temperature or high-vibration environments?
Long-term reliability of the 330881-50-00-CN installation depends on three primary factors: cable integrity, mounting rigidity, and gap stability. In high-temperature environments, periodic inspection of the extension cable and connector insulation is recommended to detect thermal degradation before it affects signal quality. In high-vibration environments, transducer mounting hardware should be checked for loosening at each planned maintenance interval. Gap voltage trending via the 3500 Series rack or System 1 software provides a continuous, non-intrusive indicator of transducer health and target surface condition, enabling predictive replacement scheduling without requiring machinery shutdown.
