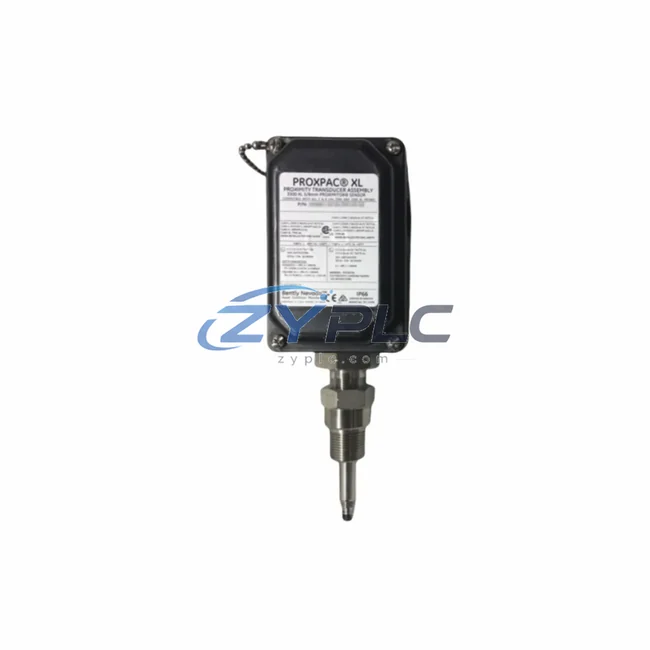

Bently Nevada 330881-BR-04-70-03-02 ProxPac XL Proximity Transducer

Bently Nevada 330881-BR-04-70-03-02 ProxPac XL: Industrial Data Link for Rotating Machinery Networks

The Bently Nevada 330881-BR-04-70-03-02 ProxPac XL Proximity Transducer Assembly is a precision eddy-current sensing solution engineered for continuous, real-time vibration and position monitoring of rotating machinery in demanding industrial environments. As a critical node in the plant-wide condition monitoring network, this transducer assembly bridges the gap between physical machine behavior and the digital data infrastructure of modern smart factories — feeding high-fidelity shaft displacement signals into vibration monitoring systems, SCADA platforms, and predictive maintenance frameworks without interruption.

In today’s connected industrial plant, the integrity of the data chain from field sensor to control room is non-negotiable. The 330881-BR-04-70-03-02 is designed to operate as a reliable signal source within the Bently Nevada System 1 condition monitoring architecture, delivering analog output signals that are directly compatible with Bently Nevada 3500 Series rack-based monitoring systems. These signals are then digitized, processed, and transmitted upstream to DCS controllers, historian servers, and SCADA/HMI workstations — enabling operators to visualize shaft vibration trends, set alarm thresholds, and initiate protective shutdown sequences in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330881-BR-04-70-03-02 ProxPac XL assembly functions as the originating signal node in a layered industrial monitoring architecture. At the field level, the eddy-current probe detects micro-level shaft displacement and transmits a continuous analog signal through the matched extension cable to the Bently Nevada Proximitor sensor module. This Proximitor converts the raw electromagnetic signal into a calibrated voltage output, which is then routed into a Bently Nevada 3500/42M Proximitor Monitor card installed within the 3500 rack system.

Within the 3500 rack, the monitor card processes the incoming vibration data against user-configured alarm setpoints. When vibration levels exceed danger thresholds, the rack issues relay outputs to the plant’s Emergency Shutdown System (ESD) or DCS — such as a Honeywell Experion PKS or ABB System 800xA — triggering protective actions to prevent catastrophic machinery failure. Simultaneously, the 3500 rack communicates digitized process data via Modbus TCP/IP or OPC-UA protocol to the plant historian and SCADA layer.

At the SCADA and HMI level, operators using platforms such as GE iFIX, Wonderware InTouch, or Siemens WinCC can visualize real-time vibration waveforms, trend historical data, and configure alarm notification workflows. The data path continues upward to the Bently Nevada System 1 Evolution software platform, where advanced diagnostics — including orbit plots, spectrum analysis, and shaft centerline trending — are performed to support predictive maintenance decisions.

For plants integrating edge computing, the analog outputs from the Proximitor can also be digitized via an industrial edge gateway (such as those based on Moxa UC-8100 or Advantech WISE-5000 series) and forwarded to cloud-based asset performance management (APM) platforms. In multi-machine monitoring installations, the 330881-BR-04-70-03-02 is typically deployed alongside Bently Nevada 330130 Series standard proximity probes and 330180 Series extension cables, forming a complete transducer system that feeds multiple 3500 rack channels simultaneously. Bently Nevada 3500/15 Power Supply modules ensure stable, conditioned power delivery to the entire rack, maintaining signal integrity across all connected transducer channels.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the fragmentation of machine health data across incompatible systems — vibration data locked in standalone monitors, process data siloed in DCS historians, and maintenance records isolated in CMMS platforms. The 330881-BR-04-70-03-02 ProxPac XL, when integrated within the Bently Nevada 3500 ecosystem, directly addresses this data isolation problem by providing a standardized, high-fidelity analog signal that can be ingested by virtually any industrial data infrastructure.

Through OPC-UA and Modbus TCP/IP connectivity at the 3500 rack level, vibration data from this transducer assembly can be seamlessly published to plant-wide data buses, breaking down the barriers between condition monitoring, process control, and enterprise asset management systems. Plants that previously operated vibration monitoring as a standalone, disconnected function can now integrate shaft displacement and vibration trend data directly into their SCADA dashboards and ERP-linked maintenance workflows.

Remote monitoring and diagnostics are equally addressed: with the 3500 rack’s network connectivity, maintenance engineers can access live vibration data and alarm status from remote operations centers without requiring physical presence at the machine. This capability is particularly valuable in offshore platforms, remote compressor stations, and geographically distributed power generation assets where on-site intervention is costly and time-consuming.

Production line transparency is further enhanced by the ability to correlate vibration data from the 330881-BR-04-70-03-02 with process variables — flow rates, temperatures, pressures — from the DCS, enabling root-cause analysis of machinery anomalies within the full context of the production process. System scalability is inherent in the modular 3500 rack architecture: additional monitor cards and transducer channels can be added without disrupting existing installations, supporting phased plant expansion and machinery fleet growth.

Every 330881-BR-04-70-03-02 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify signal output accuracy, cable continuity, and Proximitor calibration. All units are backed by a warranty terms confirmed during quotation and supported by RFQ-confirmed sourcing for rapid global deployment.

Industrial Connectivity FAQ

Q1: What is the signal output of the 330881-BR-04-70-03-02, and how does it integrate with SCADA systems?
The ProxPac XL assembly outputs a calibrated analog voltage signal (typically –24 VDC bias with AC vibration component) from the Proximitor sensor. This signal is fed into a Bently Nevada 3500 Series monitor card, which converts it to digital data and makes it available via Modbus TCP/IP or OPC-UA for integration with SCADA platforms such as GE iFIX, Wonderware InTouch, or Siemens WinCC. Communication latency from sensor to SCADA display is typically under 1 second in standard configurations.

Q2: Is the 330881-BR-04-70-03-02 compatible with non-Bently Nevada monitoring systems?
Yes. The analog output from the Proximitor sensor is a standard voltage signal that can be read by any monitoring system with compatible analog input cards, including third-party vibration monitors and industrial data acquisition systems. However, for full protocol compatibility and advanced diagnostic features, integration with the Bently Nevada 3500 rack and System 1 software is recommended.

Q3: How does ZYPLC ensure network stability and signal integrity for this transducer assembly?
Each 330881-BR-04-70-03-02 unit is pre-shipment tested for probe gap voltage, extension cable continuity, and Proximitor output calibration. Matched cable lengths and impedance-controlled components ensure consistent signal transmission across the full transducer system. The ProxPac XL design minimizes field assembly errors by integrating probe, cable, and Proximitor as a pre-configured, tested assembly.

Q4: What warranty and support does ZYPLC provide for the 330881-BR-04-70-03-02?
ZYPLC provides a warranty terms confirmed during quotation on all 330881-BR-04-70-03-02 units, covering manufacturing defects and functional performance. Availability confirmed by RFQ inventory enables rapid order fulfillment with global shipping. Technical support for system integration, protocol configuration, and installation guidance is available through our sales team.
