Bently Nevada 330881-BR-05-060-00-02 Proximity Transducer Assembly for ProxPac XL Systems

Bently Nevada 330881-BR-05-060-00-02: Industrial Data Link for ProxPac XL Machine Protection Systems

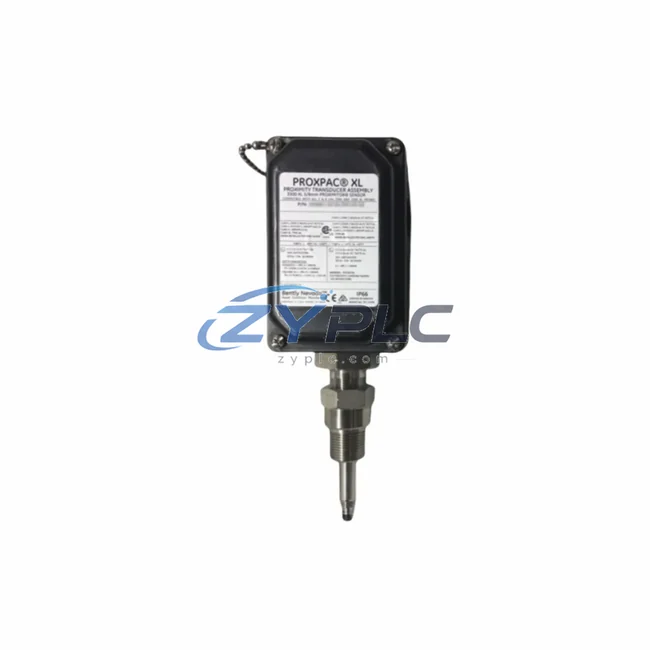

The Bently Nevada 330881-BR-05-060-00-02 is a precision ProxPac XL Proximity Transducer Assembly engineered for continuous, high-fidelity vibration and position measurement in critical rotating machinery environments. As a core sensing node in the industrial data chain, this transducer converts mechanical displacement signals into analog voltage outputs that feed directly into Bently Nevada 3500 Series rack-based machinery protection systems, enabling real-time monitoring across compressors, turbines, pumps, and motors. Its eddy-current sensing principle ensures non-contact, wear-free operation — a fundamental requirement for 24/7 smart factory uptime.

In modern industrial connectivity architectures, the 330881-BR-05-060-00-02 sits at the field device layer, originating the signal chain that flows upward through signal conditioners, communication gateways, and ultimately into SCADA and DCS platforms. The transducer’s analog output interfaces seamlessly with Bently Nevada 3500/42M Proximitor I/O modules, which digitize and transmit vibration data over industry-standard protocols including Modbus RTU, Modbus TCP/IP, and OPC-UA — enabling full integration with Emerson Ovation DCS, Honeywell Experion PKS, and third-party SCADA systems such as Wonderware InTouch and GE iFIX.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330881-BR-05-060-00-02 initiates the data flow at the machine surface. Its probe tip detects shaft radial vibration and axial position with micron-level resolution, transmitting the raw analog signal through a matched extension cable — typically the Bently Nevada 330130 Series extension cable — to a Proximitor sensor such as the 330180 or 330980 Series. The Proximitor conditions the signal and delivers a calibrated DC voltage to the Bently Nevada 3500/42M Proximitor I/O module installed in the 3500 rack.

Within the 3500 rack, the 3500/20 Communication Gateway module aggregates channel data and exposes it over Modbus TCP/IP or OPC-UA to upstream systems. Plant engineers connect this gateway to an industrial Ethernet switch — such as a Hirschmann RS20 or Moxa EDS-308 managed switch — which routes data across the plant LAN to the Emerson System 1 condition monitoring software or directly to a Wonderware SCADA historian. Alarm thresholds configured in the 3500 rack trigger relay outputs that interface with Siemens S7-300 or Allen-Bradley ControlLogix PLCs for automated shutdown sequences, closing the loop between field sensing and control action.

For remote sites or offshore platforms, an edge gateway such as the Moxa UC-8112 or Advantech WISE-5000 collects OPC-UA data from the 3500 system and forwards it over 4G LTE or fiber to a central SCADA server, enabling remote diagnostics and predictive maintenance analytics without on-site personnel. HMI panels — including Siemens TP1200 Comfort or Schneider Electric Magelis — display real-time vibration trends, gap values, and alarm states sourced directly from the 330881-BR-05-060-00-02 signal chain, giving operators full machine visibility at the control room level.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate legacy machinery protection systems that generate critical vibration data but lack the communication interfaces needed to share that data with modern SCADA, MES, or cloud analytics platforms. The result is data isolation — valuable machine health information trapped in standalone monitors, invisible to plant-wide optimization efforts.

The Bently Nevada 330881-BR-05-060-00-02, deployed within the ProxPac XL system architecture, directly addresses this challenge. By feeding high-accuracy proximity data into the 3500 Series rack — which supports Modbus TCP/IP and OPC-UA natively — the transducer assembly becomes the origination point for a fully transparent data pipeline. Protocol conversion is handled at the rack level, eliminating the need for external signal converters or custom middleware. Plant engineers can map vibration channels directly to SCADA tags, enabling real-time dashboards, automated alarm escalation, and long-term trend analysis without modifying existing control logic.

For multi-machine installations, the 3500 rack’s network architecture supports simultaneous monitoring of dozens of measurement points — radial vibration, axial position, speed, and temperature — all accessible from a single OPC-UA server endpoint. This scalability allows facilities to expand monitoring coverage incrementally, adding new ProxPac XL transducer assemblies as production lines grow, without redesigning the communication backbone. Remote diagnostics capabilities mean that field engineers can interrogate sensor health, calibration status, and alarm history from any networked workstation, reducing unplanned downtime and eliminating unnecessary site visits.

The 330881-BR-05-060-00-02 is shipped fully tested and calibrated, with each unit verified against Bently Nevada factory specifications before dispatch. Every unit sold by ZYPLC includes a warranty terms confirmed during quotation covering manufacturing defects and performance deviations, with technical support available for integration and commissioning queries.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330881-BR-05-060-00-02 support for SCADA integration?
The 330881-BR-05-060-00-02 outputs an analog DC voltage signal that interfaces with the Bently Nevada 3500 Series rack. The 3500/20 Communication Gateway within the rack supports Modbus RTU, Modbus TCP/IP, and OPC-UA, enabling direct integration with all major SCADA and DCS platforms including Emerson Ovation, Honeywell Experion, and Wonderware InTouch. No additional protocol converters are required for standard plant network architectures.

Q2: Is the 330881-BR-05-060-00-02 compatible with third-party PLCs and control systems?
Yes. Because the ProxPac XL transducer feeds into the 3500 rack’s standardized communication gateway, its data is accessible to any Modbus-compatible PLC or OPC-UA client — including Siemens S7 Series, Allen-Bradley ControlLogix, Mitsubishi MELSEC, and Schneider Electric Modicon platforms. The open protocol architecture ensures broad system compatibility without proprietary lock-in.

Q3: How does the system ensure network stability and minimize communication latency for machine protection applications?
The 3500 rack processes vibration data at the hardware level with sub-millisecond response times, independent of network communication cycles. Alarm relay outputs operate in real time regardless of SCADA polling intervals, ensuring that machine protection actions are never delayed by network congestion. The Modbus TCP/IP and OPC-UA interfaces are used for monitoring and historian functions, while protection logic remains hardwired and deterministic.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 330881-BR-05-060-00-02?
Every Bently Nevada 330881-BR-05-060-00-02 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output linearity, sensitivity, and connector integrity against OEM specifications. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for same-week dispatch with full traceability documentation. For technical integration support or volume pricing, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
