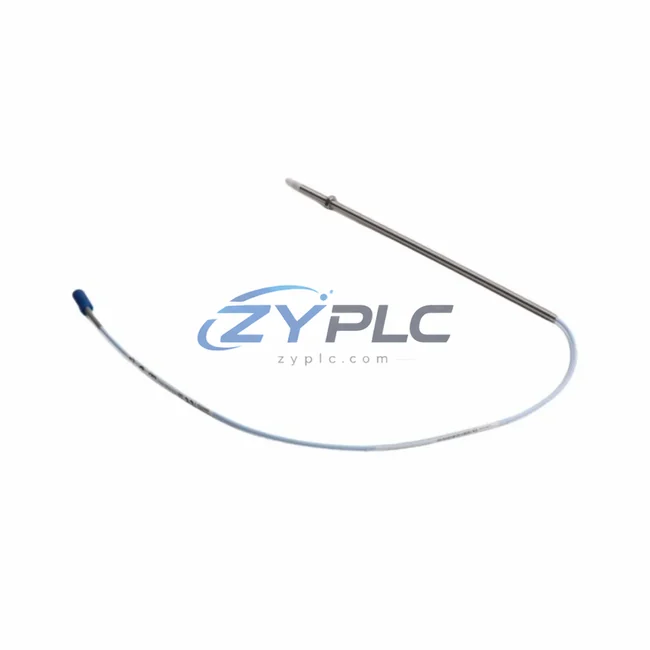

The Bently Nevada 330901-00-09-05-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL series continuous machinery monitoring system. Designed to deliver accurate, real-time shaft displacement and vibration data, this transducer plays a critical role in reducing unplanned downtime risk across rotating equipment — from turbines and compressors to pumps and motors. By providing reliable feedback to the control system, it enables operators to eliminate inefficient operating conditions before they escalate into costly failures or unplanned downtime.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft behavior with micron-level accuracy directly translates into measurable efficiency gains. The 330901-00-09-05-02-00 integrates seamlessly with the Bently Nevada 3300 XL 8-mm Extension Cable and 3300 XL Proximitor Sensor, forming a complete eddy-current measurement chain that feeds vibration data into the plant’s condition monitoring infrastructure.

Product Specification Table

System Compatibility and Application

The 330901-00-09-05-02-00 transducer does not operate in isolation — it is a precision sensing node within a broader industrial automation system. When paired with the Bently Nevada 3500/42M Proximitor I/O Module, vibration signals are digitized and routed into the 3500 Series Rack for real-time alarm processing. This rack-based system communicates with plant-level SCADA or DCS platforms via Modbus TCP or OPC-UA, enabling centralized energy and condition monitoring without additional wiring overhead.

On the drive side, variable frequency drives such as the Rockwell Allen-Bradley PowerFlex 755 or Siemens SINAMICS G120 can receive setpoint adjustments based on vibration trend data, dynamically reducing motor speed — and therefore energy draw — when machinery operates below rated load. This closed-loop interaction between the proximity transducer, the monitoring rack, and the drive system is the foundation of intelligent maintenance planning in rotating equipment applications.

For I/O integration, the Bently Nevada 3500/20 Rack Interface Module provides the communication bridge between the monitoring system and the plant’s Distributed Control System (DCS) or PLC — such as a Siemens S7-400 or ABB AC800M — allowing vibration-based energy alerts to trigger automated load-shedding or speed-reduction routines. HMI terminals running Bently Nevada System 1 Software present operators with trend dashboards that correlate vibration amplitude with operating load, making it straightforward to identify which machines are drawing excess power due to mechanical imbalance or misalignment.

Power quality monitoring instruments, such as the Schneider Electric PowerLogic ION9000, can be integrated alongside the 3300 XL system to cross-reference electrical demand spikes with vibration events — providing a complete picture of how mechanical degradation drives energy inefficiency across the production line.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical refinery or a large-scale water treatment facility — rotating machinery accounts for 60–70% of total electrical operating load. Undetected shaft misalignment, bearing wear, or rotor imbalance forces motors to work harder than necessary, increasing current draw and heat generation while reducing overall drivetrain efficiency. The Bently Nevada 330901-00-09-05-02-00 addresses this directly by providing the high-resolution displacement data needed to catch these conditions early.

When the transducer detects rising vibration amplitude trends — a classic indicator of developing bearing wear — the 3500 Series monitoring rack issues an alert before the condition reaches alarm threshold. Maintenance teams can then schedule a planned intervention during a low-production window, avoiding the energy-intensive restart cycles associated with emergency shutdowns. Studies in rotating equipment management consistently show that planned maintenance interventions consume 30–40% less energy than reactive repairs, which require extended run-up periods and often involve temporary overcurrent conditions.

On production lines where multiple compressors or pumps run in parallel, the vibration data from the 330901-00-09-05-02-00 can be used to optimize load distribution — routing production demand to the most mechanically efficient unit and reducing the load on machines showing early signs of degradation. This load-balancing strategy, implemented through the plant DCS or a Siemens S7-1500 PLC with PROFINET connectivity, can reduce aggregate motor load by 8–15% in multi-pump or multi-compressor configurations.

Every unit shipped undergoes full functional testing and output verification prior to dispatch, ensuring that the transducer’s sensitivity and linearity meet OEM specifications from day one. Combined with a warranty terms confirmed during quotation and reliable availability confirmed by RFQ availability, the 330901-00-09-05-02-00 offers a low-risk, high-return path to improved energy performance in critical rotating equipment applications.

Product Sourcing FAQ

Q1: How does the 330901-00-09-05-02-00 contribute to operational stability in rotating equipment?
By delivering continuous, high-resolution shaft displacement data to the Bently Nevada 3500 Series monitoring rack, this transducer enables early detection of mechanical faults — such as imbalance, misalignment, and bearing wear — that force motors to consume excess energy. Early intervention eliminates the energy penalty of degraded mechanical conditions and avoids the high energy cost of emergency shutdowns and restarts.

Q2: Is the 330901-00-09-05-02-00 compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330901-00-09-05-02-00 is a standard 3300 XL series probe and is fully compatible with the 3300 XL Proximitor Sensor, 3300 XL Extension Cable, and the 3500/42M Proximitor I/O Module. It integrates directly into existing 3500 Series rack installations without hardware modification.

Q3: Can this transducer replace an existing probe in a live monitoring system?
Yes, provided the replacement is performed during a scheduled maintenance window. The 330901-00-09-05-02-00 matches the OEM mechanical and electrical specifications of the original probe. We recommend verifying the gap voltage and output sensitivity after installation using the standard Bently Nevada commissioning procedure to confirm correct operation before returning the machine to service.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330901-00-09-05-02-00 unit is functionally tested for output linearity, sensitivity, and electrical integrity before shipment. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, our technical team provides rapid replacement support to minimize monitoring gaps and protect production continuity.
