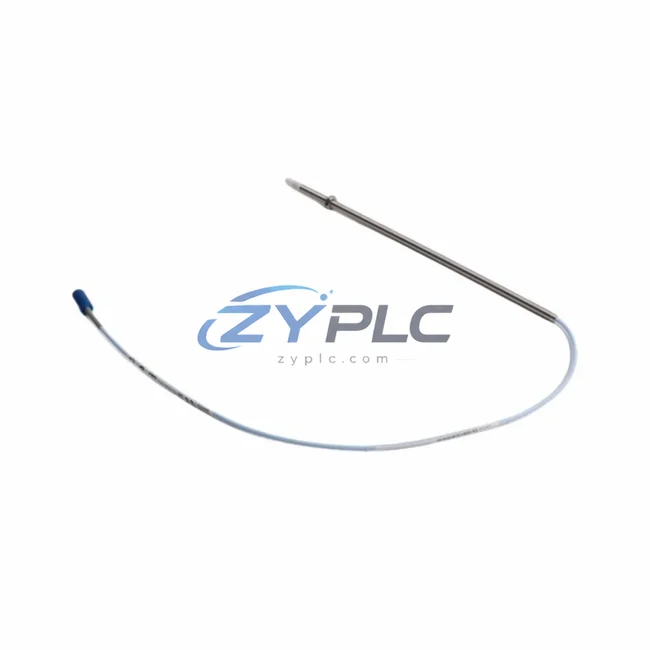

Bently Nevada 330901-00-40-10-02-CN 3300 XL Proximity Transducer

Bently Nevada 330901-00-40-10-02-CN 3300 XL Proximity Transducer: Precision Vibration Control for Optimized Automation

The Bently Nevada 330901-00-40-10-02-CN is a high-performance proximity transducer from the renowned 3300 XL Series, engineered to deliver continuous, non-contact vibration and position measurement in demanding industrial environments. Designed for rotating machinery protection and condition monitoring, this transducer plays a pivotal role in reducing unnecessary energy consumption, extending equipment service life, and enabling predictive maintenance strategies that minimize unplanned downtime. By providing real-time shaft displacement data with exceptional accuracy, the 330901-00-40-10-02-CN empowers plant engineers to make data-driven decisions that directly improve equipment utilization rates and optimize production line throughput.

In modern industrial facilities where energy costs represent a significant portion of operating expenditure, the ability to detect early-stage mechanical anomalies before they escalate into catastrophic failures is invaluable. The 330901-00-40-10-02-CN integrates seamlessly into industrial automation systems, feeding critical vibration data into control systems that can dynamically adjust motor loads, drive speeds, and process parameters to maintain optimal efficiency across the production cycle.

Product Specification Table

System Compatibility and Application

The 330901-00-40-10-02-CN operates as a critical sensing node within a layered industrial automation architecture. At the field level, the transducer works in conjunction with the Bently Nevada 330130-040-00-00 extension cable and the 330180-X1-05 proximitor/driver module, which conditions the raw eddy-current signal into a calibrated voltage output suitable for monitoring system inputs. This signal chain ensures that shaft displacement data is captured with the precision required to detect sub-millimeter changes in rotor position — changes that, if left undetected, can lead to catastrophic bearing failures and the associated energy spikes of emergency shutdowns.

At the control and monitoring layer, the transducer’s output feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module, which processes vibration and position data in real time. The 3500 Series rack system communicates via Modbus TCP and OPC-UA protocols, enabling seamless integration with plant-level SCADA platforms and DCS environments such as the Emerson DeltaV distributed control system. This connectivity allows operators to correlate vibration trends with process variables — motor current draw, flow rates, and pressure differentials — to identify inefficient operating conditions before they translate into measurable unplanned downtime.

For drive-level optimization, the vibration data captured by the 330901-00-40-10-02-CN can be used to inform speed reference adjustments on Rockwell Automation PowerFlex 755 variable frequency drives (VFDs) connected to the monitored machinery. When shaft vibration signatures indicate resonance or imbalance at specific RPM ranges, the VFD can be programmed to avoid those speed bands, reducing mechanical stress and the associated increase in motor current consumption. This closed-loop approach between vibration sensing and drive control is a cornerstone of energy-efficient motor management in process industries.

At the data aggregation layer, the Bently Nevada System 1 asset performance management software collects historical vibration trends from multiple 330901-00-40-10-02-CN transducers deployed across a facility, enabling fleet-wide energy benchmarking. Operators can identify which machines are operating outside their efficiency envelopes and schedule targeted maintenance interventions during planned production windows — eliminating the energy-intensive restart cycles associated with unplanned stoppages. Integration with Siemens SIMATIC S7-1500 PLC platforms via PROFINET further extends the system’s ability to automate load-shedding responses when vibration thresholds are approached, protecting both equipment and energy budgets simultaneously.

Power quality monitoring at the MCC (Motor Control Center) level, using devices such as the Schneider Electric PowerLogic ION9000 power meter, complements the mechanical data from the proximity transducer by correlating electrical anomalies — harmonic distortion, power factor degradation — with mechanical vibration events. This multi-domain visibility is essential for facilities pursuing ISO 50001 maintenance planning certification, where documented evidence of energy performance improvements must be maintained across all major energy-consuming systems.

Maintenance and Replacement Notes

In a typical continuous process plant — such as a petrochemical refinery or a large-scale water treatment facility — rotating machinery accounts for 60–70% of total electrical energy consumption. Compressors, pumps, and turbines operating with even minor shaft misalignment or bearing wear consume measurably more energy than their design specifications predict. The Bently Nevada 330901-00-40-10-02-CN addresses this energy leakage at its source by providing the high-resolution displacement data needed to detect and quantify mechanical degradation before it becomes energetically significant.

Consider a boiler feed pump driven by a 500 kW induction motor. A 10% increase in vibration amplitude, if left unaddressed, can correspond to a 3–5% increase in motor current draw as the pump works against increased mechanical resistance from a deteriorating bearing. Over a 720-hour operating month, this translates to thousands of kilowatt-hours of avoidable energy consumption. With the 330901-00-40-10-02-CN continuously monitoring shaft displacement and feeding alert signals to the plant’s condition monitoring system, maintenance teams receive early warning — typically weeks before failure — allowing them to schedule bearing replacement during a planned outage rather than responding to an emergency trip.

Emergency trips are among the most energy-intensive events in industrial operations. The restart sequence for a large centrifugal compressor, including purge cycles, slow-roll periods, and ramp-up to operating speed, can consume 3–5 times the normal steady-state energy draw over a 2–4 hour period. By preventing even one unplanned trip per quarter, the 330901-00-40-10-02-CN delivers operational stability that far exceed its acquisition cost. Combined with the warranty terms confirmed during quotation and pre-shipment functional testing performed on every unit, the total cost of ownership is further reduced by eliminating the risk of early-life failures that would necessitate costly re-commissioning procedures.

On discrete manufacturing lines — automotive body welding, semiconductor fabrication, or food and beverage filling — the transducer’s role shifts toward production rhythm optimization. Servo-driven positioning systems and high-speed spindles benefit from proximity-based feedback that ensures consistent part-to-part dimensional accuracy, reducing scrap rates and the embedded energy cost of reworked or rejected components. When integrated with Beckhoff TwinCAT motion control platforms, the real-time position data from the 330901-00-40-10-02-CN can be used to fine-tune servo gain parameters, reducing overshoot and settling time — directly improving cycle time efficiency and line throughput without increasing installed power.

Product Sourcing FAQ

Q1: How does the 330901-00-40-10-02-CN contribute to measurable operational stability in rotating machinery applications?
The transducer enables continuous, non-contact monitoring of shaft radial position and vibration. By detecting early-stage mechanical degradation — bearing wear, rotor imbalance, misalignment — it allows maintenance teams to intervene before efficiency losses become significant. Preventing a single unplanned compressor or pump trip can save thousands of kWh in restart energy alone, while ongoing vibration trend data supports load optimization strategies that keep motors operating within their peak efficiency bands.

Q2: Is the 330901-00-40-10-02-CN compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330901-00-40-10-02-CN is a direct-fit replacement for standard 3300 XL Series proximity transducer configurations. It is compatible with existing 330130-series extension cables and 330180-series proximitor driver modules without requiring recalibration of the overall measurement chain, provided the gap voltage is verified during installation per Bently Nevada commissioning procedures.

Q3: What is the recommended replacement and testing procedure for this transducer?
Each unit supplied by ZYPLC undergoes pre-shipment functional testing, including gap sensitivity verification, output linearity check, and insulation resistance measurement. Upon receipt, it is recommended to perform a bench calibration check using a Bently Nevada calibration fixture before installation. In service, transducer performance should be verified during scheduled outages using the system’s built-in self-test functions available through the 3500 Series monitor rack or System 1 software diagnostics.

Q4: What warranty coverage applies to the 330901-00-40-10-02-CN?
All units are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains RFQ-confirmed sourcing of the 330901-00-40-10-02-CN to support rapid deployment for both planned replacements and emergency sourcing requirements, minimizing the production downtime associated with transducer failures.
