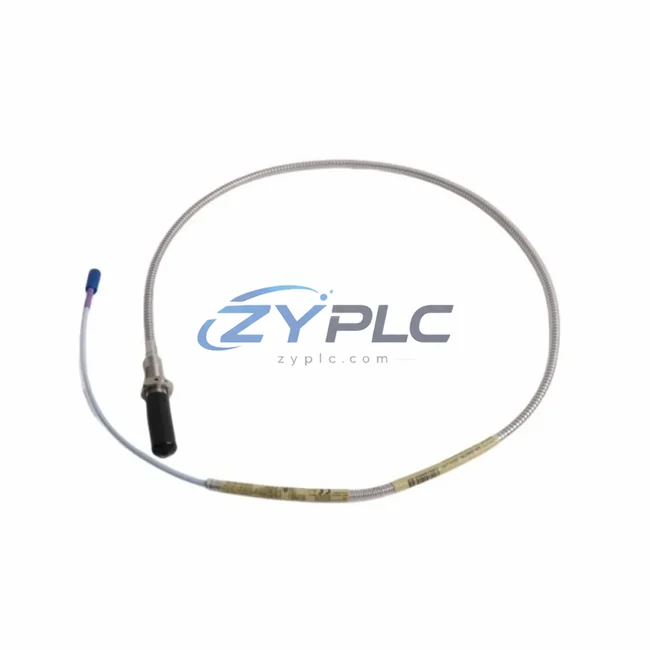

Bently Nevada 330902-00-10-10-01-05 Proximity Transducer for 3300 XL Systems

Bently Nevada 330902-00-10-10-01-05: Industrial Data Link for 3300 XL NSv Systems

The Bently Nevada 330902-00-10-10-01-05 is a high-precision proximity transducer engineered for continuous vibration and position monitoring in rotating machinery environments. As a core component of the Bently Nevada 3300 XL NSv series, this transducer serves as the critical sensing node in a layered industrial data architecture — bridging raw mechanical signal acquisition with real-time digital transmission across SCADA, DCS, and condition monitoring platforms. In smart factory deployments, the 330902-00-10-10-01-05 enables seamless data flow from field-level rotating assets through to supervisory control systems, eliminating signal gaps that compromise predictive maintenance strategies.

Designed for demanding industrial environments, this proximity transducer operates within the eddy-current sensing principle, delivering non-contact, continuous shaft displacement and vibration data with exceptional linearity and repeatability. Its compatibility with the Bently Nevada 3300 XL signal conditioning ecosystem ensures that raw analog signals are accurately converted and transmitted to monitoring modules, enabling real-time diagnostics at the control room level.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 330902-00-10-10-01-05 proximity transducer functions as the originating sensing node in a multi-layer industrial data chain. At the field level, the transducer is mounted adjacent to the rotating shaft of a turbine, compressor, or pump, continuously measuring radial vibration and shaft gap. The analog signal is transmitted via matched extension cable to the Bently Nevada 3300 XL Proximitor Sensor — the signal conditioning module that converts raw eddy-current output into a calibrated voltage signal suitable for downstream processing.

From the proximitor, the conditioned signal feeds into the Bently Nevada 3500 Machinery Protection System rack, where dedicated monitor cards — such as the 3500/42M Proximitor/Seismic Monitor — digitize the signal and apply alarm thresholds for overspeed, high vibration, and axial displacement. The 3500 rack communicates upstream via Modbus TCP or OPC-UA to the plant’s DCS platform (such as Emerson DeltaV or Ovation), enabling real-time process integration and automated trip logic.

Simultaneously, the digitized vibration data is streamed to Bently Nevada System 1 condition monitoring software, where trend analysis, spectrum plots, and predictive maintenance alerts are generated. System 1 acts as the SCADA-layer analytics engine, aggregating data from multiple 330902-series transducers installed across a rotating machinery train — including compressor inlet, mid-span, and drive-end measurement points — to provide a holistic asset health picture.

For facilities integrating legacy analog instrumentation with modern Ethernet-based control networks, a Moxa NPort industrial serial-to-Ethernet device server or a ProSoft Technology MVI56E-MNET Modbus TCP/IP communication module can be deployed between the 3500 rack and the plant LAN, enabling the 330902-00-10-10-01-05 data stream to reach Wonderware SCADA or iFIX HMI platforms without signal degradation. Edge computing nodes — such as the Advantech UNO-2484G industrial edge gateway — can further pre-process vibration FFT data locally before forwarding compressed diagnostic packets to cloud-based asset management systems, reducing network bandwidth consumption while maintaining real-time alarm responsiveness.

In multi-machine monitoring scenarios, the 330902-00-10-10-01-05 is typically deployed alongside Bently Nevada 330130 velocity transducers and 330400 accelerometers to provide complementary vibration measurement across frequency ranges, ensuring comprehensive machinery protection from low-speed bearing defects to high-frequency blade-pass events.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial plant operations is the fragmentation of machinery health data across incompatible monitoring systems. Legacy vibration monitoring installations often rely on standalone analog recorders or proprietary condition monitoring platforms that cannot share data with modern DCS or SCADA environments. The result is a data silo: maintenance engineers must manually retrieve vibration trend data from dedicated workstations, while control room operators have no visibility into machinery health status during process upsets.

The Bently Nevada 330902-00-10-10-01-05, when integrated within the 3300 XL NSv and 3500 system architecture, directly addresses this isolation problem. By providing a standardized analog output that is compatible with both Bently Nevada’s proprietary monitoring ecosystem and third-party protocol gateways, the transducer enables plant engineers to bridge the gap between condition monitoring and process control networks. OPC-UA server functionality within the 3500 rack allows vibration data to be published to any OPC-UA client — including Siemens WinCC SCADA, GE iFIX, or Inductive Automation Ignition — without custom integration development.

Remote diagnostics capability is a further advantage of this integrated architecture. With the 330902-00-10-10-01-05 data accessible via OPC-UA or Modbus TCP, remote condition monitoring engineers can access real-time vibration spectra and historical trend data from any network-connected workstation, enabling off-site predictive maintenance analysis and reducing the need for on-site inspection during normal operation. Alarm escalation logic within System 1 or the DCS can automatically notify maintenance teams via email or SMS when vibration levels approach trip thresholds, enabling proactive intervention before unplanned shutdowns occur.

Production line transparency is also enhanced: by integrating machinery vibration data into the plant’s overall SCADA dashboard, operations managers gain a unified view of both process variables and equipment health, enabling more informed decisions about production scheduling, maintenance windows, and asset lifecycle management. System expansion is straightforward — additional 330902-series transducers can be added to the 3500 rack without changes to the upstream network architecture, supporting phased monitoring rollouts across large rotating machinery fleets.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330902-00-10-10-01-05 support for SCADA and DCS integration?
The 330902-00-10-10-01-05 itself outputs a standard analog voltage signal. When paired with the Bently Nevada 3500 Machinery Protection System, the data becomes accessible via Modbus RTU, Modbus TCP, and OPC-UA — the three most widely supported industrial protocols for DCS and SCADA integration. This makes the transducer compatible with virtually all modern plant control platforms without requiring custom protocol converters.

Q2: How is network stability and signal integrity maintained over long cable runs?
The 330902-00-10-10-01-05 uses a matched coaxial cable system (typically 330130 or 330180 extension cables) between the transducer and the proximitor sensor. This coaxial architecture provides excellent noise immunity and maintains signal linearity over cable runs up to the specified maximum length. For installations in high-EMI environments, shielded cable routing and proper grounding practices further ensure signal integrity from the measurement point to the monitoring rack.

Q3: Can the system be expanded to monitor additional measurement points without disrupting existing network architecture?
Yes. The modular design of the Bently Nevada 3500 rack allows additional monitor cards to be inserted to accommodate new transducer inputs. Each new 330902-series transducer added to the system is automatically recognized by System 1 software and integrated into the existing SCADA/OPC-UA data stream. No changes to the upstream network configuration are required, making phased expansion straightforward and cost-effective.

Q4: What testing and warranty coverage is provided with this unit?
Every Bently Nevada 330902-00-10-10-01-05 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output linearity, sensitivity, and connector integrity. All units are covered by a warranty terms confirmed during quotation from the date of shipment, covering defects in materials and workmanship. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and replacement requirements.
