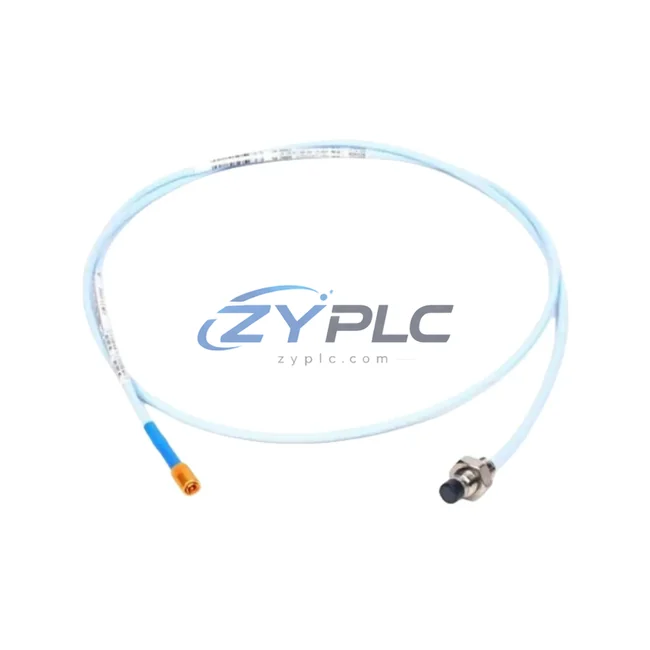

In modern industrial facilities where uptime and energy efficiency are inseparable goals, signal integrity between rotating machinery and the monitoring system is the invisible backbone of every optimization strategy. The Bently Nevada 330903-00-02-10-02-05 Extension Cable is engineered specifically for the 3300 NSV (Non-contact Vibration) monitoring platform, providing a low-loss, high-fidelity signal path between proximity probes and the 3300 series signal conditioning modules. By maintaining clean, accurate vibration data at every sampling interval, this cable directly supports the maintenance-focused automation decisions that reduce unnecessary motor run time, prevent over-lubrication cycles, and eliminate unplanned shutdowns that waste both power and production capacity.

When a factory integrates the 330903-00-02-10-02-05 into its condition monitoring architecture, the downstream benefits extend well beyond simple connectivity. The 3300 NSV system relies on consistent, low-noise signals to calculate shaft displacement, orbital path, and bearing clearance in real time. Any degradation in the cable path introduces measurement error that can mask early-stage faults, forcing maintenance teams to run equipment longer at suboptimal loads — a direct contributor to excess operating load. With the 330903-00-02-10-02-05 in place, the 3300 XY/Gap signal conditioner receives clean differential voltage, enabling the Bently Nevada 3500/42M Proximitor I/O Module to generate accurate alarm thresholds and trip setpoints without false positives that trigger unnecessary shutdowns or missed detections that allow inefficient operation to continue.

Product Specification Table

System Compatibility and Application

The 330903-00-02-10-02-05 Extension Cable does not operate in isolation — it is a precision link within a layered industrial automation system. At the sensing layer, Bently Nevada 330730-080-00-00 Proximity Probes detect shaft position changes as small as a few microns, feeding raw eddy-current signals through the extension cable to the 330180-51-05 Signal Conditioner. The conditioner converts the analog displacement signal into a calibrated DC voltage that the 3500/42M Proximitor I/O Module digitizes and forwards to the plant’s condition monitoring network.

At the control execution layer, the vibration data is consumed by Bently Nevada System 1 software, which correlates shaft behavior with process variables such as motor load, flow rate, and bearing temperature. When System 1 identifies a developing imbalance or misalignment condition, it can communicate with the plant’s DCS or PLC — such as a Rockwell Automation ControlLogix L85E or a Siemens S7-1500 series controller — to adjust motor speed setpoints via the connected variable frequency drive. A Danfoss FC-302 or ABB ACS880 VFD responding to these corrected setpoints will reduce motor speed to the minimum required for the actual process load, directly cutting kWh consumption without sacrificing throughput.

For power quality monitoring at the MCC level, a Schneider Electric PowerLogic ION7650 Power Meter provides real-time kW, kVAR, and harmonic distortion data, allowing energy managers to correlate vibration-driven load changes with actual power draw reductions. Communication between these layers typically runs over PROFIBUS DP, Modbus TCP, or EtherNet/IP, with the 3500 rack’s communication gateway module bridging the Bently Nevada monitoring data into the plant’s standard industrial Ethernet backbone. The result is a closed-loop maintenance planning system where the 330903-00-02-10-02-05 Extension Cable is the critical first link — ensuring that every downstream energy decision is based on accurate, uncompromised vibration data.

Maintenance and Replacement Notes

Consider a petrochemical facility running a bank of centrifugal compressors at partial load for 18 hours per day. Without reliable vibration monitoring, operators typically run these machines at conservative fixed speeds to avoid the risk of undetected bearing failure — a strategy that wastes 8–15% of motor energy compared to load-optimized variable-speed operation. By deploying the Bently Nevada 3300 NSV system with 330903-00-02-10-02-05 Extension Cables at each compressor bearing measurement point, the facility gains continuous, high-confidence shaft displacement data that allows the control system to safely reduce compressor speed during low-demand periods.

The same principle applies to large cooling tower fan drives, boiler feed pumps, and paper machine roll drives. In each case, the extension cable’s role is to preserve the measurement accuracy that makes speed reduction safe. A degraded or incorrect cable introduces noise that widens the alarm deadband, forcing operators to maintain higher safety margins — which translates directly into higher average motor speeds and higher energy bills. The 330903-00-02-10-02-05, with its precision-matched impedance and shielded construction, eliminates this measurement uncertainty, allowing tighter alarm setpoints and more aggressive operational-efficiency speed profiles.

From a maintenance cost perspective, accurate vibration trending enabled by a reliable signal chain allows maintenance teams to shift from time-based to condition-based intervention schedules. Instead of replacing bearings every 6 months regardless of condition, technicians can extend service intervals to 10–14 months on healthy machines while catching genuinely degraded bearings weeks before failure. This reduces both maintenance labor costs and the unplanned downtime associated with post-failure restart procedures, which often require running equipment at elevated loads to re-establish process conditions. Every unit of the 330903-00-02-10-02-05 installed in a production line is therefore a direct investment in lower lifecycle energy cost, not just a spare part.

ZYPLC maintains ready stock of the 330903-00-02-10-02-05 and conducts outgoing electrical continuity and impedance verification on every unit before shipment. Standard lead time is 3–5 business days for stocked items, with expedited options available for urgent production requirements. All units are covered by a warranty terms confirmed during quotation against manufacturing defects.

Product Sourcing FAQ

Q1: How does the 330903-00-02-10-02-05 Extension Cable contribute to operational stability in a motor-driven system?
A: By maintaining signal integrity between the proximity probe and the 3300 NSV signal conditioner, this cable ensures that the vibration monitoring system receives accurate shaft displacement data. Accurate data allows the control system to safely reduce motor speed to the minimum required for actual process load, avoiding the unplanned downtime of running at fixed conservative speeds. The cable itself consumes no power — its contribution is enabling the precision measurement that makes load-optimized motor control safe and reliable.

Q2: Is the 330903-00-02-10-02-05 compatible with both the 3300 NSV and the 3500 series monitoring racks?
A: Yes. The 330903-00-02-10-02-05 is designed for the Bently Nevada 3300 series coaxial signal chain and is electrically compatible with 3500 series Proximitor I/O modules when used within the specified cable length budget. Always verify total system cable length (probe + extension + driver cable) against the 3300 NSV system documentation to ensure the combined length remains within the calibrated range for your specific probe and driver combination.

Q3: What is the recommended replacement interval, and how do I know when the cable needs to be changed?
A: There is no fixed time-based replacement interval for the 330903-00-02-10-02-05 under normal operating conditions. Replacement is indicated when System 1 or the 3500 rack reports a gap voltage drift outside the calibrated range that cannot be corrected by probe repositioning, or when physical inspection reveals connector corrosion, jacket damage, or kinking. ZYPLC recommends keeping one spare unit per monitored machine train to enable immediate swap-out during planned maintenance windows, minimizing downtime and avoiding the unplanned downtime of extended unmonitored operation.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
A: The warranty terms confirmed during quotation covers manufacturing defects in materials and workmanship, including connector integrity, cable shielding continuity, and impedance conformance. Before shipment, ZYPLC performs electrical continuity testing and visual inspection on every 330903-00-02-10-02-05 unit. Units that do not meet specification are quarantined and not shipped. Warranty claims are processed through ZYPLC’s after-sales team; contact plc.sales@zyplc.com with your order number and a description of the fault for rapid resolution.
