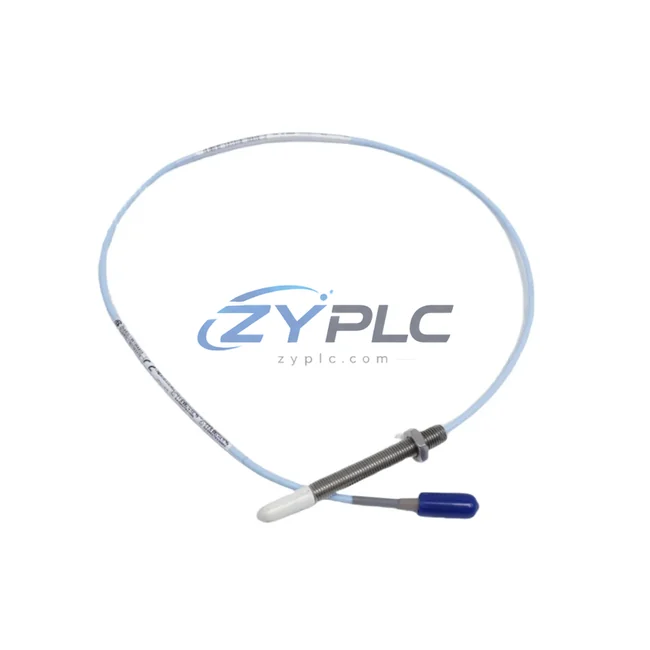

Bently Nevada 330903-00-05-10-02-05/CN Extension Cable

Bently Nevada 330903-00-05-10-02-05/CN Extension Cable: Precision Energy-Efficient Signal Transmission for 3300 NSV Automation

The Bently Nevada 330903-00-05-10-02-05/CN is a factory-certified extension cable engineered for the 3300 NSV (Non-contacting Vibration) proximity measurement system. Designed to maintain signal integrity across long cable runs in demanding industrial environments, this extension cable is a critical link between the proximity probe and the proximitor sensor, ensuring that vibration and position data reaches the monitoring system with zero degradation. In energy-intensive production facilities — from rotating machinery halls to turbine monitoring stations — the accuracy of this signal chain directly determines how efficiently energy is consumed, how quickly faults are detected, and how effectively maintenance resources are deployed.

In modern industrial automation, maintenance planning is not limited to drives and motors. It extends to every layer of the measurement and control architecture. A poorly terminated or mismatched extension cable introduces signal noise, forces the Bently Nevada 3300 XL 8mm Proximity Transducer System to compensate with higher gain settings, and ultimately degrades the quality of vibration data used by the plant’s condition monitoring platform. The 330903-00-05-10-02-05/CN eliminates this risk by providing a precisely matched 5-meter cable run with the correct impedance, shielding, and connector termination for the 3300 NSV system.

Product Specification Table

System Compatibility and Application

The 330903-00-05-10-02-05/CN extension cable operates as part of a three-component transducer system: the Bently Nevada 330730 8mm Proximity Probe, this extension cable, and the Bently Nevada 330180 Proximitor Sensor. Together, they feed real-time shaft displacement and vibration amplitude data into the Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which sits within the 3500 Series rack-based machinery protection system.

Within a complete plant maintenance planning architecture, the vibration data collected through this cable chain is consumed by the System 1 Condition Monitoring and Diagnostic Software, where it is correlated with process variables such as bearing temperature, lube oil pressure, and motor load current. When the Bently Nevada 3500/61 Temperature Monitor detects a rising bearing temperature trend simultaneously with an increase in 1X vibration amplitude reported through the 330903-00-05-10-02-05/CN signal path, the system can trigger an early warning before a catastrophic failure occurs — avoiding the massive energy spike associated with an uncontrolled shutdown and restart cycle.

On the drive side, the vibration data from this transducer system is often used in conjunction with variable frequency drive (VFD) feedback loops. When shaft vibration increases beyond a setpoint, the control system — typically a Bently Nevada 3500/22M Transient Data Interface combined with a DCS or PLC — can command the VFD to reduce motor speed, lowering energy consumption and mechanical stress simultaneously. This closed-loop interaction between the proximity measurement system and the drive control layer is one of the most effective maintenance planning strategies available in rotating machinery applications.

For facilities running Modbus RTU or PROFIBUS DP communication backbones, the 3500 Series rack integrates seamlessly with plant-level SCADA and maintenance planning systems, allowing the vibration data collected through the 330903-00-05-10-02-05/CN cable to be trended alongside kWh consumption data from power meters. This integration enables energy engineers to correlate mechanical degradation with unplanned downtime — identifying, for example, that a pump running with 0.3 mm of shaft runout is consuming 8% more power than its baseline specification.

Maintenance and Replacement Notes

In a typical centrifugal compressor train, the 330903-00-05-10-02-05/CN extension cable connects the proximity probe mounted on the compressor bearing housing to the proximitor sensor located in the junction box, which then feeds the 3500 Series monitoring rack in the control room. This arrangement allows continuous, real-time monitoring of shaft radial vibration and axial position — two parameters that are directly linked to energy efficiency.

When shaft alignment degrades, radial vibration increases. The energy required to maintain the same throughput rises because the rotating assembly is no longer operating at its hydraulic optimum. By detecting this degradation early through the 330903-00-05-10-02-05/CN signal chain, maintenance teams can schedule a precision alignment correction during a planned outage rather than reacting to an emergency trip. The difference in energy consumption between a well-aligned and a misaligned centrifugal pump can exceed 15% of rated power — a significant saving in facilities running multiple large pumps continuously.

Similarly, in electric motor applications monitored with the Bently Nevada 3300 XL proximity system, the extension cable enables detection of rotor eccentricity and bearing wear at an early stage. Motors operating with worn bearings draw higher current due to increased friction losses. Early detection through the vibration monitoring system — made possible by a correctly specified and installed extension cable like the 330903-00-05-10-02-05/CN — allows bearing replacement before the motor’s energy consumption climbs significantly above its nameplate efficiency rating.

Beyond operational stability, the reduction in unplanned downtime directly improves Overall Equipment Effectiveness (OEE). A single unplanned trip on a critical compressor can result in hours of lost production and the energy cost of a cold restart. The 330903-00-05-10-02-05/CN, as a precision-matched system component, ensures that the vibration data driving these maintenance decisions is accurate, stable, and free from cable-induced noise artifacts.

Every unit supplied by ZYPLC undergoes a full outgoing quality inspection, including continuity testing, insulation resistance verification, and connector integrity checks, before shipment. Stock is maintained on-hand to support urgent replacement requirements, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the 330903-00-05-10-02-05/CN extension cable contribute to operational stability in rotating machinery applications?
The cable ensures that vibration and shaft position data from the proximity probe reaches the 3500 Series monitoring system without signal degradation. Accurate data enables early detection of mechanical faults — such as misalignment, imbalance, and bearing wear — that cause rotating equipment to consume more energy than its design specification. By enabling timely corrective maintenance, the cable indirectly reduces unplanned downtime across the machinery train.

Q2: Is the 330903-00-05-10-02-05/CN compatible with the full Bently Nevada 3300 and 3500 Series ecosystem?
Yes. This extension cable is designed specifically for the Bently Nevada 3300 NSV proximity transducer system and is fully compatible with the 3300 XL 8mm probe series and the 3500 Series machinery protection rack. It should be used with the matching Bently Nevada 330180 Proximitor Sensor to ensure system calibration and gap voltage specifications are maintained.

Q3: What is the recommended replacement interval, and how should the cable be tested before installation?
Bently Nevada recommends inspecting extension cables during each planned maintenance outage for signs of insulation damage, connector corrosion, or mechanical stress at the termination points. Before installation, perform a continuity check and verify insulation resistance exceeds the system specification. ZYPLC conducts these tests on all units prior to shipment, and the warranty terms confirmed during quotation covers any factory defects identified after installation.

Q4: Can this cable be used as a direct replacement for a failed unit without recalibrating the entire transducer system?
In most cases, yes — provided the replacement cable is the same length and part number as the original. The 3300 NSV system gap voltage and sensitivity are calibrated for a specific total cable length (probe cable + extension cable). Substituting a different length or a non-OEM cable may shift the gap voltage setpoint and require recalibration of the proximitor. Using the correct 330903-00-05-10-02-05/CN replacement ensures a like-for-like swap with no recalibration required.
