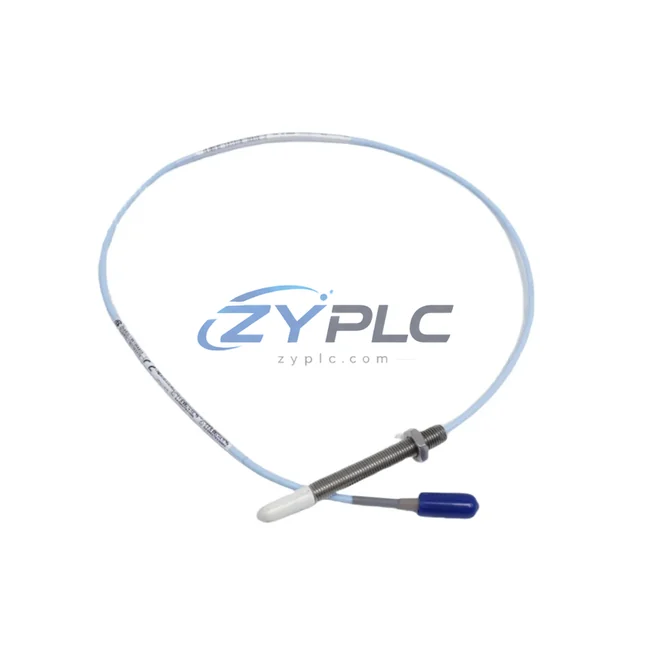

Bently Nevada 330903-00-09-10-02-05/CN Industrial Vibration Cable for 3300 NSV Systems

Bently Nevada 330903-00-09-10-02-05/CN Industrial Vibration Cable for 3300 NSV Systems: Precision Signal Transmission Across the Smart Factory Data Chain

In modern industrial environments where machine health directly determines production uptime, the integrity of every signal path matters. The Bently Nevada 330903-00-09-10-02-05/CN is a precision-engineered extension cable designed for the Bently Nevada 3300 NSV (Non-contact Shaft Vibration) monitoring series, providing a reliable, low-noise signal conduit between proximity probes and vibration monitors. This cable is a critical link in the continuous data chain that connects rotating machinery to plant-wide condition monitoring systems, SCADA platforms, and predictive maintenance workflows.

As industrial facilities move toward fully connected smart factory architectures, the demand for signal-accurate, interference-resistant cabling has never been greater. The 330903-00-09-10-02-05/CN is engineered to meet these demands, delivering consistent analog signal transmission across extended cable runs without compromising the measurement fidelity that the Bently Nevada 3300 Series monitoring system depends on.

Compatibility & Integration Notes

Connected Automation Data Flow

The Bently Nevada 330903-00-09-10-02-05/CN extension cable sits at the very first stage of the industrial condition monitoring data chain — the signal acquisition layer. It connects the Bently Nevada 3300 XL Proximitor Sensor to the 3300 NSV Vibration Monitor, carrying the raw eddy-current proximity signal with minimal attenuation and maximum shielding against electromagnetic interference common in industrial environments.

Once the signal reaches the 3300 NSV Monitor, it is processed and converted into standardized outputs — typically 4–20 mA analog or digital values — that feed directly into plant-level control and monitoring infrastructure. In many installations, this output is routed through a Bently Nevada 3500 Series Rack or interfaced with a Modbus RTU-to-Ethernet gateway, enabling the vibration data to be consumed by Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix controllers for integrated machine protection logic.

From the PLC layer, real-time vibration data flows upward to SCADA systems such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation, where operators monitor shaft displacement trends, set alarm thresholds, and trigger automated shutdown sequences when vibration exceeds safe operating limits. HMI panels on the plant floor — including Siemens TP700 Comfort or Rockwell PanelView Plus — display live vibration readings, giving maintenance teams immediate visibility into machine health without leaving the production area.

For facilities implementing predictive maintenance strategies, the data path continues to Bently Nevada System 1 Software, an asset performance management platform that aggregates vibration, temperature, and process data from multiple machines. System 1 applies trend analysis and alarm correlation to identify early-stage bearing wear, rotor imbalance, or misalignment — conditions that the 330903-00-09-10-02-05/CN cable helps detect by ensuring signal integrity from the very first measurement point.

In distributed plant architectures, edge gateways such as the Moxa MGate series or Advantech ADAM-6000 modules collect the processed vibration data and transmit it over Industrial Ethernet (PROFINET or EtherNet/IP) to centralized data historians or cloud-based IIoT platforms. Remote I/O modules — including Phoenix Contact Axioline or Beckhoff EtherCAT terminals — may also be integrated to extend monitoring coverage across geographically distributed assets such as pipeline compressor stations or offshore platforms.

Variable frequency drives (VFDs) controlling the motors connected to monitored shafts — such as the ABB ACS880 or Siemens SINAMICS G120 — can receive feedback signals derived from the vibration monitoring chain, enabling speed adjustments that reduce mechanical stress when abnormal vibration patterns are detected. This closed-loop integration between the vibration monitoring system and the drive layer is a hallmark of advanced smart factory implementations, and it begins with reliable signal transmission through cables like the 330903-00-09-10-02-05/CN.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial condition monitoring is data isolation — the inability to correlate machine health data from proprietary monitoring systems with broader plant control and business intelligence platforms. The Bently Nevada 330903-00-09-10-02-05/CN extension cable, as part of the 3300 NSV monitoring ecosystem, is designed to integrate into open industrial architectures that break down these data silos.

Many older facilities operate with protocol fragmentation: vibration monitors output analog signals that are not natively compatible with modern Ethernet-based SCADA or MES systems. By pairing the 3300 NSV monitor with a Modbus RTU or PROFIBUS gateway, plant engineers can digitize and transmit vibration data across the plant network, making it available to ERP systems for maintenance scheduling and spare parts procurement — eliminating the manual data collection rounds that delay fault response.

Remote monitoring is another area where this cable’s role is critical. In unmanned substations, remote pump stations, or offshore compressor platforms, the 330903-00-09-10-02-05/CN ensures that proximity probe signals reach the monitor with full fidelity over extended cable runs, enabling reliable remote diagnostics without on-site intervention. When integrated with cellular or satellite-connected edge gateways, the vibration data can be accessed from any location, supporting 24/7 remote condition monitoring and reducing the need for costly site visits.

Production line transparency is achieved when every rotating asset — motors, pumps, compressors, turbines, gearboxes — is connected to a unified monitoring network. The 330903-00-09-10-02-05/CN supports this vision by providing the reliable signal foundation that makes machine-level data available at the system level. As facilities scale their monitoring coverage, additional 3300 NSV channels can be added without redesigning the signal infrastructure, ensuring system expandability as production capacity grows.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify cable continuity, shielding integrity, and connector compatibility with Bently Nevada 3300 Series hardware. This ensures that every 330903-00-09-10-02-05/CN cable arrives ready for immediate installation, minimizing commissioning time and reducing the risk of signal errors during startup.

Industrial Connectivity FAQ

Q1: Is the 330903-00-09-10-02-05/CN compatible with all Bently Nevada 3300 Series monitors?
A: Yes. The 330903-00-09-10-02-05/CN is designed for use with the Bently Nevada 3300 NSV series and is compatible with 3300 XL Proximitor Sensors and 3300 NSV Monitors. It is also interoperable with 3500 Series rack systems when used with appropriate interface modules. Always verify connector type and cable length specifications against your specific monitor configuration before installation.

Q2: Can this extension cable be integrated with SCADA or DCS systems?
A: The cable itself carries the analog proximity signal between the probe and the monitor. Integration with SCADA or DCS platforms is achieved at the monitor output level, typically via 4–20 mA analog outputs or through Modbus RTU/Ethernet gateways connected to the 3300 NSV monitor. This makes the vibration data available to Wonderware, iFIX, Ignition, or any OPC-UA compatible SCADA platform.

Q3: What measures ensure signal stability over long cable runs in electrically noisy environments?
A: The 330903-00-09-10-02-05/CN features coaxial shielded construction that attenuates electromagnetic interference from variable frequency drives, high-voltage switchgear, and other industrial noise sources. Proper grounding at the monitor end and adherence to Bently Nevada installation guidelines are essential for maintaining signal integrity across extended runs in high-EMI environments.

Q4: What warranty and support does ZYPLC provide for this product?
A: All Bently Nevada 330903-00-09-10-02-05/CN extension cables supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit is tested prior to shipment to verify electrical performance. Our technical team is available to assist with compatibility verification, installation guidance, and post-sale support. Contact us at plc.sales@zyplc.com or +86 19859288691 for assistance.
