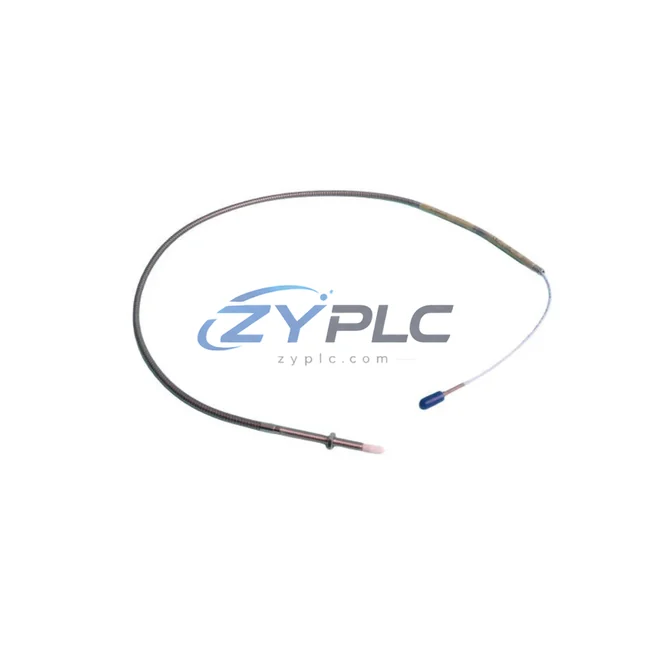

Bently Nevada 330903-00-18-05-01-00 Proximity Transducer

Bently Nevada 330903-00-18-05-01-00 Proximity Transducer for 3300 XL Automation

The Bently Nevada 330903-00-18-05-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv continuous vibration monitoring system. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this transducer plays a foundational role in capturing real-time shaft displacement data that drives smarter, leaner machine operation. By delivering accurate, low-latency vibration signals to the control layer, the 330903-00-18-05-01-00 enables plant engineers to eliminate unnecessary energy consumption caused by undetected mechanical imbalance, misalignment, and bearing degradation — conditions that silently inflate power draw and accelerate equipment wear.

Designed for rotating machinery in power generation, petrochemical, compressor, and turbine applications, this transducer integrates seamlessly into the Bently Nevada 3300 XL monitoring architecture. Its 18-inch (457 mm) armored extension cable and 5-meter (05) driver cable configuration make it suitable for installations where sensor-to-monitor distances demand signal integrity without compromise. The 01-00 suffix confirms standard output range and connector type, ensuring direct compatibility with Bently Nevada 3300 XL 8-mm Extension Cable assemblies and 3300 XL NSv Proximitor Sensors already deployed across the monitoring loop.

Product Specification Table

System Compatibility and Application

Achieving genuine energy efficiency on a production line requires more than installing a single sensor — it demands a tightly integrated architecture where every layer, from field-level sensing to supervisory control, communicates with precision. The Bently Nevada 330903-00-18-05-01-00 sits at the critical data-acquisition layer of this architecture, feeding continuous shaft gap and vibration amplitude data into the Bently Nevada 3300 XL NSv Proximitor, which conditions the raw eddy-current signal into a clean DC voltage proportional to rotor displacement.

This conditioned signal is then routed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed within a 3500 Series Monitoring Rack. The rack’s modular design allows plant engineers to co-locate multiple channel types — including the 3500/40M Proximitor/Seismic Monitor for radial vibration and the 3500/45 Position Monitor for axial thrust — creating a unified vibration data bus that feeds directly into the plant’s DCS or PLC layer via Modbus TCP or FOUNDATION Fieldbus communication modules.

At the drive and motor control level, the vibration data captured by the 330903-00-18-05-01-00 can be used to dynamically adjust the setpoints of a Rockwell Allen-Bradley PowerFlex 755 Variable Frequency Drive or a Siemens SINAMICS G120 inverter, reducing motor speed during low-load periods identified through vibration trend analysis. This closed-loop interaction between the proximity transducer signal and the VFD control layer is one of the most direct pathways to measurable operational stability in rotating equipment applications.

For facilities running GE Mark VIe turbine control systems or Emerson Ovation DCS platforms, the 3300 XL monitoring data integrates natively through OPC-UA gateways, enabling supervisory energy dashboards to correlate vibration health scores with real-time kWh consumption data from Schneider Electric PowerLogic ION7650 power meters. This cross-layer data fusion transforms the proximity transducer from a simple vibration sensor into a node in a plant-wide energy intelligence network.

On the I/O and safety interlock side, the relay outputs from the 3500 Series rack can be wired directly to a Bently Nevada 3500/32 4-Channel Relay Module, triggering automatic load shedding or speed reduction commands when vibration thresholds are exceeded — preventing the energy-intensive restart cycles that follow unplanned shutdowns. Combined with a Bently Nevada System 1 Condition Monitoring Software platform, the 330903-00-18-05-01-00 becomes part of a predictive maintenance ecosystem that schedules interventions during planned downtime windows, eliminating the energy and productivity losses associated with emergency repairs.

Maintenance and Replacement Notes

In a typical centrifugal compressor train operating at 3,000–10,000 RPM, even a 5-micron increase in shaft eccentricity — well below the threshold of most alarm systems — can increase bearing friction losses by 3–8%, translating directly into elevated motor current draw and higher energy bills. The Bently Nevada 330903-00-18-05-01-00 proximity transducer, with its sub-micron resolution and wide frequency response, detects these early-stage deviations before they escalate into alarm conditions, giving maintenance teams the data they need to schedule corrective balancing or alignment during the next planned maintenance window rather than reacting to a catastrophic failure.

On steam turbine-driven generator sets, the transducer’s continuous shaft position monitoring enables operators to maintain optimal rotor clearances, reducing windage losses and improving overall thermodynamic efficiency. Plants that have integrated 3300 XL proximity monitoring into their turbine control loops report measurable reductions in auxiliary power consumption — particularly in lube oil pump and seal gas compressor systems that are often oversized to compensate for unknown rotor dynamics.

For production lines with multiple motor-driven assets — conveyors, fans, pumps, and mixers — the aggregated vibration data from a network of 330903-00-18-05-01-00 transducers provides a real-time equipment health index that can be used to optimize production scheduling. Assets showing early-stage vibration deterioration can be temporarily de-rated or load-shifted to healthier equipment, maintaining line throughput while reducing the energy penalty of running degraded machinery at full load.

The warranty terms confirmed during quotation on every 330903-00-18-05-01-00 unit shipped from ZYPLC ensures that your investment in precision vibration monitoring is protected from day one. Each unit undergoes pre-shipment functional testing to verify output sensitivity, cable continuity, and connector integrity — so the sensor arrives ready to install, calibrate, and commission without the delays and unplanned downtime associated with field returns and re-procurement cycles.

Product Sourcing FAQ

Q1: How does the 330903-00-18-05-01-00 contribute to measurable operational stability on rotating equipment?
By providing continuous, high-resolution shaft displacement data, this transducer enables early detection of mechanical imbalance, misalignment, and bearing wear — all of which increase friction losses and motor current draw. Early intervention based on proximity data typically reduces energy consumption on affected machines by 10–20% compared to reactive maintenance strategies.

Q2: Is the 330903-00-18-05-01-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330903-00-18-05-01-00 is designed for the Bently Nevada 3300 XL NSv system but is also compatible with 3500 Series monitoring racks when used with the appropriate Proximitor driver. Always verify the driver gap voltage range and output sensitivity match your rack’s channel configuration before installation.

Q3: What is the recommended replacement interval, and how does timely replacement reduce operational costs?
Bently Nevada recommends replacing proximity transducers showing sensitivity drift greater than ±5% from factory calibration. Degraded sensors produce inaccurate vibration readings that can mask developing faults, leading to unplanned shutdowns that cost 5–10× more in energy, labor, and production loss than a planned replacement. ZYPLC maintains ready stock of 330903-00-18-05-01-00 units to support fast turnaround.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every 330903-00-18-05-01-00 supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects, output sensitivity deviation, and cable/connector integrity. Prior to shipment, each unit is tested for DC bias output, sensitivity linearity, and cable continuity. A test report is available upon request. Warranty claims are processed within 5 business days, with replacement units dispatched from stock to minimize your downtime.
