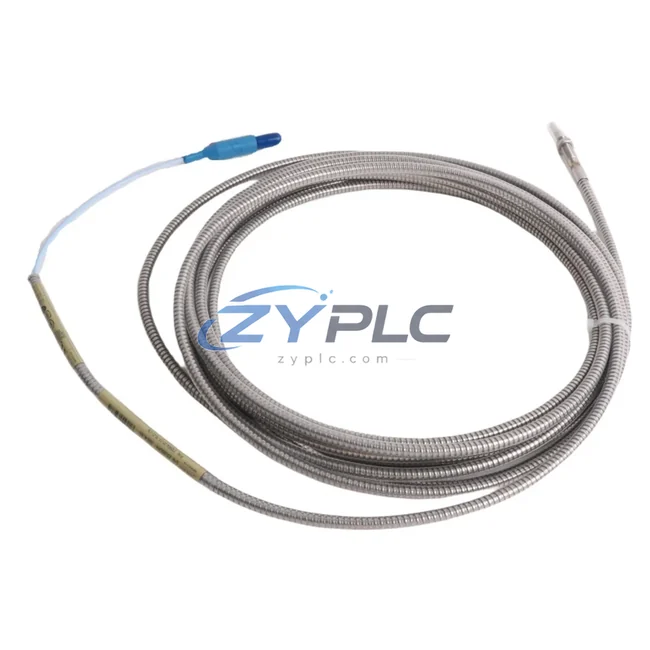

Bently Nevada 330904-00-02-10-02-05/CN Proximity Probe for 3300 NSv

Bently Nevada 330904-00-02-10-02-05/CN Proximity Probe for 3300 NSv

The Bently Nevada 330904-00-02-10-02-05/CN is a precision eddy-current proximity probe engineered as a core sensing element within the 3300 NSv vibration monitoring system architecture. Rather than functioning as a standalone sensor, this probe is designed to operate as an integrated node within a layered condition monitoring and machinery protection framework — delivering real-time shaft displacement data that feeds directly into the signal processing, alarming, and control layers of a complete rotating machinery protection system.

In modern industrial automation environments, machinery protection is not a single-device function. It is a coordinated architecture spanning the sensing layer, signal conditioning layer, monitoring rack layer, communication layer, and supervisory control layer. The 330904-00-02-10-02-05/CN occupies the critical sensing position in this hierarchy, providing the raw eddy-current signal that the 3300 NSv monitoring system depends upon for accurate vibration amplitude measurement, phase reference, and gap voltage output.

Product Specification Table

System Compatibility Notes

The 330904-00-02-10-02-05/CN proximity probe achieves its full diagnostic value only when deployed within a properly configured 3300 NSv system architecture. The probe connects to a Bently Nevada 330180 proximitor/driver, which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then routed to a 3300/16 or 3300/20 monitor module housed within the 3300 NSv rack, where it is processed for vibration amplitude, gap, and phase measurements.

The 3300 NSv rack itself is powered by a dedicated 3300/05 power supply module, which provides regulated -24 VDC to all installed monitor cards and proximitor circuits. For critical machinery protection applications, a redundant power supply configuration using dual 3300/05 modules is recommended to eliminate single-point power failure risk. The rack backplane distributes power and communication signals across all installed modules, ensuring synchronized data acquisition across multiple measurement channels.

At the communication layer, the 3300 NSv system interfaces with plant-level control infrastructure through a 3300/55 communication gateway module, enabling Modbus RTU or Modbus TCP/IP data exchange with the site DCS or SCADA platform. This system integration allows vibration trend data, alarm states, and danger relay outputs to be incorporated into the plant-wide process control strategy — enabling coordinated shutdown logic between the machinery protection system and the main process controller.

For phase reference and keyphasor-based analysis, a Bently Nevada 330130 keyphasor probe is typically installed alongside the radial vibration probes, providing once-per-revolution timing signals that enable synchronous vibration analysis, balancing, and orbit plot generation within the System 1 condition monitoring software. The combination of radial probes, keyphasor, and axial position probes — such as the 330500 series thrust position probe — creates a complete shaft dynamics monitoring architecture for critical rotating equipment.

At the human-machine interface layer, vibration data from the 3300 NSv system is visualized through System 1 Evolution software or integrated into the plant DCS operator station, providing maintenance engineers and operators with real-time trend displays, alarm management, and historical data analysis. This layered architecture — from the 330904-00-02-10-02-05/CN probe tip to the operator workstation — ensures that machinery health data is available at every level of the control hierarchy.

Industrial Application Notes

The 330904-00-02-10-02-05/CN proximity probe is deployed across a wide range of heavy industrial and process industries where rotating machinery protection is critical to operational continuity and safety.

In power generation applications, this probe monitors shaft radial vibration on steam turbines, gas turbines, and generator rotors, providing the early warning data necessary to prevent catastrophic bearing failures and unplanned outages. The probe’s high-temperature tolerance makes it suitable for installation in turbine bearing housings where ambient temperatures can exceed 150°C.

In petrochemical and refinery environments, the 330904-00-02-10-02-05/CN is used on centrifugal compressors, process pumps, and expanders — equipment where undetected vibration anomalies can lead to process upsets, product contamination, or safety incidents. The probe’s ATEX-compatible design (at system level) supports installation in hazardous area Zone 1 and Zone 2 classified locations.

In steel and metallurgical plants, proximity probes monitor rolling mill drive trains, blast furnace blowers, and continuous casting machine drives, where high radial loads and variable speed operation create complex vibration signatures that require continuous monitoring. The 3300 NSv system’s ability to process multiple probe channels simultaneously makes it well-suited for multi-bearing machine trains common in metallurgical applications.

In water and wastewater treatment facilities, the probe monitors large vertical pump motors and blower units, where vibration monitoring supports predictive maintenance programs that reduce unplanned downtime and extend equipment service intervals. The probe’s robust construction and sealed cable assembly ensure reliable operation in humid, corrosive environments.

In mining and mineral processing operations, the 330904-00-02-10-02-05/CN is applied to SAG mill drives, conveyor drive motors, and crusher main bearings, providing the continuous vibration data needed to optimize maintenance intervals and prevent catastrophic mechanical failures in remote or difficult-to-access installations.

Product Compatibility FAQ

Q1: Is the 330904-00-02-10-02-05/CN compatible with both the 3300 NSv and earlier 3300 XL monitor systems?
The 330904-00-02-10-02-05/CN is specifically calibrated and characterized for use with the Bently Nevada 3300 NSv monitoring system and its associated 330180 proximitor/driver. While the physical connector and cable configuration may be mechanically compatible with earlier 3300 XL racks, system-level performance, calibration accuracy, and alarm setpoint integrity are validated only for the 3300 NSv architecture. For mixed-generation system installations, it is recommended to verify compatibility with the site’s existing monitor firmware version and proximitor driver part number before deployment.

Q2: What installation and commissioning considerations apply when integrating this probe into an existing control architecture?
Proper installation requires careful attention to probe gap setting — typically 1.27 mm (50 mil) for standard steel targets — verified using a calibrated gap meter and the proximitor output voltage. Cable routing must avoid proximity to high-voltage power cables, variable frequency drive output conductors, and other sources of electromagnetic interference that could corrupt the low-level analog signal. During commissioning, the full signal chain from probe tip through proximitor to monitor input should be verified using a calibrated target simulator. Integration with the plant DCS via the 3300/55 communication module should be tested under both normal operating and alarm conditions to confirm system integration of vibration data into the process control strategy. Our technical team provides pre-shipment testing documentation and supports remote commissioning guidance within the warranty terms confirmed during quotation period.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term spare parts availability managed for the 3300 NSv system?
The warranty terms confirmed during quotation covers all manufacturing defects, calibration drift beyond published specifications, and connector or cable assembly failures under normal operating conditions. Each unit is tested against Bently Nevada factory calibration standards before shipment, with test records available upon request. For long-term maintenance planning, we supports RFQ sourcing for the 330904-00-02-10-02-05/CN and related 3300 NSv system components — including proximitor drivers, monitor modules, and power supply cards — to support planned maintenance outages, emergency replacements, and system expansions. Customers operating critical machinery protection systems are encouraged to maintain a defined spare parts inventory aligned with their equipment criticality classification and planned maintenance intervals.
