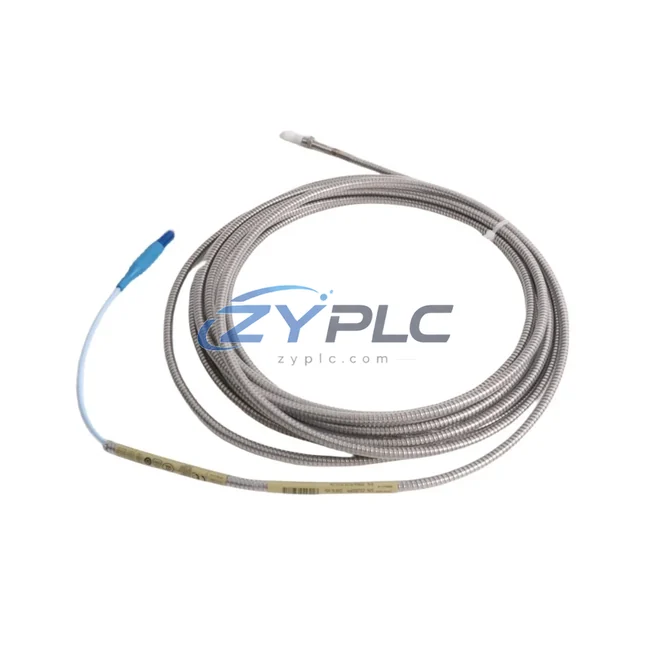

The Bently Nevada 330904-00-03-05-02-00 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 NSV (Non-contacting Vibration) monitoring architecture. Unlike standalone vibration sensors, this probe is designed from the ground up to function as an integrated node within a layered industrial control system — delivering real-time shaft displacement data that feeds directly into protection logic, condition monitoring platforms, and plant-wide DCS or PLC networks. Its role in the control hierarchy spans from the physical measurement layer through to the supervisory control layer, making it a foundational component for rotating machinery protection in power generation, petrochemical, and heavy industrial environments.

In a complete 3300 NSV system architecture, the 330904-00-03-05-02-00 probe operates in conjunction with the Bently Nevada 330130 extension cable and the 330180 proximitor/oscillator, forming a three-component sensing chain. The proximitor converts the probe’s raw eddy-current signal into a calibrated DC voltage proportional to the gap between the probe tip and the rotating shaft. This conditioned signal is then routed to a 3300/16 or 3300/20 monitor module housed within the 3300 rack system, where it is processed against configurable alert and danger setpoints. The monitor outputs discrete relay contacts to the plant safety interlock system and transmits 4–20 mA or digital signals to the DCS — typically a Honeywell Experion, Emerson DeltaV, or ABB 800xA platform — enabling seamless system integration across the automation hierarchy.

From a system architecture perspective, the 330904-00-03-05-02-00 contributes to four critical design objectives: measurement precision, signal integrity, architectural redundancy, and long-term maintainability. Its 5 mm (0.197 in) tip diameter and 3300 NSV calibration range ensure accurate gap measurement across the full operating envelope of high-speed rotating equipment. The probe’s armored cable construction and stainless-steel housing provide robust EMI shielding, preserving signal fidelity in electrically noisy control cabinet environments where variable frequency drives, power supplies, and relay modules generate significant interference. For redundant monitoring configurations — common in API 670-compliant machinery protection systems — two probes are typically installed 90° apart (X–Y orientation) on the same shaft journal, with each probe connected to an independent monitor channel. This dual-channel redundancy ensures that a single probe or cable failure does not result in a loss of protection, maintaining system availability in critical applications.

The probe integrates directly into the 3300 rack’s I/O layer without requiring signal conditioning adapters or protocol converters, simplifying both initial commissioning and ongoing maintenance. During system startup, engineers use the Bently Nevada System 1 software platform to verify gap voltage, sensitivity, and calibration linearity for each installed probe. The System 1 platform also supports continuous online diagnostics, flagging probe degradation, cable faults, or proximitor drift before they affect measurement accuracy — a capability that significantly reduces unplanned downtime in facilities operating on condition-based maintenance programs. For facilities managing large rotating machinery fleets, the ability to standardize on the 330904-00-03-05-02-00 across multiple machine trains simplifies spare parts inventory, reduces technician training requirements, and accelerates fault response times.

In layered automation systems, the 330904-00-03-05-02-00 sits at the intersection of the field instrumentation layer and the control/protection layer. Its output feeds not only the local 3300 monitor rack but also — via the monitor’s communication outputs — the plant historian, the condition monitoring workstation, and, in some architectures, the safety instrumented system (SIS). This multi-layer data flow enables operators to correlate vibration trends with process variables such as bearing temperature (monitored by Bently Nevada 3300/55 temperature monitors), lube oil pressure, and load — providing a holistic view of machine health that supports both real-time protection and long-term reliability engineering. The probe’s compatibility with the broader Bently Nevada 3500 series platform also provides a clear upgrade path for facilities transitioning from 3300-series to 3500-series rack architectures, protecting the capital investment in field wiring and installation hardware.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and are available for shipment arranged after confirmation from verified inventory. Each probe is inspected prior to shipment to confirm physical integrity, connector condition, and cable continuity, ensuring that the unit arrives ready for installation without requiring pre-commissioning bench testing.

Product Specification Table

System Compatibility Notes

The 330904-00-03-05-02-00 proximity probe achieves its full architectural value only when deployed within a coordinated system design. In a typical 3300 NSV rack installation, the probe is paired with the Bently Nevada 330130-080-00-00 extension cable, which bridges the distance between the probe mounting location on the machine casing and the proximitor mounted on the junction box or rack. The Bently Nevada 330180-X1-05 proximitor/oscillator provides the oscillator drive signal to the probe and converts the gap-proportional impedance change into a calibrated DC voltage output, which is then wired to the Bently Nevada 3300/16 dual-channel monitor or the 3300/20 four-channel monitor depending on the number of measurement points per machine train.

Within the 3300 rack, the monitor modules are powered by the Bently Nevada 3300/05 power supply module, which provides regulated 24 VDC to all installed monitor cards. For critical applications requiring continuous availability, a redundant power supply configuration using two 3300/05 modules in parallel is standard practice. The rack’s backplane distributes both power and communication signals to all installed modules, including 3300/55 temperature monitor modules used for bearing RTD or thermocouple inputs — allowing vibration and temperature data to be correlated within the same rack and transmitted to the DCS via a single communication gateway.

At the network layer, the 3300 rack communicates with the plant DCS or historian via the Bently Nevada 3300/95 communication gateway, which supports Modbus RTU, Modbus TCP/IP, and OPC DA protocols. This gateway enables the vibration data collected by the 330904-00-03-05-02-00 probe to be integrated into the plant-wide SCADA or historian — such as OSIsoft PI — alongside process variables from the DCS I/O modules, providing operators with a unified view of machine and process health. For facilities using the Bently Nevada System 1 Evolution condition monitoring platform, the gateway also supports direct System 1 connectivity, enabling advanced analytics such as orbit plots, trend analysis, and alarm management from a centralized workstation.

Industrial Application Notes

The 330904-00-03-05-02-00 is deployed across a wide range of heavy industrial applications where rotating machinery protection is critical to process continuity and personnel safety. In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the probe monitors shaft radial vibration and position on the main rotor and bearing journals, providing the primary input to the turbine protection system. In petrochemical and refinery environments, it is used on centrifugal compressors, pumps, and expanders in API 670-compliant machinery protection systems, where continuous vibration monitoring is a regulatory requirement for unattended operation.

In water treatment and pumping stations, the probe is installed on large vertical turbine pumps and horizontal split-case pumps, where early detection of bearing wear or rotor imbalance prevents catastrophic failures that would interrupt water supply. In mining and mineral processing facilities, it monitors the main drive shafts of SAG mills, ball mills, and conveyor drive systems, where the high dynamic loads and variable operating conditions make continuous vibration monitoring essential for predictive maintenance programs. In metallurgical and steel plant applications, the probe is used on rolling mill drive trains, where precise shaft position monitoring is required to maintain product dimensional tolerances and prevent bearing failures that would cause costly production stoppages.

Across all these applications, the 330904-00-03-05-02-00 contributes to a layered automation strategy in which field-level sensing, rack-level protection, and plant-level monitoring work together to maximize equipment availability, minimize unplanned downtime, and support long-term reliability engineering programs.

Product Compatibility FAQ

Q1: Is the 330904-00-03-05-02-00 compatible with both the 3300 and 3500 series rack systems?
The 330904-00-03-05-02-00 is calibrated and specified for use with the Bently Nevada 3300 NSV system, including the 330180 proximitor and 3300/16 or 3300/20 monitor modules. While the physical probe and cable assembly may be mechanically compatible with 3500-series installations, the calibration and sensitivity specifications are optimized for the 3300 NSV architecture. For 3500-series applications, Bently Nevada offers dedicated probe assemblies calibrated to the 3500/42 or 3500/40M monitor modules. ZYPLC can advise on the correct part number for your specific rack system and application requirements.

Q2: How should the 330904-00-03-05-02-00 be installed in a redundant X–Y vibration monitoring configuration?
For API 670-compliant redundant monitoring, two probes are installed 90° apart on the same shaft journal — one in the X (horizontal) plane and one in the Y (vertical) plane. Each probe is connected to an independent channel on the 3300/16 or 3300/20 monitor, ensuring that a single probe or cable failure does not result in loss of protection. The monitor’s dual-channel architecture processes both signals independently, generating separate alert and danger relay outputs for each axis. During commissioning, gap voltage for each probe should be verified using the System 1 software or a calibrated DC voltmeter, with the target gap set to the midpoint of the linear range (typically 1.0–1.5 mm) to maximize dynamic measurement range in both directions.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
All Bently Nevada 330904-00-03-05-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, component failures, and calibration drift under normal operating conditions as specified in the Bently Nevada product documentation. Physical damage resulting from improper installation, overvoltage, or mechanical impact is not covered. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference number and a description of the fault. ZYPLC will arrange for inspection and, where the fault is confirmed as warranty-eligible, will provide a replacement unit or repair at no additional cost.
