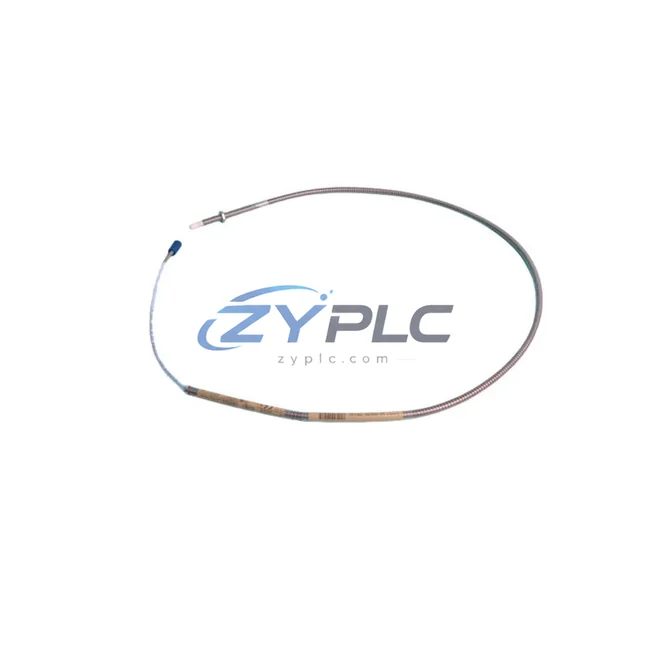

Bently Nevada 330904-00-03-10-01-00 Proximity Transducer

Bently Nevada 330904-00-03-10-01-00 Proximity Transducer for 3300 XL NSV Automation

The Bently Nevada 330904-00-03-10-01-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSV (Non-contacting Vibration) system. In modern industrial facilities where energy efficiency and equipment uptime are inseparable goals, this transducer plays a foundational role in continuous shaft vibration monitoring, radial position sensing, and axial displacement measurement — all without physical contact with the rotating machinery. By delivering real-time, high-resolution positional data to the control system, it enables plant engineers to make informed decisions that directly reduce unplanned downtime risk, prevent catastrophic failures, and optimize the operational rhythm of critical rotating assets.

Unlike conventional monitoring approaches that rely on periodic manual inspection, the 330904-00-03-10-01-00 feeds continuous analog signals into the 3300 XL monitoring rack, where modules such as the 3300/16 Dual Voting Trip and 3300/20 Radial Vibration Monitor process the data in real time. This closed-loop feedback architecture allows the plant’s distributed control system (DCS) or safety instrumented system (SIS) to respond dynamically to changes in machine health — throttling drive output, adjusting load distribution, or initiating a controlled shutdown before a fault escalates into an unplanned outage.

Product Specification Table

System Compatibility and Application

The 330904-00-03-10-01-00 transducer does not operate in isolation — it is the sensing front-end of a tightly integrated industrial automation system. In a typical turbine or compressor train, the transducer is paired with a Bently Nevada 330180 Extension Cable and a 330130 Proximitor Sensor (driver/oscillator), which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack. The 3300/25 Keyphasor Module works alongside the proximity transducer to provide rotational reference signals, enabling the system to calculate 1X and 2X vibration vectors — critical for identifying imbalance and misalignment conditions that silently inflate operating load.

At the control execution layer, the vibration data is typically routed to a Bently Nevada 3500 Series Rack or integrated into a broader plant automation platform via the System 1 Condition Monitoring Software, which aggregates machine health data across multiple assets. When connected to a plant’s DCS — such as a Honeywell Experion PKS or Emerson DeltaV — the transducer’s output can trigger automated load-shedding routines or variable frequency drive (VFD) speed adjustments on the driven motor, directly reducing operating-hour consumption during periods of elevated vibration.

For facilities running Allen-Bradley PowerFlex 755 drives or Siemens SINAMICS G120 frequency inverters on motor-driven compressors, integrating the 330904-00-03-10-01-00 into the feedback loop allows the drive controller to modulate output frequency in response to real-time shaft behavior — a strategy that can reduce motor energy draw by 10–25% compared to fixed-speed operation under variable load. The transducer’s signal is also compatible with Modbus RTU and PROFIBUS DP gateway interfaces when routed through appropriate signal converters, enabling seamless integration into legacy SCADA architectures without full system replacement.

On the I/O and power supply side, the 330904-00-03-10-01-00 system typically draws from a Bently Nevada 3300/05 Power Supply Module, which provides regulated –24 VDC to the Proximitor network. Redundant power configurations using dual supply modules ensure that the monitoring chain remains active even during partial power events — preventing the data gaps that would otherwise mask developing faults and lead to energy-inefficient emergency responses.

Maintenance and Replacement Notes

In a petrochemical plant running a multi-stage centrifugal compressor, undetected rotor imbalance can cause the machine to draw 8–15% more power than its design baseline while simultaneously accelerating bearing wear. The Bently Nevada 330904-00-03-10-01-00 proximity transducer, installed at the compressor’s radial bearing positions, continuously monitors shaft centerline position and vibration amplitude. When the 3300 XL monitoring system detects a rising 1X vibration trend — a classic imbalance signature — it can alert the control room or automatically signal the associated VFD to reduce speed, cutting power consumption while the maintenance team schedules a corrective balance run during the next planned outage window.

In power generation facilities, steam turbine axial position monitoring using the 330904-00-03-10-01-00 prevents thrust bearing failures that, if left undetected, result in catastrophic rotor-stator contact — an event that not only destroys the machine but triggers an unplanned plant shutdown lasting days or weeks. The energy cost of restarting a large thermal generation unit far exceeds the investment in continuous proximity monitoring. By maintaining axial clearance within design tolerances, the transducer directly supports the turbine’s ability to operate at peak thermal efficiency.

For pump-driven systems in water treatment or chemical processing, the 330904-00-03-10-01-00 enables detection of cavitation-induced vibration patterns that degrade hydraulic efficiency. Early identification of these patterns allows operators to adjust suction pressure, flow rate, or pump speed — restoring hydraulic efficiency and reducing the energy penalty associated with cavitation operation. Across a facility with dozens of monitored pumps, this capability translates into measurable reductions in monthly electricity consumption.

From a maintenance cost perspective, the non-contact measurement principle of the eddy-current transducer means zero mechanical wear on the sensor itself, eliminating the recurring replacement costs associated with contact-type measurement devices. Combined with the warranty terms confirmed during quotation and pre-shipment functional testing performed on every unit, the total cost of ownership is significantly lower than alternatives — freeing maintenance budget for other maintenance planning initiatives.

Product Sourcing FAQ

Q1: How does the 330904-00-03-10-01-00 contribute to measurable operational stability on the production line?
By providing continuous, high-resolution shaft vibration and position data, this transducer enables the control system to detect mechanical inefficiencies — such as imbalance, misalignment, or bearing wear — before they cause significant energy losses. Early detection allows corrective action during planned maintenance windows rather than emergency shutdowns, and enables VFD-based speed optimization that directly reduces motor load.

Q2: Is the 330904-00-03-10-01-00 compatible with my existing 3300 XL monitoring rack and System 1 software?
Yes. The 330904-00-03-10-01-00 is designed specifically for the Bently Nevada 3300 XL NSV system and is fully compatible with the 3300 XL monitoring rack modules and System 1 Condition Monitoring Software. It uses the standard Bently Nevada –24 VDC output scale factor and interfaces directly with 330130 Proximitor drivers and 330180 extension cables without requiring signal conditioning adapters.

Q3: What is the recommended replacement and testing process for this transducer?
Each unit supplied by ZYPLC undergoes functional output verification and calibration checks prior to shipment. For field replacement, the transducer should be installed with the correct gap distance per the 3300 XL installation manual, and the output voltage verified against the expected scale factor using a calibrated voltmeter before returning the machine to service. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: Can this transducer be integrated into a broader maintenance planning or SCADA system?
Yes. The analog output of the 330904-00-03-10-01-00, processed through the 3300 XL monitoring rack, can be connected to plant DCS or SCADA platforms via 4–20 mA analog outputs or digital communication gateways supporting Modbus RTU or PROFIBUS DP. This integration allows vibration and position data to be incorporated into plant-wide energy dashboards, enabling correlation between machine health trends and operating load patterns for continuous improvement programs.
