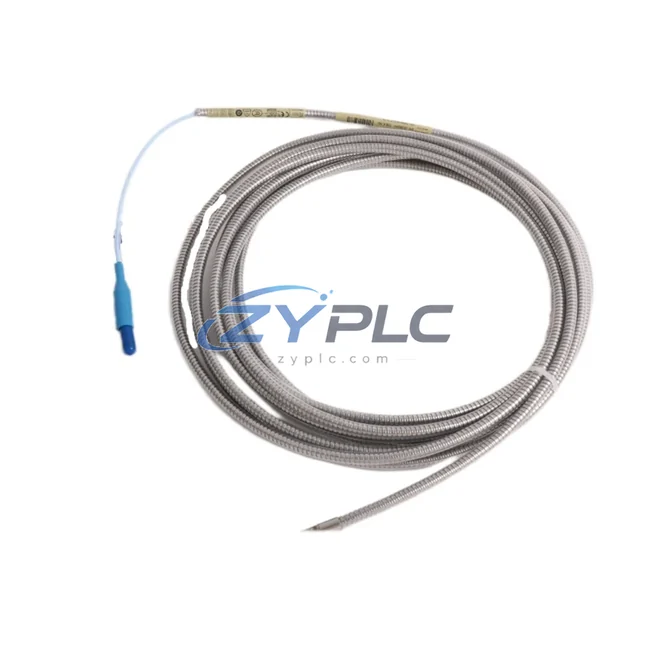

The Bently Nevada 330904-00-03-10-02-05 is a high-precision eddy-current proximity probe engineered for the 3300 NSV Series vibration monitoring platform. In modern smart factory environments, rotating machinery health is a mission-critical data source — and this probe serves as the front-end signal acquisition node in a continuous, real-time industrial data chain. From raw shaft displacement signals at the field device level, through protocol conversion and network transmission, all the way to SCADA dashboards and remote diagnostic centers, the 330904-00-03-10-02-05 anchors the entire condition monitoring architecture.

Designed to interface seamlessly with Bently Nevada 3300 XL series signal conditioners and proximitor modules, this probe delivers analog output signals that are ingested by the 3500 Series Machinery Protection System — a rack-based platform that aggregates vibration, position, and speed data across multiple measurement channels. The 3500 system then communicates over Modbus TCP/IP or OPC-UA to plant-level SCADA and historian platforms, enabling operators to visualize shaft orbit, gap voltage trends, and alarm states in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical turbomachinery or compressor protection architecture, the 330904-00-03-10-02-05 probe is mounted radially at the bearing housing, continuously measuring rotor shaft displacement with micron-level resolution. The analog signal travels through a matched extension cable to the Bently Nevada 3300 XL Proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage output. This conditioned signal feeds directly into the Bently Nevada 3500/40M Proximitor I/O Module housed in the 3500 rack system.

Within the 3500 rack, the 3500/20 Communication Gateway Module bridges the proprietary Bently Nevada data bus to plant Ethernet, publishing real-time vibration vectors, alarm states, and diagnostic data over Modbus TCP/IP. Upstream, a Rockwell Automation ControlLogix PLC or Siemens S7-400 DCS controller subscribes to this data stream, integrating machinery health signals with process variables such as flow, pressure, and temperature. The combined dataset is forwarded to an OSIsoft PI Historian or Wonderware SCADA platform, where operators monitor shaft orbit plots, trend gap voltage, and configure multi-level alarm thresholds.

For remote sites, an industrial edge gateway — such as a Moxa MGate MB3000 series Modbus-to-Ethernet converter or a Kepware KEPServerEX OPC-UA aggregator — collects data from multiple 3500 racks and tunnels it securely over fiber or cellular WAN to the central control room. HMI panels running GE iFIX or Inductive Automation Ignition display real-time vibration dashboards, while automated alarm notifications are dispatched to maintenance teams via SMS or email. This end-to-end data flow — from the 330904-00-03-10-02-05 probe tip to the enterprise asset management system — eliminates data silos and enables condition-based maintenance strategies that reduce downtime.

Solving Data Isolation in Industrial Sites

Legacy rotating machinery installations frequently suffer from protocol fragmentation: vibration monitoring systems operate on proprietary Bently Nevada communication buses, while process control runs on Profibus DP or HART, and plant management systems expect OPC-DA or REST API feeds. The result is data isolation — critical machinery health information trapped in standalone monitoring racks, invisible to the broader plant automation network.

The 330904-00-03-10-02-05, when integrated within the Bently Nevada 3500 platform, directly addresses this challenge. The 3500 system’s built-in Modbus TCP/IP and OPC-UA communication capabilities act as a universal protocol bridge, translating proprietary vibration data into standard industrial Ethernet formats consumable by any modern DCS, SCADA, or MES platform. Plant engineers can configure alarm relay outputs to trigger PLC-based safety interlocks, ensuring that a high-vibration event on a critical compressor automatically initiates a controlled shutdown sequence without operator intervention.

Remote diagnostics are equally transformed: instead of dispatching field technicians to read local displays, maintenance engineers access live shaft orbit data and historical trend plots from any networked workstation or mobile device. Predictive maintenance algorithms running on edge computing platforms analyze gap voltage drift patterns to forecast bearing wear weeks before failure — converting reactive maintenance into a proactive, data-driven discipline. System expansion is straightforward: additional 330904-series probes and 3500 I/O modules can be added to the rack without disrupting existing network configurations, supporting phased smart factory rollouts across multiple production lines.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330904-00-03-10-02-05 support when integrated with the 3500 system?
A: When used with the Bently Nevada 3500 Machinery Protection System, the 330904-00-03-10-02-05 probe’s data is accessible via Modbus TCP/IP and OPC-UA through the 3500/20 Communication Gateway. This enables direct integration with Siemens, Rockwell, and Schneider DCS/SCADA platforms without additional protocol converters.

Q2: How does the system ensure network stability and data integrity in high-vibration industrial environments?
A: The 3300 NSV series probe and extension cable system is designed for EMI-resistant signal transmission. The coaxial cable assembly maintains signal integrity over distances up to 9 meters, and the 3500 rack’s redundant power supply options ensure continuous monitoring even during partial power events. Modbus TCP/IP polling cycles are configurable to balance network load against data refresh rates.

Q3: Can the 330904-00-03-10-02-05 be expanded to monitor additional measurement points without reconfiguring the existing network?
A: Yes. The Bently Nevada 3500 rack architecture supports modular I/O expansion — additional proximity probe channels can be added by inserting new 3500/40M or 3500/42M I/O modules into available rack slots. The communication gateway automatically discovers new modules and publishes their data on the existing Modbus TCP/IP or OPC-UA network without requiring changes to upstream SCADA or historian configurations.

Q4: What pre-shipment testing and warranty coverage is provided?
A: Every 330904-00-03-10-02-05 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including gap voltage output calibration and coaxial connector integrity checks. Warranty terms are confirmed during quotation. Shipment timing is confirmed after RFQ review, testing, and export packing.
