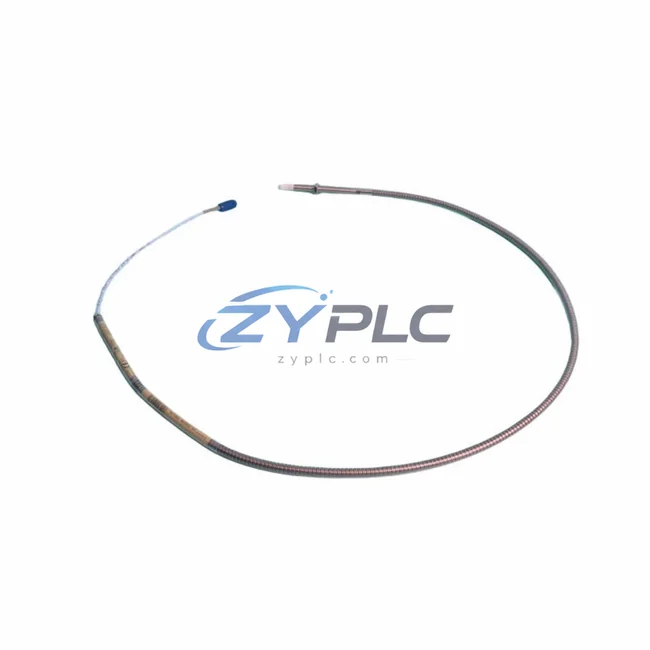

Bently Nevada 330904-00-05-50-02-00 3300 XL Proximity Transducer

Bently Nevada 330904-00-05-50-02-00 3300 XL Proximity Transducer for Optimized Automation

The Bently Nevada 330904-00-05-50-02-00 is a high-precision eddy-current proximity transducer from the 3300 XL NSv Series, engineered for continuous, non-contact vibration and position measurement in rotating machinery. In modern industrial facilities where energy efficiency and equipment uptime are directly tied to profitability, this transducer plays a foundational role in capturing the real-time mechanical data that drives smarter energy decisions across the entire drive and control chain.

Unlike passive monitoring approaches, the 330904-00-05-50-02-00 delivers shaft displacement data with sub-micron resolution, enabling control systems to detect imbalance, misalignment, and bearing wear long before they escalate into unplanned shutdowns. When integrated into a predictive maintenance architecture, this level of signal fidelity allows plant engineers to schedule maintenance during planned downtime windows — eliminating the energy and productivity losses associated with emergency stops and cold restarts of large motor-driven systems.

Product Specification Table

System Compatibility and Application

The 330904-00-05-50-02-00 transducer does not operate in isolation — it is the sensing front-end of a layered industrial automation system. In a typical high-efficiency plant configuration, the transducer is paired with a Bently Nevada 3300 XL 11 mm Driver (such as the 330180-X1-05 proximitor/seismometer), which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack.

That signal feeds into a Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed in a 3500 Series rack, where shaft vibration, axial position, and differential expansion are continuously tracked. When vibration thresholds are approached, the 3500 rack communicates alarm states via Modbus TCP or FOUNDATION Fieldbus to the plant DCS — for example, a Honeywell Experion PKS or Emerson DeltaV controller — which can then issue speed reduction commands to the connected Rockwell PowerFlex 755 variable frequency drive (VFD).

This closed-loop response is where real operational stability are realized. Rather than running a 500 kW compressor motor at full speed regardless of load, the VFD trims output based on actual mechanical feedback from the 330904-00-05-50-02-00, reducing energy draw during partial-load cycles by Actual operating results depend on the installed system, load profile, and commissioning parameters. The same vibration data is simultaneously logged by a System 1 Evolution software platform, where trend analysis and FFT spectrum review allow maintenance engineers to distinguish between normal operational vibration and early-stage fault signatures — without interrupting production.

For facilities running multi-axis machinery, the transducer integrates alongside Bently Nevada 330500-Series velocity transducers and 330400-Series accelerometers to provide a complete vibration signature across radial, axial, and casing measurement planes. This multi-sensor approach feeds richer data into the System 1 analytics engine, improving the accuracy of remaining useful life (RUL) estimates and reducing unnecessary preventive maintenance intervals — both of which directly reduce maintenance-related energy expenditure and spare parts consumption.

On the I/O and communication layer, the 3500 rack’s 3500/92 Communication Gateway bridges the vibration monitoring network to plant-level SCADA systems, enabling operators to view real-time shaft position and vibration amplitude on Wonderware InTouch HMI or equivalent operator stations. This visibility closes the loop between operating load data, equipment health status, and production scheduling decisions.

Maintenance and Replacement Notes

In a gas compression station running four parallel centrifugal compressor trains, each equipped with 330904-00-05-50-02-00 proximity transducers on the drive-end and non-drive-end bearing journals, the monitoring system continuously evaluates shaft orbit patterns. When the orbit shape begins to deviate from the baseline ellipse — indicating developing bearing wear or rotor imbalance — the System 1 platform flags the unit for inspection before the next scheduled maintenance window.

The practical energy impact is significant. A compressor forced into an emergency shutdown due to undetected bearing failure requires a full cold restart sequence: purging, pressurization, ramp-up, and re-synchronization with the pipeline network. This sequence can consume 3–5 times the normal steady-state energy draw over a 2–4 hour period. By catching the fault early through continuous proximity measurement, the 330904-00-05-50-02-00 enables a controlled, planned shutdown — preserving the thermal and pressure state of the system and dramatically reducing restart energy costs.

In power generation turbine applications, axial position monitoring via the 330904-00-05-50-02-00 protects against thrust bearing failure — one of the most catastrophic and energy-intensive failure modes in rotating machinery. Continuous axial gap measurement, cross-referenced with differential expansion data from complementary Bently Nevada 330905-Series transducers, gives operators a real-time picture of rotor thermal growth and allows turbine loading to be optimized without risking rotor-stator contact.

From a production line rhythm perspective, eliminating unplanned stops on critical rotating equipment directly improves OEE (Overall Equipment Effectiveness). A single unplanned compressor trip on a continuous process line can idle downstream equipment for hours, wasting the energy already invested in heating, pressurizing, or processing the product stream. The 330904-00-05-50-02-00, as part of a complete 3300 XL or 3500 Series monitoring system, is a cost-effective investment in production continuity and energy efficiency.

All units supplied by ZYPLC are sourced from verified inventory channels, undergo pre-shipment functional testing, and are covered by a warranty terms confirmed during quotation. RFQ-confirmed availability supports rapid deployment to minimize equipment downtime during replacement cycles.

Product Sourcing FAQ

Q1: How does the 330904-00-05-50-02-00 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft displacement data, this transducer enables predictive maintenance strategies that eliminate unplanned shutdowns and their associated cold-restart energy penalties. When integrated with a VFD control loop, the vibration feedback can also support load-adaptive speed control, reducing motor load during partial-load operation.

Q2: Is the 330904-00-05-50-02-00 compatible with existing 3300 XL and 3500 Series monitoring racks?
Yes. The 330904-00-05-50-02-00 is a direct drop-in replacement within the Bently Nevada 3300 XL NSv ecosystem and is fully compatible with 3300 XL driver/proximitor modules and 3500 Series rack monitors. No recalibration of the monitoring rack is required when replacing a like-for-like transducer, minimizing installation time and associated downtime costs.

Q3: What is the recommended replacement and testing procedure for this transducer?
ZYPLC recommends verifying the replacement transducer’s gap voltage output against the 3300 XL driver’s calibration curve prior to installation. Each unit supplied by ZYPLC is pre-tested for correct sensitivity (typically –7.87 V/mm) and linear range before shipment. On-site installation should include a static gap check and a dynamic run-up test to confirm signal integrity under operating conditions.

Q4: What warranty and supply assurance does ZYPLC provide for the 330904-00-05-50-02-00?
All units carry a warranty terms confirmed during quotation covering manufacturing defects and functional performance. ZYPLC maintains RFQ-confirmed sourcing of the 330904-00-05-50-02-00 to support urgent replacement requirements, with rapid dispatch capability to minimize equipment downtime. Pre-shipment testing documentation is available upon request.
