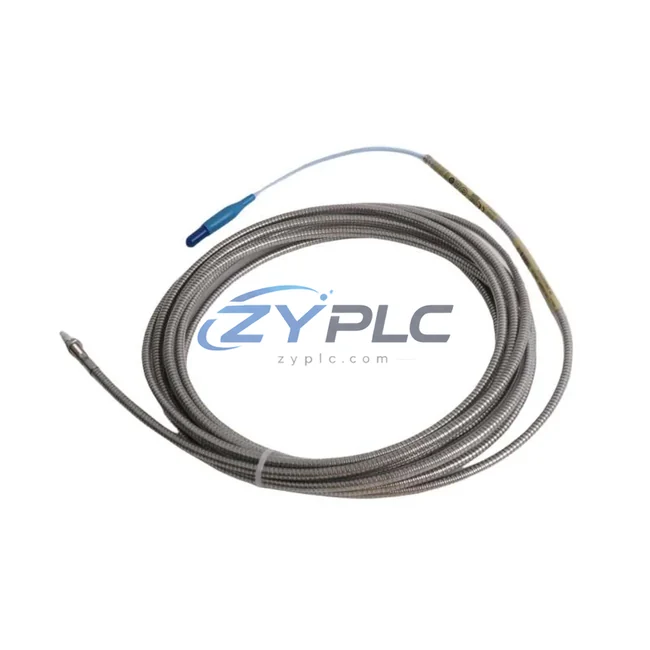

Bently Nevada 330904-00-06-05-02-00 Proximity Probe for 3300 NSV Systems

Bently Nevada 330904-00-06-05-02-00: Industrial Data Link for 3300 NSV Vibration Monitoring Networks

The Bently Nevada 330904-00-06-05-02-00 is a high-precision eddy-current proximity probe engineered for continuous, non-contact vibration and displacement measurement in rotating machinery environments. As a core sensing node within the Bently Nevada 3300 NSV Series monitoring architecture, this probe forms the critical first link in the industrial data chain — converting mechanical shaft motion into analog electrical signals that feed directly into vibration monitoring systems, SCADA platforms, and plant-wide condition monitoring networks. Designed for demanding industrial environments including turbines, compressors, pumps, and motors, the 330904-00-06-05-02-00 delivers reliable, low-latency signal output that supports real-time diagnostics, predictive maintenance, and remote fault detection across the full automation hierarchy.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory or power plant environment, the Bently Nevada 330904-00-06-05-02-00 proximity probe operates as the primary signal acquisition device at the field level. The probe is paired with a Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180-X1-05 series) via a matched extension cable, forming a calibrated eddy-current measurement loop. This analog signal is then routed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module, where it is conditioned, scaled, and converted into standardized process values.

From the 3500 Series monitor rack, vibration data is transmitted upstream via Modbus TCP/IP or OPC-UA gateway interfaces to plant-level SCADA systems such as GE iFIX, Wonderware AVEVA System Platform, or Emerson DeltaV. Operators monitoring from a central control room HMI — for example, a Siemens SIMATIC HMI TP1500 or Rockwell FactoryTalk View SE station — receive live shaft displacement, gap voltage, and vibration amplitude data with sub-second latency. Alarm thresholds configured within the Bently Nevada System 1 Condition Monitoring Software trigger automated alerts when vibration levels exceed API 670 danger setpoints, enabling immediate protective action or controlled shutdown sequences.

For remote diagnostic scenarios, edge gateway devices such as the Moxa MGate MB3480 or HMS Anybus X-gateway bridge the 3500 rack’s serial or Ethernet output to cloud-based asset management platforms, supporting remote vibration trending, FFT spectrum analysis, and predictive maintenance scheduling without requiring on-site personnel. In multi-machine installations, the 330904-00-06-05-02-00 probe is typically deployed alongside Bently Nevada 330130-080-00-00 velocity sensors and 330400-series thrust position probes, providing a comprehensive multi-parameter view of rotating machinery health across the entire drivetrain.

Power for the proximitor circuitry is supplied by a dedicated Bently Nevada 3300/20 Power Supply module within the 3500 rack, ensuring stable, noise-isolated excitation voltage that maintains measurement accuracy even in electrically noisy industrial environments. The complete signal chain — from probe tip to SCADA dashboard — delivers the real-time data transparency that modern predictive maintenance and Industry 4.0 asset management programs demand.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy rotating machinery face a common challenge: vibration data collected at the field level remains trapped in standalone monitors, disconnected from plant-wide SCADA, ERP, and maintenance management systems. The Bently Nevada 330904-00-06-05-02-00 proximity probe, when integrated within the full 3300/3500 NSV monitoring architecture, directly addresses this data isolation problem.

By providing a high-fidelity analog signal that is fully compatible with the Bently Nevada 3500 Series monitor’s digital communication outputs, this probe enables facilities to bridge the gap between field-level vibration sensing and enterprise-level data systems. Protocol conversion is handled transparently by the 3500 rack’s built-in communication modules, which support Modbus RTU, Modbus TCP, and OPC-DA/UA — eliminating the need for custom signal conditioning or proprietary middleware. This means vibration data from the 330904-00-06-05-02-00 can be consumed directly by any standards-compliant SCADA, DCS, or CMMS platform without additional engineering overhead.

For facilities pursuing production line transparency and zero-unplanned-downtime goals, the probe’s continuous non-contact measurement eliminates the data gaps inherent in periodic manual inspection routines. Remote monitoring capabilities allow maintenance engineers to track shaft centerline position, dynamic vibration amplitude, and bearing clearance trends from any networked workstation or mobile device, enabling condition-based maintenance decisions that reduce both over-maintenance costs and catastrophic failure risk. As plant networks expand to incorporate additional measurement points, the 3300 NSV system architecture scales linearly — additional probes and proximitor channels can be added to existing 3500 racks without disrupting live monitoring on existing channels.

Industrial Connectivity FAQ

Q1: What is the signal latency of the 330904-00-06-05-02-00 in a SCADA-connected monitoring system?
The eddy-current signal from the 330904-00-06-05-02-00 probe is a continuous analog output with no inherent digital latency at the sensing level. When integrated with a Bently Nevada 3500 Series monitor using Modbus TCP or OPC-UA communication, end-to-end data update rates to SCADA are typically 100–500 ms depending on network configuration and polling intervals — well within the requirements for real-time vibration trending and alarm response.

Q2: Is the 330904-00-06-05-02-00 compatible with third-party vibration monitors and DCS systems?
The probe itself outputs a standard eddy-current analog voltage signal that is compatible with any monitor designed for Bently Nevada 3300 Series probes and proximitors. For integration with third-party DCS or SCADA platforms, the 3500 Series monitor rack provides Modbus RTU/TCP and OPC-UA interfaces that are universally supported by major automation platforms including Siemens PCS 7, ABB 800xA, Emerson DeltaV, and Honeywell Experion.

Q3: How is network stability ensured in high-vibration or electrically noisy industrial environments?
The 330904-00-06-05-02-00 uses a shielded coaxial cable system with matched impedance between probe, extension cable, and proximitor to minimize electromagnetic interference. The 3500 rack’s power supply provides isolated, regulated excitation voltage, and the monitor’s signal conditioning circuitry includes hardware filtering to reject electrical noise from VFDs, motor starters, and other high-frequency interference sources common in industrial plants.

Q4: What warranty and quality assurance does ZYPLC provide for the 330904-00-06-05-02-00?
Every Bently Nevada 330904-00-06-05-02-00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify signal output, cable integrity, and dimensional compliance. Availability is confirmed via RFQ for shipment arranged after confirmation with full traceability documentation. For volume orders or urgent project requirements, contact our technical sales team for lead time confirmation and application support.
