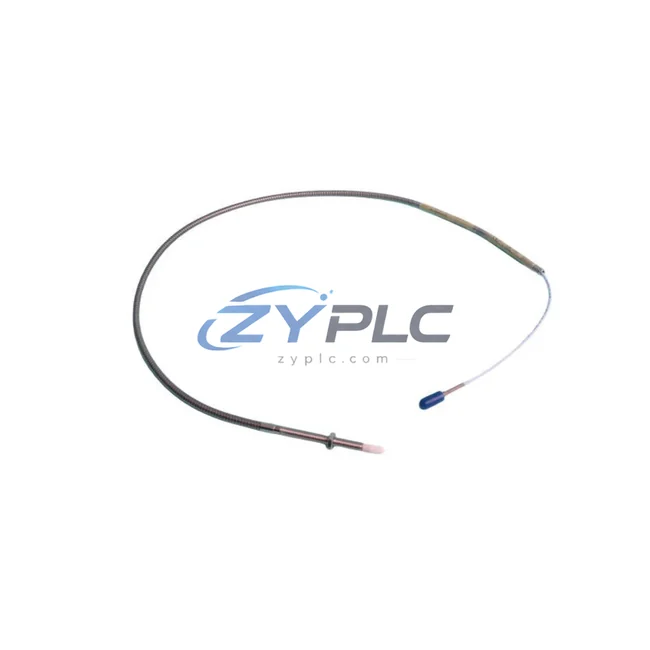

The Bently Nevada 330904-00-10-10-01-00 is a high-precision proximity transducer from the 3300 XL NSv Series, engineered for continuous, non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. As a core sensing node in the industrial data chain, this transducer converts mechanical motion into analog electrical signals — typically a –24 VDC buffered output — that feed directly into vibration monitoring systems, DCS platforms, and SCADA networks, enabling real-time asset health visibility across the smart factory floor.

In modern industrial connectivity architectures, the 330904-00-10-10-01-00 sits at the very front of the data acquisition chain. Its eddy-current sensing principle delivers sub-micron resolution without physical contact, making it ideal for high-speed turbines, compressors, pumps, and gearboxes where bearing wear and rotor instability must be detected before catastrophic failure occurs. The analog output integrates seamlessly with the Bently Nevada 3500 Series Machinery Protection System, where rack-mounted monitors such as the 3500/42M Proximitor I/O Module process the raw transducer signal and convert it into digital data for upstream communication.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330904-00-10-10-01-00 proximity transducer operates as the primary signal source in a layered industrial connectivity architecture. At the field level, the transducer probe is mounted adjacent to the rotating shaft, with its coaxial cable routed to a Bently Nevada 330130 Extension Cable and then to a 3300 XL 8mm Proximitor Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a calibrated –24 VDC analog output.

This conditioned signal enters the Bently Nevada 3500 Rack — typically via a 3500/42M Proximitor / Seismic I/O Module — where it is digitized, alarm-threshold-checked, and formatted for network transmission. The 3500 rack communicates upstream via Modbus RTU or Ethernet/IP to a plant-level DCS (such as a Honeywell Experion or Emerson DeltaV system) or directly to a SCADA platform running on an industrial PC or edge gateway. Operators monitoring the System 1 Evolution software — Bently Nevada’s dedicated asset performance management platform — receive real-time vibration trend data, spectral analysis, and alarm notifications without leaving the control room.

In broader plant integration scenarios, the vibration data from the 330904-00-10-10-01-00 is correlated with process variables from Siemens S7-300 / S7-400 PLCs or Allen-Bradley ControlLogix controllers via OPC-UA gateways, enabling cross-domain diagnostics that link mechanical vibration anomalies to process upsets — such as cavitation in pumps or surge in compressors. Remote I/O modules, including Pepperl+Fuchs FieldConnex FOUNDATION Fieldbus segments or Phoenix Contact Axioline remote I/O, can extend the monitoring network to geographically distributed assets, while Moxa industrial Ethernet switches (e.g., EDS-308 series) provide the managed Layer 2 backbone that ensures deterministic, low-latency data delivery from field to cloud.

At the HMI layer, operators interact with vibration data through Wonderware InTouch or GE iFIX SCADA screens, where the 330904-00-10-10-01-00’s output is displayed as real-time shaft centerline plots, orbit diagrams, and trend charts. Edge computing nodes — such as the Advantech UNO-2484G industrial edge gateway — can run local analytics and push pre-processed vibration KPIs to cloud-based IIoT platforms via MQTT or OPC-UA, completing the data journey from a single proximity transducer to enterprise-level asset intelligence.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is protocol fragmentation: legacy vibration monitoring systems often output proprietary analog signals that cannot be natively consumed by modern DCS or SCADA platforms without signal conditioning or protocol conversion. The 330904-00-10-10-01-00, when paired with the Bently Nevada 3500 rack infrastructure, resolves this by providing a standardized digital interface — Modbus RTU or Ethernet/IP — that any modern control system can read without custom engineering.

Data silos are another common pain point. Vibration data historically lived in standalone condition monitoring systems, disconnected from process historians and ERP platforms. By integrating the 330904-00-10-10-01-00’s output into the plant’s unified data backbone — via OPC-UA servers or MQTT brokers — maintenance teams gain the ability to correlate vibration trends with production throughput, energy consumption, and maintenance work orders in a single dashboard, eliminating the information gaps that delay predictive maintenance decisions.

For remote monitoring of assets in hazardous or geographically isolated locations, the transducer’s robust construction (IP67-rated probe, wide temperature range) ensures reliable signal generation even in harsh environments, while the digital network layer enables remote diagnostics from any location with network access. Production line transparency is further enhanced by the ability to configure alarm thresholds in the 3500 rack that automatically trigger notifications in the SCADA system, reducing the reliance on manual rounds and enabling condition-based maintenance scheduling. As plant networks grow, the modular architecture of the 3500 system allows additional I/O modules to be added to the same rack, supporting system expansion without rewiring or replacing existing transducer infrastructure.

Industrial Connectivity FAQ

Q1: What is the communication latency between the 330904-00-10-10-01-00 and the SCADA system?
The proximity transducer itself outputs a continuous analog signal with no inherent digital latency. Latency is introduced at the 3500 rack’s digitization and network transmission stage — typically less than 100 ms for Modbus RTU polling cycles and under 10 ms for Ethernet/IP implicit messaging, which is well within the requirements of most rotating machinery protection applications.

Q2: Is the 330904-00-10-10-01-00 compatible with PROFIBUS DP or FOUNDATION Fieldbus networks?
The transducer itself outputs a standard analog voltage signal. PROFIBUS DP or FOUNDATION Fieldbus connectivity is achieved through the 3500 rack’s communication gateway modules, which translate the digitized vibration data into the required fieldbus protocol. This makes the 330904-00-10-10-01-00 compatible with virtually any industrial network architecture when used within the 3500 system.

Q3: How is network stability ensured in high-vibration or electrically noisy environments?
The 330904-00-10-10-01-00 uses a shielded coaxial cable assembly that provides excellent immunity to electromagnetic interference (EMI). At the network level, managed industrial Ethernet switches with RSTP/ring topology support ensure redundant communication paths, preventing single-point network failures from interrupting vibration data streams to the SCADA or DCS.
