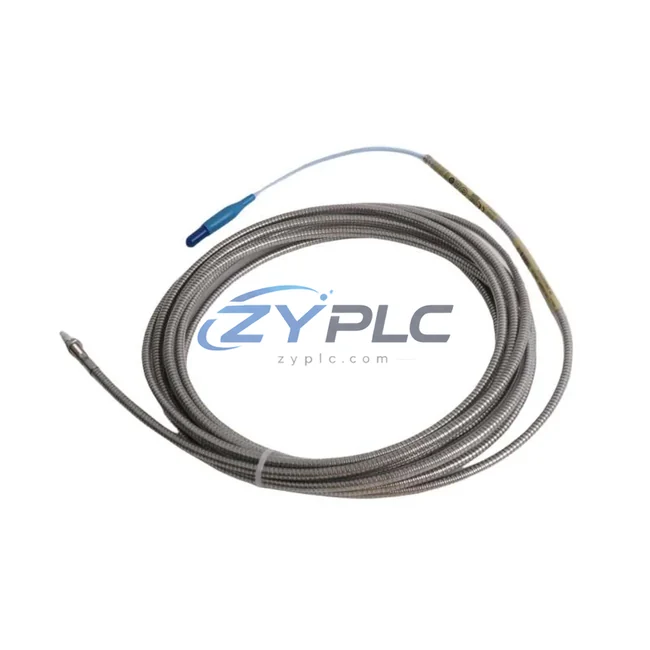

The Bently Nevada 330904-00-12-10-02-05/CN is an eddy-current proximity probe engineered for seamless deployment within the 3300 NSv vibration monitoring platform. Rather than functioning as a standalone sensing element, this probe is designed as an integral node within a layered industrial control architecture — connecting the mechanical domain of rotating machinery to the digital intelligence of plant-wide condition monitoring and protection systems. Its role spans the signal acquisition layer, feeding real-time shaft displacement and vibration data upward through the system hierarchy to enable coordinated protection, diagnostics, and predictive maintenance decisions.

In modern industrial automation environments — whether in power generation, petrochemical processing, oil and gas compression, or heavy rotating equipment facilities — vibration monitoring is not an isolated function. It is a critical subsystem that must interface reliably with the control layer, the safety layer, the historian layer, and the human-machine interface layer. The 330904-00-12-10-02-05/CN is built to fulfill this role with precision, consistency, and long-term mechanical stability.

Product Specification Table

System Compatibility Notes

The 330904-00-12-10-02-05/CN proximity probe does not operate in isolation. Its value is fully realized when integrated within a complete Bently Nevada 3300 NSv system architecture, where each component contributes to a coherent, redundant, and maintainable monitoring solution.

At the signal conditioning layer, the probe pairs with the Bently Nevada 330130 extension cable and the 330180 proximitor / oscillator-demodulator, which converts the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap distance. This conditioned signal is then routed to the 3300/16 dual-channel monitor module, which performs real-time comparison against user-configured alert and danger setpoints. The monitor module resides within the 3300 rack system, which accommodates multiple monitor cards and interfaces with the plant DCS or safety instrumented system via relay outputs or 4–20 mA analog signals.

For facilities requiring redundant vibration protection, the architecture may incorporate dual-probe configurations on a single bearing journal, with each probe channel feeding an independent monitor card. This redundancy design ensures that a single sensor failure does not compromise machine protection integrity — a critical requirement in API 670-compliant installations for turbines, compressors, and pumps.

At the network and integration layer, the 3500/92 communication gateway module enables Modbus TCP or OPC-DA connectivity, allowing vibration data to flow into the plant historian, the System 1 condition monitoring software, or third-party SCADA platforms. Engineers can configure trend logging, waveform capture, and alarm event archiving without interrupting the real-time protection function.

The human-machine interface layer is typically served by the 3300/95 display module or by operator workstations running System 1 software, where vibration trends, orbit plots, and Bode diagrams are visualized for rotating equipment engineers. Integration with the Bently Nevada TDXnet data acquisition system further extends the diagnostic capability to remote monitoring centers.

At the power supply layer, the 3300/20 power supply module provides regulated DC power to the monitor rack, with optional redundant power input configurations to eliminate single points of failure in critical applications. Proper grounding and shielding practices — particularly for the coaxial cable runs between the 330904-00-12-10-02-05/CN probe and the proximitor — are essential to maintaining signal integrity in electrically noisy industrial environments.

This coordinated architecture — spanning the probe, extension cable, proximitor, monitor module, rack, communication gateway, and software platform — ensures that the 330904-00-12-10-02-05/CN delivers not just a measurement, but a fully integrated machine health signal that supports protection, diagnostics, and long-term asset management.

Industrial Application Notes

The 330904-00-12-10-02-05/CN finds application across a broad range of industries where rotating machinery reliability is mission-critical.

In power generation facilities — including gas turbines, steam turbines, and hydro generators — this probe monitors shaft radial vibration and position at bearing locations, providing the early warning signals that prevent catastrophic rotor failures. Turbine protection systems configured to API 670 standards rely on proximity probes of this specification to trigger automatic shutdown sequences when vibration exceeds danger thresholds.

In petrochemical and refinery environments, the probe is deployed on centrifugal compressors, reactor agitators, and boiler feed pumps. The harsh operating conditions — elevated temperatures, oil mist, and chemical exposure — are well within the probe’s rated environmental envelope, making it a reliable long-term sensing element in continuous process operations.

In oil and gas compression stations, reciprocating and centrifugal compressors equipped with 3300 NSv monitoring systems use this probe to track shaft orbit behavior, detect rotor instability, and monitor bearing wear progression. The data feeds directly into predictive maintenance programs that reduce unplanned downtime and extend equipment service intervals.

In water treatment and pumping stations, large vertical turbine pumps and horizontal split-case pumps benefit from proximity-based vibration monitoring to detect impeller imbalance, cavitation onset, and bearing degradation before they escalate to failure events.

In metallurgical and mining operations — including rolling mills, ball mills, and crusher drives — the probe supports condition monitoring programs that align with planned maintenance windows, reducing the cost and risk of emergency repairs in remote or hazardous locations.

Across all these applications, the 330904-00-12-10-02-05/CN contributes to a layered automation strategy where machine health data flows seamlessly from the field sensor through the monitoring system to the plant control and enterprise asset management layers, enabling data-driven maintenance decisions and continuous improvement of equipment reliability.

Product Compatibility FAQ

Q1: Is the 330904-00-12-10-02-05/CN compatible with existing 3300 NSv monitor racks, and can it be retrofitted without system reconfiguration?
Yes. The 330904-00-12-10-02-05/CN is a direct-fit replacement for standard 8mm eddy-current probes within the Bently Nevada 3300 NSv platform. It is compatible with the 330180 proximitor and 3300/16 monitor module without requiring changes to rack configuration, setpoint programming, or communication settings. Retrofitting is typically a field-level task that can be completed during a planned maintenance window without taking the monitoring system offline, provided the machine is shut down and locked out per site safety procedures.

Q2: How does this probe support redundant architecture designs, and what are the installation requirements for dual-probe configurations?
For redundant vibration monitoring, two probes are installed at 90° to each other (X and Y planes) at each bearing journal, each connected to an independent monitor channel. The 330904-00-12-10-02-05/CN supports this configuration natively. Installation requires adequate bearing housing access for dual probe bosses, proper coaxial cable routing to minimize electromagnetic interference, and independent channel configuration in the 3300/16 monitor module. Redundant power supply modules in the rack further enhance system availability. This architecture is standard practice for API 670-compliant installations on critical rotating machinery.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning for installed systems?
The warranty terms confirmed during quotation covers manufacturing defects, calibration conformance, and performance within the published specification envelope under normal operating conditions. For maintenance planners, this warranty period provides a defined baseline for initial deployment risk management, allowing engineering teams to establish spare parts inventory strategies and replacement schedules with confidence. In practice, proximity probes installed in clean, well-maintained bearing environments routinely achieve service lives well beyond the warranty period. Our technical support team is available to assist with warranty claims, calibration verification, and system compatibility questions throughout the product lifecycle.
