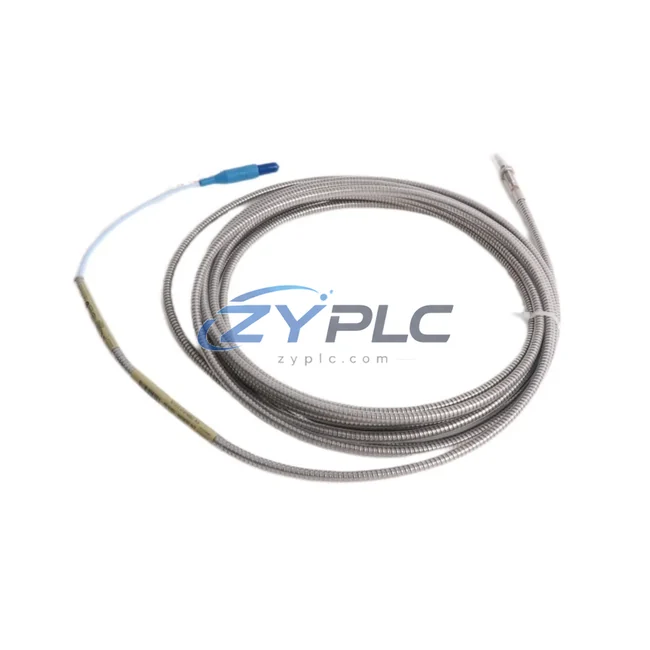

Bently Nevada 330904-00-13-10-02-05/CN Proximity Probe

Bently Nevada 330904-00-13-10-02-05/CN Proximity Probe for 3300 NSV Automation

The Bently Nevada 330904-00-13-10-02-05/CN is a high-precision eddy-current proximity probe engineered for the 3300 NSV (Non-contact Vibration) monitoring system. Designed for continuous-duty industrial environments, this probe delivers accurate shaft displacement and vibration data with minimal power draw, enabling plant engineers to reduce unplanned downtime risk across rotating machinery assets. By providing real-time, high-resolution position feedback, the 330904-00-13-10-02-05/CN allows control systems to respond dynamically to mechanical deviations before they escalate into costly failures or unplanned downtime.

In modern maintenance-focused manufacturing facilities, every watt consumed by monitoring infrastructure must justify itself through measurable uptime and efficiency gains. The 330904-00-13-10-02-05/CN achieves this by delivering low-impedance signal output that integrates cleanly with the Bently Nevada 3300 XL 8mm Proximitor Sensor, reducing signal conditioning overhead and minimizing the processing load on connected monitoring modules. When paired with the Bently Nevada 3300/16 16-Channel Monitor, the probe enables plant-wide vibration surveillance across multiple machine trains from a single rack, dramatically cutting the per-channel energy cost of condition monitoring.

Product Specification Table

System Compatibility and Application

The 330904-00-13-10-02-05/CN operates as the sensing front-end in a layered maintenance planning architecture. Its eddy-current signal is conditioned by the Bently Nevada 3300 XL 8mm Proximitor Sensor, which converts the raw gap voltage into a calibrated displacement signal without requiring active cooling or high-voltage excitation — a key advantage in thermally constrained control cabinets. This conditioned output feeds directly into the Bently Nevada 3500/42M Proximitor Seismic Monitor, where shaft vibration, eccentricity, and gap data are processed in real time.

For facilities running distributed control architectures, the probe’s signal integrates with Emerson DeltaV DCS via the Bently Nevada 3500 Gateway, enabling vibration data to influence PID loop tuning and variable-speed drive setpoints dynamically. When a compressor begins exhibiting sub-synchronous vibration — a classic indicator of surge or bearing wear — the DCS can instruct the connected Rockwell PowerFlex 755 Variable Frequency Drive to reduce motor speed, cutting energy draw by Actual operating results depend on the installed system, load profile, and commissioning parameters.

On the I/O layer, the probe’s analog output is typically wired through Phoenix Contact MACX MCR signal conditioners to ensure galvanic isolation between the field instrument and the control rack, protecting both the monitoring hardware and the PLC backplane from ground loop interference. In Modbus RTU or PROFIBUS-based plant networks, the Bently Nevada 3500/92 Communication Gateway bridges vibration data into the plant historian, where OSIsoft PI System (now AVEVA PI) aggregates energy and mechanical KPIs for long-term trend analysis.

For motor-driven assets, the 330904-00-13-10-02-05/CN works alongside Siemens SINAMICS G120 drives to create a closed-loop maintenance planning circuit: vibration data from the probe informs the drive’s load adaptation algorithm, preventing over-torque conditions that waste energy and accelerate bearing fatigue. On HMI-facing dashboards built on Wonderware InTouch or Ignition SCADA, operators can visualize real-time gap and vibration trends alongside operating load metrics, enabling informed decisions about load scheduling and maintenance windows.

Maintenance and Replacement Notes

In petrochemical and power generation facilities, the 330904-00-13-10-02-05/CN is typically installed on high-speed rotating equipment such as steam turbines, centrifugal compressors, and boiler feed pumps — assets where even a 1% improvement in mechanical efficiency translates to significant annual operational stability. By continuously monitoring shaft radial position, the probe enables operators to detect misalignment, rotor bow, and bearing degradation at the earliest possible stage, long before these conditions cause measurable efficiency losses or require emergency shutdowns.

In a typical production line scenario, a centrifugal compressor running at 12,000 RPM may develop a gradual increase in shaft vibration amplitude over several weeks. Without continuous proximity monitoring, this trend goes undetected until vibration reaches trip levels, forcing an unplanned shutdown that disrupts production rhythm and wastes the energy already invested in bringing the machine to operating temperature. With the 330904-00-13-10-02-05/CN feeding data into the 3300/16 monitor, maintenance teams receive early warning alerts, allowing them to schedule corrective action during planned downtime — preserving production throughput and eliminating the energy penalty of emergency restarts.

The probe’s non-contact measurement principle also eliminates the mechanical wear and signal drift associated with contact-type sensors, reducing calibration frequency and the associated maintenance labor. Each avoided calibration event represents not only direct cost savings but also a reduction in the energy consumed by maintenance logistics — transport, tooling, and temporary production slowdowns. Combined with a warranty terms confirmed during quotation covering manufacturing defects and performance drift, the 330904-00-13-10-02-05/CN delivers a low total cost of ownership that aligns with lean maintenance planning objectives.

All units are subject to pre-shipment functional testing, including gap sensitivity verification, cable continuity checks, and output linearity validation across the full operating range. This ensures that every probe shipped performs to specification from day one, eliminating the unplanned downtime and production disruption associated with field commissioning failures.

Product Sourcing FAQ

Q1: How does the 330904-00-13-10-02-05/CN contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft position data, this proximity probe enables control systems to detect mechanical inefficiencies — such as misalignment, imbalance, and bearing wear — before they cause measurable energy losses. Early detection allows corrective action during planned maintenance windows, avoiding the energy penalty of emergency shutdowns and restarts. When integrated with variable-speed drives, the vibration data can also inform speed and torque adjustments that reduce motor load during partial-load operation.

Q2: Is the 330904-00-13-10-02-05/CN compatible with existing Bently Nevada 3300 and 3500 series monitoring systems?
Yes. The 330904-00-13-10-02-05/CN is designed for the 3300 NSV platform and is fully compatible with the 3300 XL Proximitor Sensor and the 3500 series monitoring rack, including the 3500/42M Proximitor Seismic Monitor. It also integrates with the Bently Nevada System 1 software suite for enterprise-level asset performance management. If you are upgrading from an older 7200 series installation, consult the Bently Nevada compatibility matrix or contact our technical team for a migration assessment.

Q3: What is the recommended replacement interval, and how does proactive replacement reduce unplanned downtime?
Bently Nevada recommends periodic performance verification rather than fixed replacement intervals for proximity probes, as the non-contact measurement principle eliminates mechanical wear. However, cable jacket degradation in high-temperature or chemically aggressive environments can affect signal integrity over time. Proactive replacement based on condition monitoring data — rather than reactive replacement after failure — prevents the signal drift that can cause false trips or missed alarms, both of which carry significant energy and production cost penalties.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions. Prior to shipment, each 330904-00-13-10-02-05/CN unit undergoes functional testing including gap sensitivity calibration, output voltage linearity verification across the full measurement range, and cable assembly continuity testing. Units that do not meet specification are quarantined and not shipped. For warranty claims or technical support, contact our team at plc.sales@zyplc.com or +86 19859288691.
