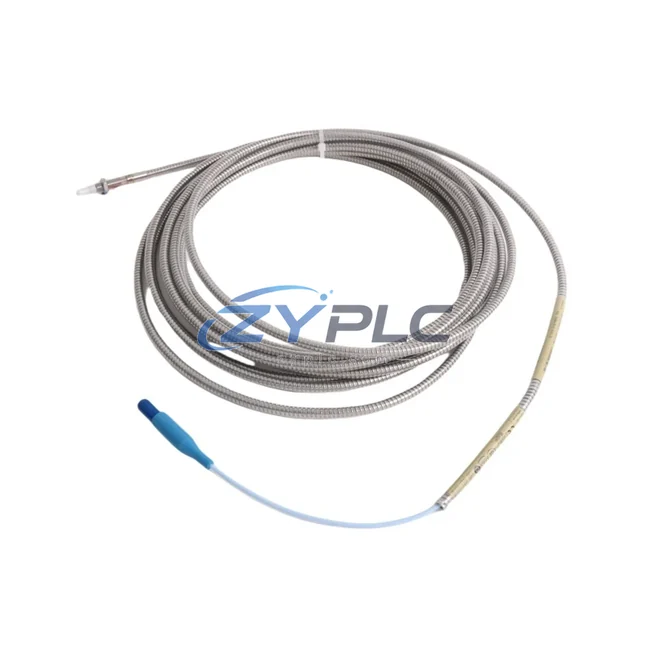

The Bently Nevada 330904-00-14-10-02-05/CN is a high-precision eddy-current proximity probe engineered for the 3300 NSV Series vibration monitoring platform. In modern smart factory environments, rotating machinery protection is inseparable from the industrial data network — and this probe sits at the very origin of that data chain. From the moment the probe tip detects shaft displacement, the analog signal travels through the 3300 NSV proximitor extension cable into the 3300/16 16-Channel Monitor, where it is digitized, conditioned, and made available to the plant-wide communication infrastructure. Whether your control architecture relies on Modbus RTU, PROFIBUS DP, FOUNDATION Fieldbus, or OPC-UA over Ethernet/IP, the 3300 NSV system bridges raw vibration data into the supervisory layer with sub-millisecond latency — enabling real-time condition monitoring, predictive maintenance scheduling, and remote diagnostics from any SCADA or DCS workstation on the network.

Designed for continuous-duty operation in harsh industrial environments, the 330904-00-14-10-02-05/CN features a 14 mm probe tip diameter, 10 mm linear range, and a 5-meter integral cable terminated with a standard 2-pin connector compatible with the 3300 NSV proximitor. Its eddy-current sensing principle requires no physical contact with the rotating shaft, eliminating wear and ensuring signal integrity across the full operating temperature range. This makes it the preferred choice for turbine shaft monitoring, compressor radial vibration measurement, and gearbox displacement sensing in oil and gas, power generation, and petrochemical facilities.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding how the 330904-00-14-10-02-05/CN fits into a connected automation architecture reveals its true value beyond the probe tip. In a typical turbine protection loop, the probe is paired with a Bently Nevada 330130-080-00-00 Proximitor Sensor to condition the raw eddy-current signal into a calibrated -24 VDC gap voltage. This conditioned output feeds directly into the Bently Nevada 3300/16 16-Channel Monitor, which performs alert and danger threshold comparisons in real time. The monitor communicates over a dedicated TDI (Transient Data Interface) link to the Bently Nevada System 1 Evolution software platform — a full-featured condition monitoring and machinery management SCADA environment that aggregates data from multiple 3300 NSV racks across the plant.

At the DCS integration layer, a Bently Nevada 3500/92 Communication Gateway translates the proprietary TDI protocol into Modbus TCP or PROFIBUS DP frames, allowing the vibration data to flow seamlessly into a Siemens SIMATIC S7-400 PLC or an ABB AC800M DCS controller without any custom programming. From the PLC, the data is forwarded over an industrial Ethernet backbone — typically managed through a Hirschmann MACH 4000 Industrial Managed Switch — to the plant SCADA server running GE iFIX or Wonderware InTouch HMI, where operators monitor shaft vibration trends, bearing temperatures, and process variables on a unified dashboard. For remote sites or offshore platforms, an Advantech ECU-1251 Edge Gateway can compress and encrypt the vibration data stream for transmission over 4G LTE or satellite links, enabling remote diagnostics and alarm acknowledgment from any authorized workstation worldwide.

In facilities where legacy 4–20 mA loops are still in use alongside modern Ethernet networks, a Pepperl+Fuchs KFD2-STC4-Ex1 Signal Conditioner provides galvanic isolation and protocol conversion, ensuring that the 330904-00-14-10-02-05/CN signal remains clean and interference-free even in electrically noisy environments near variable frequency drives or high-voltage switchgear. This end-to-end data chain — from probe tip to cloud-based analytics — is what defines the 3300 NSV platform’s role in Industry 4.0 machinery protection strategies.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the coexistence of multiple communication protocols across different generations of equipment. A plant may have legacy Bently Nevada 7200 Series probes running alongside newer 3300 NSV systems, with vibration data trapped in isolated monitoring racks that cannot communicate with the plant DCS or SCADA. The 330904-00-14-10-02-05/CN, deployed within the 3300 NSV architecture, directly addresses this data isolation problem by providing a standardized, network-ready vibration signal that can be mapped to any modern industrial protocol.

Protocol unification is achieved through the 3500/92 Communication Gateway, which acts as a universal translator between the Bently Nevada proprietary network and open industrial standards including Modbus, PROFIBUS, and OPC-UA. This eliminates the need for manual data entry or separate data historians, replacing them with automated, timestamped vibration records that feed directly into the plant’s production transparency and OEE (Overall Equipment Effectiveness) reporting systems. Remote monitoring becomes straightforward: alarm thresholds set in System 1 Evolution are automatically propagated to the SCADA alarm management system, ensuring that a bearing fault detected at 3:00 AM triggers an immediate SMS or email notification to the on-call maintenance engineer — without requiring anyone to be physically present at the control room.

System expansion is equally seamless. Additional 330904-00-14-10-02-05/CN probes can be added to existing 3300 NSV racks without disrupting the running network, and the modular architecture of the 3300/16 monitor allows channel count to scale from 4 to 16 measurement points per rack. All units supplied by ZYPLC are pre-tested against Bently Nevada factory specifications before shipment, with full traceability documentation and a warranty terms confirmed during quotation covering both parts and labor.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3300 NSV system support for SCADA integration?
The 3300 NSV platform supports Modbus RTU and TCP/IP, PROFIBUS DP, FOUNDATION Fieldbus H1, and OPC-UA through the 3500/92 Communication Gateway. This allows direct integration with all major DCS and SCADA platforms including Honeywell Experion, Emerson DeltaV, Siemens PCS 7, and ABB 800xA without requiring custom middleware or protocol converters.

Q2: How does the 330904-00-14-10-02-05/CN perform in high-EMI environments near VFDs and high-voltage equipment?
The eddy-current sensing principle of the 330904-00-14-10-02-05/CN is inherently immune to electromagnetic interference because it operates on magnetic flux changes rather than voltage levels. When additional isolation is required, pairing the probe with a galvanically isolated signal conditioner such as the Pepperl+Fuchs KFD2 series ensures that EMI from nearby variable frequency drives or motor starters does not corrupt the vibration signal. The 3300 NSV proximitor also includes built-in EMC filtering compliant with IEC 61000-4 standards.

Q3: Can the 3300 NSV system be expanded to monitor additional measurement points without network downtime?
Yes. The 3300 NSV architecture is fully hot-swappable at the module level. Additional proximity probe channels can be added to existing monitor racks, and new racks can be connected to the TDI network ring without interrupting data flow from existing nodes. The System 1 Evolution software automatically discovers new devices on the network and integrates them into the existing alarm and trending database within minutes of connection.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the 330904-00-14-10-02-05/CN?
Every 330904-00-14-10-02-05/CN unit supplied by ZYPLC undergoes a full functional test including gap voltage calibration, sensitivity verification (7.87 V/mm ±0.1 V/mm), and cable continuity check before shipment. Units are shipped with a test report and a warranty terms confirmed during quotation covering manufacturing defects and performance deviations from Bently Nevada factory specifications. DHL and FedEx express shipping is available for urgent requirements, with typical lead times of 3–7 business days for availability confirmed by RFQ items.
