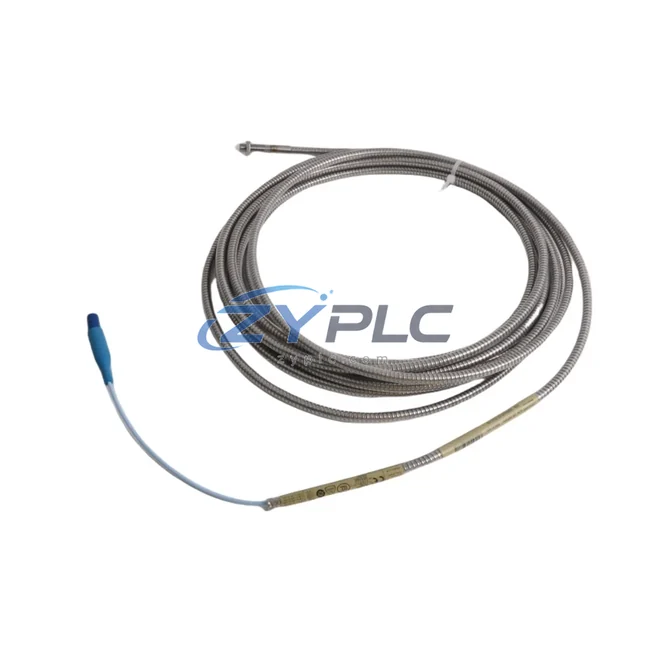

The Bently Nevada 330904-00-140-05-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 NSV (Non-contacting Vibration) monitoring architecture. Designed to deliver continuous, high-resolution shaft displacement and vibration data, this probe serves as the primary sensing element in a layered machinery protection system — connecting the mechanical domain directly to the control and safety layers of a modern industrial automation platform.

In a complete rotating machinery protection architecture, the 330904-00-140-05-02-00 operates as the field-level sensing node. Its output signal feeds directly into the 3300 NSV signal conditioning system, where raw proximity data is converted, filtered, and transmitted upstream to the control layer. This signal chain is foundational to the system’s ability to detect shaft orbit, axial position, differential expansion, and eccentricity — all critical parameters for turbines, compressors, pumps, and large rotating equipment in continuous process environments.

The probe is designed for use with the Bently Nevada 3300 XL 8mm extension cable and 3300 XL proximitor sensor, forming a matched three-component measurement chain. Probe length, cable length, and proximitor gap voltage must be calibrated as a system to ensure linear output across the full measurement range. This matched-system approach eliminates signal drift caused by impedance mismatches and ensures that the 3300 NSV monitor receives a clean, calibrated 4–20 mA or voltage signal for threshold comparison and alarm triggering.

Within the broader control architecture, the 330904-00-140-05-02-00 interfaces with the Bently Nevada 3500 Series machinery protection system or the System 1 condition monitoring software platform. The 3500/42M proximitor I/O module receives the conditioned signal and applies configurable alert and danger setpoints. When integrated with a DCS or safety instrumented system (SIS) via the 3500 gateway module, the proximity data becomes part of the plant-wide control loop — enabling coordinated shutdown sequences, predictive maintenance triggers, and real-time asset health dashboards.

For redundant monitoring architectures, the 330904-00-140-05-02-00 can be deployed in dual-probe configurations on the same shaft journal, with each probe connected to an independent channel of the 3500/42M or 3500/40M monitor. This redundancy eliminates single-point measurement failure and satisfies SIL 2 functional safety requirements in critical rotating equipment applications. The dual-channel configuration also supports cross-channel voting logic within the 3500 rack, ensuring that spurious trips caused by probe fouling or cable damage do not propagate to the safety layer.

From a network and communication perspective, the 3300 NSV system integrates with plant-level SCADA and historian platforms via Modbus RTU, Modbus TCP/IP, or OPC-DA/UA protocols through the 3500 communication gateway. This allows the proximity probe data — including gap voltage, direct vibration amplitude, and 1X/2X vector components — to be logged in real time by the plant historian and visualized on operator HMI screens. Integration with Emerson’s AMS Device Manager or System 1 Evolution software further enables automated alert management and maintenance workflow generation.

Installation of the 330904-00-140-05-02-00 requires careful attention to probe tip-to-target gap setting, typically 1.0–1.5 mm for standard 8mm probes, verified using a digital voltmeter against the proximitor’s gap voltage output. The probe is mounted in a threaded boss welded to the bearing housing, with the extension cable routed through conduit to the proximitor junction box. Proper grounding of the probe body and cable shield is essential to minimize electrical noise pickup in high-EMI environments such as motor control centers and variable frequency drive (VFD) cabinets.

For long-term maintenance planning, the 330904-00-140-05-02-00 is a direct replacement for legacy Bently Nevada proximity probes used in older 7200 Series and 3300 Series installations. Stocking this probe as a critical spare reduces mean time to repair (MTTR) for rotating equipment failures and supports a proactive spare parts management strategy aligned with ISO 55000 asset management principles. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have been functionally tested prior to shipment.

Product Specification Table

System Compatibility Notes

The 330904-00-140-05-02-00 proximity probe does not operate in isolation — it is one node in a tightly coordinated measurement and protection architecture. In a typical turbine or compressor protection system, the probe pairs with the Bently Nevada 3300 XL 8mm Proximitor Sensor and a matched 3300 XL Extension Cable to form the three-component measurement chain. The conditioned signal then enters the Bently Nevada 3500/42M Proximitor I/O Module, which is housed in the 3500 Rack alongside the 3500/15 Power Supply Module and the 3500/22M Transient Data Interface.

For plants requiring integrated condition monitoring, the 3500 rack communicates with the Bently Nevada System 1 Evolution software platform via the 3500/92 Communication Gateway, enabling real-time vibration spectrum analysis, shaft centerline plots, and Bode diagrams. On the HMI layer, operators interact with proximity data through Emerson DeltaV or third-party SCADA systems connected via OPC-UA, providing alarm annunciation and trend visualization without requiring direct access to the 3500 rack interface.

In facilities with existing Bently Nevada 7200 Series installations, the 330904-00-140-05-02-00 serves as a compatible upgrade probe, maintaining backward compatibility with legacy proximitor wiring while delivering improved sensitivity and temperature stability. For SIL-rated applications, the dual-probe configuration integrates with the 3500/20 Rack Interface Module to support voted shutdown logic, ensuring that the protection system meets IEC 61511 functional safety requirements without additional relay logic hardware.

Industrial Application Notes

The 330904-00-140-05-02-00 finds application across a broad range of heavy industrial sectors where rotating machinery protection is critical to process continuity and personnel safety.

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the probe monitors shaft radial vibration and journal bearing position continuously. Any deviation beyond the danger setpoint triggers an automatic turbine trip via the 3500 rack’s relay output, preventing catastrophic bearing failure and unplanned outages. In petrochemical and refinery environments, the probe is installed on centrifugal compressors and process pumps, where API 670 machinery protection standards mandate non-contacting vibration monitoring on all critical rotating equipment.

In LNG liquefaction plants, the probe monitors the main refrigerant compressor trains, where shaft vibration data is integrated with the plant DCS to coordinate compressor loading and anti-surge control. In mining and mineral processing operations, the probe is deployed on large ball mill drives and slurry pump systems, where the harsh environment demands the probe’s robust stainless steel construction and wide operating temperature range. In water and wastewater treatment facilities, the probe monitors high-speed centrifugal blowers and pump stations, providing early warning of impeller imbalance and bearing wear before service disruption occurs.

For steel and metallurgical plants, the probe is used on rolling mill main drives and continuous casting machine drives, where precise axial position monitoring prevents roll gap errors and product quality defects. In packaging and converting lines, the probe monitors high-speed rotary die-cut and slitter drives, where vibration-induced registration errors can result in significant material waste and downtime.

Product Compatibility FAQ

Q1: Is the 330904-00-140-05-02-00 compatible with the Bently Nevada 3500 Series monitoring rack, and does it require any additional configuration?
A: Yes. The 330904-00-140-05-02-00 is fully compatible with the Bently Nevada 3500/42M and 3500/40M Proximitor I/O modules when used as part of a matched three-component system (probe + extension cable + proximitor). No hardware modification is required; however, the 3500 rack channel must be configured via the 3500 Rack Configuration Software to match the probe’s scale factor (typically 7.87 V/mm for 8mm probes) and the target material correction factor. Gap voltage verification at commissioning is mandatory to confirm linear operating range.

Q2: Can this probe be used in a redundant dual-probe architecture to meet SIL 2 functional safety requirements?
A: Yes. The 330904-00-140-05-02-00 supports dual-probe redundant configurations when two probes are installed 90° apart on the same shaft journal, each connected to an independent channel of the 3500/42M module. The 3500 rack’s voted relay output can be configured for 1oo2 or 2oo2 voting logic, satisfying SIL 2 requirements per IEC 61511. This configuration eliminates single-point measurement failure and is recommended for all API 670-compliant installations on critical service machinery.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims or technical support?
A: All 330904-00-140-05-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, calibration failures, and functional performance under normal operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team. For warranty service, replacement units, or pre-sales architecture consultation, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com. Our engineering team can also assist with system compatibility verification, spare parts planning, and on-site commissioning support.
