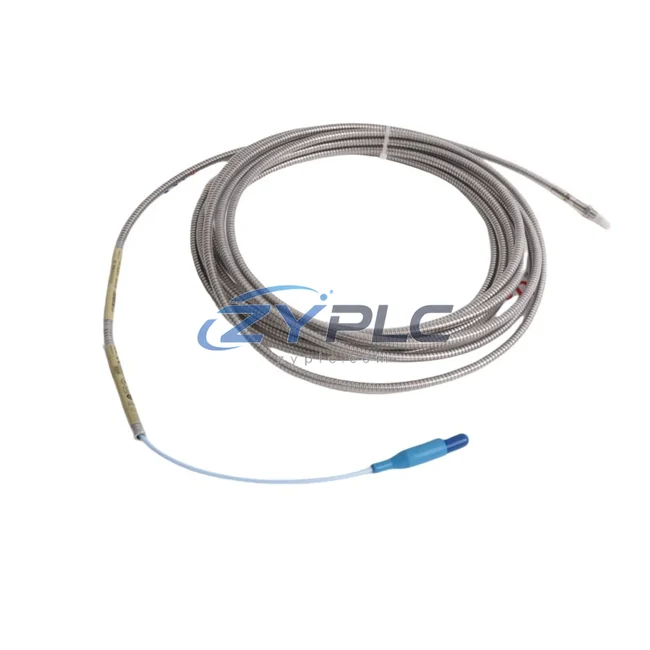

Bently Nevada 330904-00-15-10-02-05/CN Proximity Probe for 3300 NSV

Bently Nevada 330904-00-15-10-02-05/CN Proximity Probe for 3300 NSV

In modern industrial automation, the reliability of a vibration monitoring system depends not on any single component, but on the seamless coordination of every layer within the control architecture. The Bently Nevada 330904-00-15-10-02-05/CN proximity probe is engineered as a system-compatible sensing element for the Bently Nevada 3300 NSV (Non-contact Shaft Vibration) monitoring platform — a solution designed to integrate directly into multi-layer control environments spanning the field sensing layer, signal conditioning layer, data acquisition layer, and supervisory control layer.

This probe is not simply a transducer. Within a complete rotating machinery protection system, it functions as the primary data source for shaft displacement, radial vibration, axial position, and differential expansion measurements. Its role in the control architecture begins at the physical installation point on the bearing housing or machine casing and extends through the signal chain to the 3300 series monitor rack, where data is processed, alarmed, and transmitted upstream to DCS or SCADA platforms.

Sourced from verified supply channels and backed by a warranty terms confirmed during quotation, the 330904-00-15-10-02-05/CN is available for shipment arranged after confirmation to support planned maintenance shutdowns, emergency replacements, and new system commissioning projects across global industrial sites.

Product Specification Table

System Compatibility Notes

The 330904-00-15-10-02-05/CN proximity probe achieves its full value only when considered within the complete Bently Nevada 3300 NSV system architecture. At the field layer, the probe is paired with a Bently Nevada 330130 proximitor/extension cable and a compatible 3300 XL 8mm proximitor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then routed to a 3300/16 or 3300/20 monitor module housed within the 3300 series rack, where it is processed against alarm setpoints for radial vibration, axial position, or differential expansion.

Within the rack architecture, the monitor module communicates with a 3300/93 System 1 Evolution gateway or a 3500/92 communication gateway (in mixed-platform installations), enabling upstream data transmission to plant-level DCS systems such as Emerson DeltaV or Honeywell Experion PKS. For facilities operating redundant protection architectures, the 3300 NSV system supports dual-channel configurations where a secondary probe — also of the 330904 series — monitors the same measurement plane, ensuring no single-point failure can compromise machinery protection.

Power distribution to the monitor rack is typically managed through a 3300/15 power supply module, which provides regulated DC power to all installed monitor cards. In critical applications such as steam turbine protection or large centrifugal compressor trains, the power supply is configured in a redundant 1+1 arrangement. Terminal connections between the field wiring and the monitor rack are managed through 3300 series I/O terminal blocks, which simplify cable management and support hot-swap maintenance without interrupting adjacent channels.

For human-machine interface integration, the 3300 NSV system connects to System 1 Evolution software running on an engineering workstation, providing real-time trend visualization, historical data logging, and alarm management. In facilities where a unified HMI layer is required, the system can interface with Wonderware InTouch or GE iFIX SCADA platforms via OPC-DA or OPC-UA protocols, enabling operators to monitor shaft vibration data alongside process variables such as temperature, pressure, and flow from a single operator console.

This level of system integration — where the 330904-00-15-10-02-05/CN probe feeds calibrated data through a structured signal chain into a unified supervisory layer — is what distinguishes a properly engineered machinery protection system from a collection of isolated instruments.

Industrial Application Notes

The 330904-00-15-10-02-05/CN proximity probe is deployed across a wide range of heavy industrial sectors where rotating machinery reliability is critical to continuous production.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — this probe monitors the shaft displacement of steam turbines and generator rotors, providing the primary vibration signal used by the turbine protection system to initiate emergency shutdown sequences when vibration exceeds trip setpoints. The probe’s compatibility with the 3300 NSV platform ensures that alarm and trip logic can be configured and validated during commissioning using Bently Nevada’s standard calibration procedures.

In petrochemical and refinery applications, the probe is installed on centrifugal compressors, charge pumps, and reactor agitators operating in hazardous area classifications. Its robust construction and compatibility with the 3300 series monitor rack make it suitable for continuous operation in environments with high ambient temperature, hydrocarbon vapors, and mechanical vibration from adjacent equipment.

In water treatment and municipal utility plants, the probe monitors large vertical turbine pumps and blower units, where early detection of bearing wear or rotor imbalance can prevent unplanned outages that disrupt water supply to urban populations. The warranty terms confirmed during quotation provides plant maintenance teams with confidence in the reliability of replacement units sourced outside of OEM channels.

In mining and mineral processing operations, the probe is used on ball mill drives, SAG mill pinion bearings, and large slurry pump assemblies. The harsh operating environment — characterized by dust, moisture, and structural vibration — demands a probe with proven field reliability, which the 330904 series delivers through its hardened tip construction and sealed cable assembly.

In packaging and discrete manufacturing lines, the probe supports condition monitoring programs on high-speed rotating equipment such as centrifuges, turboblowers, and spindle drives, where vibration data is used to schedule predictive maintenance intervals and reduce unplanned downtime.

Product Compatibility FAQ

Q1: Is the 330904-00-15-10-02-05/CN compatible with both the 3300 NSV and 3500 series monitor racks?
The 330904-00-15-10-02-05/CN is primarily specified for the Bently Nevada 3300 NSV monitoring platform. While the physical probe and extension cable assembly may be mechanically compatible with 3500 series monitor inputs in some configurations, system integrators should verify the proximitor sensitivity range and gap voltage calibration against the specific 3500 monitor card specifications before installation. For mixed-platform architectures, consult the Bently Nevada system compatibility matrix or contact your regional Bently Nevada representative to confirm channel-level compatibility.

Q2: What installation and commissioning steps are required when replacing this probe in a live system?
Replacement of the 330904-00-15-10-02-05/CN in an operating system requires coordination between the mechanical, electrical, and control engineering teams. The standard procedure involves isolating the affected monitor channel, removing the existing probe and extension cable assembly, installing the replacement probe at the correct gap distance (typically 1.0–1.5 mm for a 10 mm tip probe), and performing a static gap voltage verification using a calibrated DC voltmeter before reconnecting the monitor input. The monitor channel should then be re-enabled and the alarm and trip setpoints verified against the machinery protection philosophy document. All work should be performed in accordance with the site’s management of change (MOC) procedure and documented in the maintenance management system.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions for a period of twelve months from the date of shipment. This warranty supports long-term maintenance planning by providing a defined reliability baseline for spare parts sourced outside of the OEM’s standard supply chain. For facilities operating under a predictive maintenance or reliability-centered maintenance (RCM) program, the warranty period aligns with typical annual inspection and overhaul cycles, allowing maintenance planners to schedule probe replacement as part of a planned shutdown rather than responding to an unplanned failure. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched from availability subject to RFQ confirmation to minimize system downtime.
