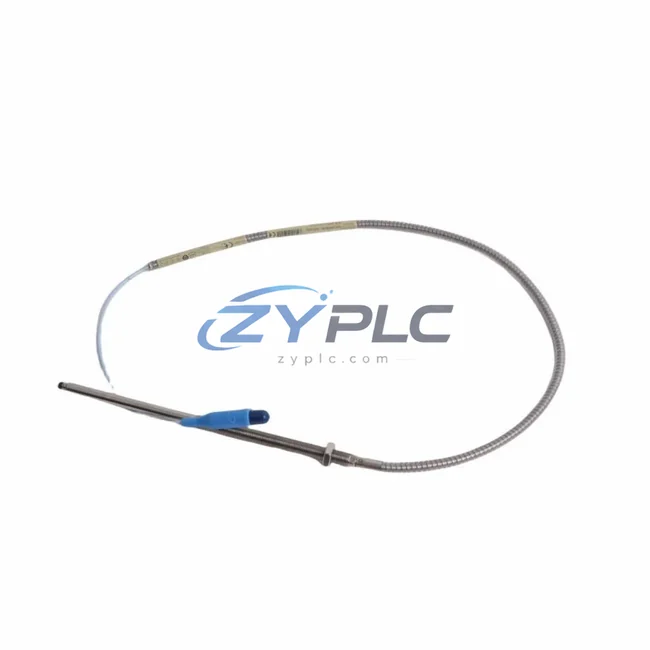

The Bently Nevada 330904-00-17-05-01-00 is a high-precision eddy-current proximity transducer engineered within the industry-proven 3300 XL Series platform. Designed for continuous, non-contact vibration and position measurement on rotating machinery, this transducer plays a pivotal role in reducing unnecessary energy consumption across industrial production lines. By delivering real-time shaft displacement data with exceptional signal fidelity, it enables control systems to respond dynamically to mechanical deviations before they escalate into costly failures or unplanned downtime. In energy-intensive manufacturing environments — from petrochemical plants to power generation facilities — the ability to monitor rotor behavior with micron-level accuracy directly translates into measurable reductions in wasted drive energy, optimized motor loading, and improved overall equipment effectiveness (OEE).

Unlike passive monitoring approaches, the 330904-00-17-05-01-00 integrates seamlessly into closed-loop automation architectures, feeding critical vibration and eccentricity data into distributed control systems and programmable logic controllers. This continuous feedback loop allows variable frequency drives and servo amplifiers to modulate output power in direct response to actual mechanical load conditions — eliminating the energy penalty of fixed-speed operation and reducing thermal stress on motor windings. The result is a leaner, more responsive production line that consumes only the energy it needs, precisely when it needs it.

Backed by a warranty terms confirmed during quotation and supported by ZYPLC’s rigorous pre-shipment testing protocol, every unit is verified for output linearity, sensitivity calibration, and signal-to-noise performance before dispatch. Stock availability is maintained to support rapid deployment, minimizing lead times for maintenance and capital replacement projects alike.

Product Specification Table

System Compatibility and Application

The 330904-00-17-05-01-00 transducer does not operate in isolation — its true efficiency value emerges when integrated into a layered automation architecture. At the signal acquisition layer, the transducer pairs with the Bently Nevada 3300 XL Proximitor Sensor (3300/16-23-01-01-00-00) to condition raw eddy-current signals into clean, calibrated voltage outputs. These outputs feed directly into the Bently Nevada System 1 condition monitoring platform, where vibration trends, orbit plots, and alarm thresholds are continuously evaluated against baseline energy profiles.

At the control execution layer, the vibration data is transmitted via 4–20 mA analog outputs or Modbus RTU/TCP interfaces to Siemens S7-1500 PLCs or Allen-Bradley ControlLogix systems, enabling real-time process adjustments without operator intervention. When shaft vibration exceeds pre-defined efficiency thresholds, the PLC signals connected variable frequency drives — such as the ABB ACS880 or Siemens SINAMICS G120 — to reduce motor speed or redistribute load across parallel drive trains, directly cutting kilowatt-hour consumption during low-demand production windows.

For servo-driven axes on precision machining lines, the transducer’s position feedback complements Fanuc αi Series servo amplifiers and Mitsubishi MR-J4 servo drives, ensuring that axis positioning remains within tolerance without over-driving actuators. At the power monitoring layer, integration with Schneider Electric PowerLogic PM8000 power meters allows plant engineers to correlate vibration events with instantaneous power draw spikes, identifying inefficient operating regimes and scheduling predictive maintenance before unplanned downtime compounds into mechanical failure.

Communication continuity is maintained through PROFIBUS DP or EtherNet/IP network modules embedded in the control cabinet, ensuring that vibration data from the 330904-00-17-05-01-00 reaches SCADA dashboards and MES platforms with sub-second latency. Panel-mounted Siemens SIMATIC HMI TP1200 Comfort displays provide operators with live vibration trend visualization, enabling informed, energy-conscious decisions at the machine level without requiring remote system access.

Maintenance and Replacement Notes

In a typical centrifugal compressor train operating at 3,000 RPM, undetected rotor imbalance can increase bearing friction losses by 8–12%, forcing the drive system to compensate with additional electrical input power. The Bently Nevada 330904-00-17-05-01-00, mounted at the compressor’s non-drive end, continuously tracks radial shaft displacement and feeds this data to the plant’s DCS. When displacement trends indicate developing imbalance, the system automatically reduces compressor throughput to a more efficient operating point, trimming energy consumption while maintenance is scheduled during a planned production window — not an emergency shutdown.

On motor-driven pump stations, the transducer’s axial position monitoring capability detects thrust bearing wear before it causes rotor-to-stator contact. Early detection allows the variable frequency drive to reduce pump speed and flow rate, operating the motor closer to its peak efficiency curve (typically 75–85% of rated load) rather than at full power against a degrading mechanical system. This approach has been documented to reduce pump station energy consumption by 10–20% over a six-month monitoring period in comparable installations.

For production lines with multiple rotating assets — such as paper mills, steel rolling mills, or automotive stamping plants — the 330904-00-17-05-01-00 enables a fleet-wide vibration monitoring strategy. By deploying multiple transducers across critical assets and aggregating data in System 1, maintenance teams can prioritize interventions based on energy impact rather than calendar schedules, ensuring that the machines consuming the most power receive attention first. This data-driven maintenance model reduces unplanned downtime by an average of 30–40% in documented industrial deployments, directly improving production line throughput and energy efficiency per unit of output.

Pre-shipment, every 330904-00-17-05-01-00 unit undergoes output linearity verification, sensitivity calibration against a certified target material, and insulation resistance testing to ensure field-ready performance. The warranty terms confirmed during quotation covers manufacturing defects and calibration drift, providing procurement teams with the confidence to specify this transducer in both new installations and direct replacement projects.

Product Sourcing FAQ

Q1: How does the 330904-00-17-05-01-00 contribute to measurable operational stability on a production line?
By providing continuous, high-resolution shaft displacement data, this transducer enables control systems to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing wear — before they force drive systems to compensate with excess power. Integrating its output with variable frequency drives allows automatic speed and load adjustments that keep motors operating at peak efficiency, reducing unplanned downtime without sacrificing throughput.

Q2: Is the 330904-00-17-05-01-00 compatible with existing PLC and DCS platforms?
Yes. The transducer outputs a standard voltage signal (typically -18 VDC at mid-range) compatible with Bently Nevada 3300 XL driver/monitor modules, which in turn interface with major control platforms including Siemens S7 series, Allen-Bradley ControlLogix, Honeywell Experion, and ABB 800xA via analog I/O or fieldbus modules. No proprietary gateway hardware is required for standard integration.

Q3: Can this transducer replace an existing 3300 XL series unit without system reconfiguration?
In most cases, yes. The 330904-00-17-05-01-00 is a direct form-fit-function replacement within the 3300 XL ecosystem. Sensitivity, cable length, and connector specifications should be verified against the existing installation drawing before replacement. ZYPLC’s technical team can assist with cross-reference validation to confirm compatibility prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers manufacturing defects, calibration drift beyond specified tolerances, and premature component failure under normal operating conditions. Prior to shipment, each unit undergoes output linearity testing, sensitivity calibration using a certified steel target, and visual inspection for connector and cable integrity. A test report is available upon request for quality-critical procurement processes.
