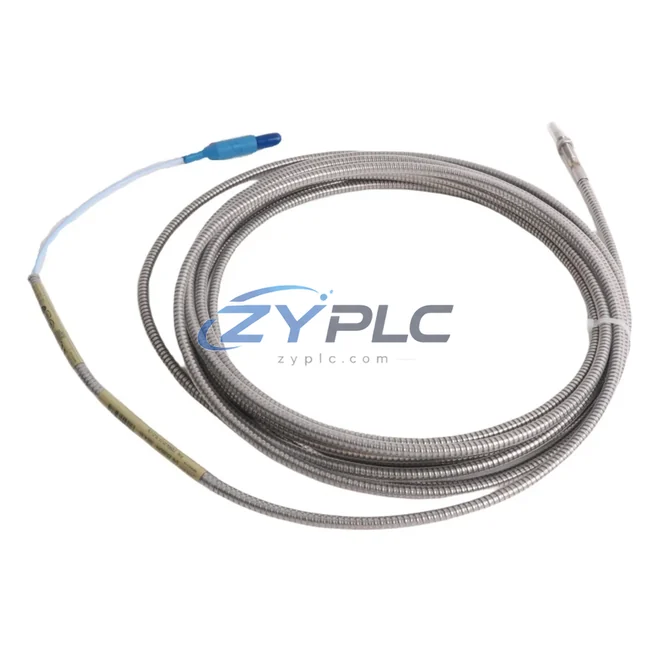

The Bently Nevada 330904-00-17-10-02-05/CN is a high-precision proximity probe engineered for the 3300 NSv vibration monitoring system, delivering real-time shaft displacement and vibration data across the full industrial data chain — from rotating machinery to SCADA control rooms. In smart factory environments where continuous uptime and predictive maintenance are mission-critical, this probe serves as the primary signal acquisition node, feeding live analog data into the 3300 NSv signal conditioning modules and onward to DCS, PLC, and HMI platforms for immediate operator visibility.

Designed for demanding industrial sites including turbines, compressors, pumps, and generators, the 330904-00-17-10-02-05/CN operates within the Bently Nevada eddy-current sensing architecture. Its output signal is fully compatible with the 3300 XL 8mm Extension Cable and 3300 XL Driver system, enabling seamless integration into existing Bently Nevada monitoring racks without hardware modification. The probe’s analog voltage output is directly readable by the 3500 Series Machinery Protection System, allowing engineers to configure alarm thresholds, danger setpoints, and trip logic within the 3500 rack’s configuration software.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory deployment, the 330904-00-17-10-02-05/CN proximity probe anchors the vibration data acquisition layer. Installed at the bearing housing of a high-speed compressor or steam turbine, the probe continuously measures rotor gap voltage and transmits this analog signal through the 3300 XL 5-metre Extension Cable to the 3300 XL 8mm Driver mounted in the local junction box. The conditioned signal then travels to the Bently Nevada 3500/42M Proximitor I/O Module housed in the 3500 rack, where it is processed against configured alarm and danger setpoints.

From the 3500 rack, the vibration data is forwarded via the 3500/92 Communication Gateway Module — supporting Modbus TCP/IP and OPC-DA protocols — to the plant’s SCADA server running platforms such as GE iFIX, Wonderware System Platform, or Honeywell Experion PKS. Operators at the central control room HMI can monitor real-time shaft displacement trends, receive alarm notifications, and initiate remote diagnostic sessions without entering the hazardous machinery area.

For sites integrating Bently Nevada data into a broader automation architecture, the SCADA gateway output can be mapped to a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller via Modbus TCP or EtherNet/IP, enabling the PLC to execute protective shutdown logic or load-shedding routines based on vibration thresholds. Remote I/O modules such as the Bently Nevada 3500/20 Rack Interface Module extend this capability to distributed monitoring points across large plant footprints.

Edge computing nodes — such as the Bently Nevada System 1 Software platform — aggregate multi-channel vibration, temperature, and process data from multiple 3500 racks, applying machine learning algorithms for predictive failure detection. This edge-to-cloud data pipeline ensures that maintenance teams receive actionable insights days or weeks before a bearing failure would cause unplanned downtime, directly supporting OEE improvement targets in smart manufacturing environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is the fragmentation of machinery health data. Vibration sensors, temperature transmitters, and process analyzers often operate on incompatible protocols — 4–20 mA analog loops, Modbus RTU, HART, and proprietary fieldbus standards — creating data silos that prevent holistic asset visibility. The Bently Nevada 330904-00-17-10-02-05/CN addresses this at the source by delivering a clean, high-fidelity analog signal that is universally compatible with modern signal conditioning and protocol conversion hardware.

When paired with a Bently Nevada 3500/92 Communication Gateway or a third-party Modbus-to-OPC gateway, the probe’s output can be normalized and published to any SCADA or DCS platform, eliminating the need for manual data transcription or isolated historian databases. Plant engineers can configure unified dashboards in their HMI that display vibration, temperature, flow, and pressure data side by side, enabling faster root-cause analysis during process upsets.

For facilities undergoing digital transformation, the 330904-00-17-10-02-05/CN supports phased integration strategies: existing analog wiring infrastructure is preserved while digital communication layers are added progressively. This approach minimizes capital expenditure and production disruption, allowing plants to achieve production line transparency and remote monitoring capability without a full system overhaul. The probe’s robust construction and proven eddy-current technology ensure measurement stability across temperature extremes, electromagnetic interference, and high-vibration environments typical of rotating machinery applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the 330904-00-17-10-02-05/CN support for SCADA integration?
The probe outputs a standard analog DC voltage signal compatible with all major signal conditioning platforms. When connected through the Bently Nevada 3500/92 Communication Gateway Module, the data can be transmitted via Modbus TCP/IP, Modbus RTU, or OPC-DA to SCADA and DCS systems. For HART or Profibus integration, a compatible protocol converter is recommended.

Q2: How does this probe ensure network stability and data continuity in high-vibration environments?
The 330904-00-17-10-02-05/CN uses eddy-current sensing technology with no moving parts, providing a continuous, stable analog output unaffected by mechanical wear. The coaxial cable assembly and connector are rated for industrial environments, and the signal conditioning chain within the 3300 NSv system includes built-in noise filtering to maintain data integrity across long cable runs and electrically noisy plant environments.

Q3: Can this probe be integrated into an existing PLC or DCS system without replacing the current monitoring rack?
Yes. The probe’s analog output is compatible with standard analog input modules on platforms including Siemens S7 series, Allen-Bradley ControlLogix, ABB AC500, and Schneider Electric Modicon. If the existing 3500 rack is already installed, the 330904-00-17-10-02-05/CN can be connected directly to the appropriate Proximitor I/O module without any rack-level changes, provided the channel configuration matches the probe’s sensitivity and range specifications.

Q4: What pre-shipment testing and warranty coverage is provided?
Every 330904-00-17-10-02-05/CN unit is functionally tested prior to shipment, verifying output signal linearity, sensitivity calibration, and connector integrity. All units are supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Availability is confirmed via RFQ for same-day or next-business-day dispatch, with global logistics support to minimize lead times for urgent maintenance requirements.
