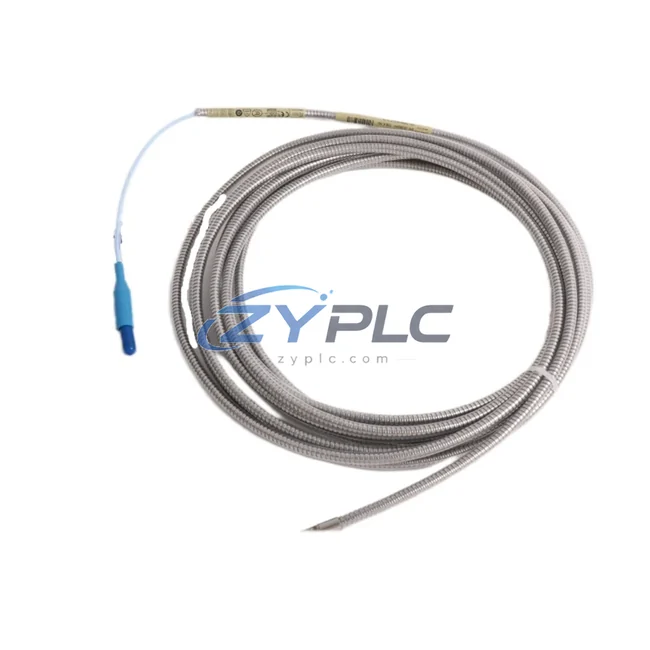

The Bently Nevada 330904-00-20-10-02-05 is a high-precision eddy-current proximity probe engineered for the 3300 NSV (Non-contact Shaft Vibration) monitoring system. Designed for continuous operation in demanding industrial environments, this probe delivers accurate shaft displacement and vibration data that directly supports maintenance-focused machine management, predictive maintenance scheduling, and production line optimization. By providing real-time feedback on rotating machinery health, the 330904-00-20-10-02-05 enables plant engineers to eliminate unnecessary energy consumption caused by undetected mechanical imbalance, misalignment, and bearing wear.

In modern industrial facilities where energy costs represent a significant share of operating expenditure, the ability to monitor shaft dynamics with sub-micron resolution translates directly into measurable efficiency gains. The 330904-00-20-10-02-05 integrates seamlessly into the Bently Nevada 3300 NSV signal conditioning architecture, ensuring that every watt consumed by rotating equipment is accounted for and optimized.

Product Specification Table

System Compatibility and Application

The 330904-00-20-10-02-05 proximity probe does not operate in isolation — it is a critical sensing node within a broader industrial automation system. When paired with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 NSV Driver Module, the probe delivers conditioned vibration signals to the Bently Nevada 3500/42M Proximitor I/O Module, which feeds real-time shaft position data into the plant’s distributed control system (DCS).

In a typical turbine-generator application, the 330904-00-20-10-02-05 works alongside the Bently Nevada 3500/22M Transient Data Interface to capture transient vibration events during startup and shutdown cycles — the periods of highest energy consumption and mechanical stress. By identifying abnormal vibration signatures early, operators can adjust speed ramps and load profiles to minimize energy spikes and reduce thermal fatigue on critical components.

For motor-driven systems, integration with a Rockwell Automation PowerFlex 755 Variable Frequency Drive (VFD) allows the vibration data from the 330904-00-20-10-02-05 to inform speed control decisions. When shaft vibration exceeds a defined threshold, the VFD can automatically reduce motor speed, cutting energy consumption while protecting the drivetrain. This closed-loop approach between vibration sensing and drive control is a cornerstone of modern maintenance planning strategies.

On the data acquisition side, the probe’s output integrates with Bently Nevada System 1 Condition Monitoring Software, which aggregates vibration trends, bearing temperatures from Bently Nevada 3300 TDI Temperature Modules, and process variables from the plant’s Siemens S7-1500 PLC. This multi-source data environment enables energy managers to correlate machine health with energy consumption patterns, identifying which assets are drawing excess power due to mechanical degradation.

Communication between the 3500 Series rack and the plant DCS is typically handled via Modbus TCP/IP or PROFIBUS DP protocol cards installed in the 3500 backplane, ensuring that vibration alarms and energy alerts are delivered to the operator workstation in real time. For facilities running Emerson DeltaV DCS, native integration with the Bently Nevada 3500 system provides seamless alarm management and energy reporting without additional middleware.

Power supply integrity for the monitoring system is maintained by a Bently Nevada 3500/15 Power Supply Module, which provides regulated, noise-filtered DC power to all rack-mounted I/O modules. Stable power delivery is essential for measurement accuracy — voltage fluctuations can introduce noise into proximity probe signals, leading to false alarms and unnecessary maintenance interventions that waste both time and energy.

Maintenance and Replacement Notes

In a petrochemical plant running multiple centrifugal compressor trains, the deployment of 330904-00-20-10-02-05 proximity probes on each compressor shaft provides continuous visibility into rotor dynamics. When the monitoring system detects a gradual increase in 1X vibration amplitude — a classic indicator of rotor imbalance — maintenance teams can schedule a corrective balancing procedure during the next planned outage rather than waiting for an emergency shutdown. This proactive approach eliminates the energy penalty associated with running degraded machinery: an imbalanced rotor can increase bearing friction losses by 3–8%, translating to measurable increases in motor current draw and energy cost over weeks of operation.

In power generation facilities, the 330904-00-20-10-02-05 is commonly installed on steam turbine journal bearings to monitor shaft centerline position. Shifts in shaft centerline indicate changes in oil film thickness and bearing load distribution — conditions that, if left unaddressed, lead to increased mechanical losses and higher fuel consumption per unit of electrical output. By maintaining optimal shaft position through continuous proximity monitoring, plant operators can sustain turbine heat rates at design levels, directly supporting energy efficiency targets.

For production lines with high-speed rotating equipment such as spindle motors and conveyor drive systems, the 330904-00-20-10-02-05 enables production rhythm optimization by detecting mechanical resonance conditions that cause intermittent speed variations. These variations disrupt production line takt time, forcing downstream processes to buffer or idle — both of which represent wasted energy. By identifying and eliminating resonance sources, the probe contributes to smoother, more maintenance-focused production flow.

Predictive maintenance enabled by the 330904-00-20-10-02-05 also reduces the frequency of unnecessary lubrication, component replacement, and inspection activities — all of which require equipment downtime and consume maintenance resources. By replacing time-based maintenance schedules with condition-based interventions, facilities can reduce maintenance-related energy losses by 10–25% according to industry benchmarks.

Every unit of the 330904-00-20-10-02-05 supplied by ZYPLC undergoes full functional testing prior to shipment, including sensitivity verification, linearity check, and signal output validation against Bently Nevada factory specifications. This ensures that the probe performs at its rated efficiency from the moment it is installed, with no break-in period or field calibration required. Warranty terms are confirmed during quotation.

Product Sourcing FAQ

Q1: How does the 330904-00-20-10-02-05 contribute to operational stability in rotating machinery applications?
By providing continuous, high-resolution shaft vibration and position data, the 330904-00-20-10-02-05 enables early detection of mechanical faults such as imbalance, misalignment, and bearing wear. Addressing these faults before they escalate reduces the excess energy consumption associated with degraded machinery operation, supporting measurable reductions in plant energy costs.

Q2: Is the 330904-00-20-10-02-05 compatible with the Bently Nevada 3500 Series Machinery Protection System?
Yes. The 330904-00-20-10-02-05 is designed for use within the Bently Nevada 3300 NSV system and is fully compatible with the 3500 Series rack when used with the appropriate Proximitor I/O module and extension cable. It can also interface with third-party monitoring systems that accept standard eddy-current probe signals.

Q3: What is the recommended replacement interval, and how does condition-based monitoring change this?
Traditional time-based replacement schedules recommend proximity probe inspection every 12–24 months. With condition-based monitoring using System 1 software, probe performance trends can be tracked continuously, allowing replacement to be scheduled only when actual performance degradation is detected — reducing unnecessary maintenance costs and associated downtime.

Q4: What testing is performed before shipment, and what does the warranty and support terms confirmed before quote cover?
Each 330904-00-20-10-02-05 unit undergoes sensitivity verification, output linearity testing, and signal conditioning compatibility checks before shipment. The warranty and support terms confirmed before quote covers manufacturing defects and performance deviations from Bently Nevada specifications. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
