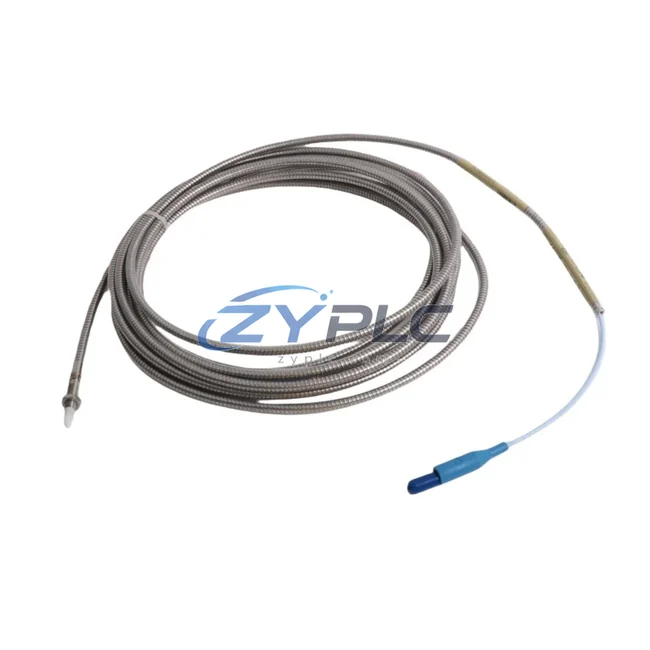

Bently Nevada 330904-00-21-10-02-05 Proximity Probe for 3300 NSV

Bently Nevada 330904-00-21-10-02-05 Proximity Probe for 3300 NSV

The Bently Nevada 330904-00-21-10-02-05 is a precision eddy-current proximity probe engineered as a core sensing element within the Bently Nevada 3300 NSV (Non-contacting Vibration) monitoring architecture. Unlike standalone vibration sensors, this probe is designed from the ground up for seamless system integration into multi-channel machinery protection systems, where signal fidelity, installation consistency, and long-term reliability directly determine the health of rotating equipment across the entire plant control hierarchy. In industrial environments ranging from petrochemical compressor trains to power generation turbines, the 330904-00-21-10-02-05 serves as the primary transducer layer, feeding real-time displacement data upward through the signal conditioning chain to the system’s monitoring and protection logic.

Understanding the role of this probe requires viewing it not as an isolated component, but as the foundational sensing node in a layered automation architecture. The probe interfaces directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 330130 Proximitor Sensor, forming a calibrated three-component measurement chain. The Proximitor converts the probe’s raw eddy-current signal into a voltage output proportional to the gap distance between the probe tip and the rotating shaft. This conditioned signal is then routed to the 3500/40M Proximitor I/O Module housed within the 3500 Rack System — a modular, backplane-based monitoring platform that supports up to 14 I/O modules per rack, enabling dense channel integration without compromising signal integrity.

Product Specification Table

System Compatibility Notes

The 330904-00-21-10-02-05 achieves its full diagnostic value only when deployed within a coherent system architecture. At the sensing layer, the probe pairs with the Bently Nevada 330130-080-00-00 Proximitor Sensor, which provides the oscillator-demodulator circuitry necessary to linearize the eddy-current response. The Proximitor’s analog output connects to the 3500/40M Proximitor I/O Module, which digitizes and conditions the signal before passing it to the 3500/20 Rack Interface Module (RIM) — the communication backbone of the 3500 Rack System.

The 3500 Rack System itself is powered by the 3500/15 Power Supply Module, which provides redundant -24 VDC rails to all installed I/O modules, ensuring that a single power fault does not interrupt the monitoring chain. For applications requiring continuous availability — such as steam turbine protection in power plants — the rack supports dual power supply configurations, where a secondary 3500/15 Power Supply operates in hot-standby mode.

At the network and integration layer, the 3500/22M Transient Data Interface (TDI) module enables high-speed waveform capture and forwards transient data to the plant DCS or historian via Modbus TCP or OPC-DA/UA protocols. This allows the 330904-00-21-10-02-05’s displacement data to be consumed by SCADA platforms, process historians, and advanced analytics engines without any signal re-conditioning. For plants operating on a System 1 Evolution software platform, the probe’s data stream integrates natively into the asset health dashboard, enabling trend analysis, alarm rationalization, and predictive maintenance scheduling across the entire rotating equipment fleet.

At the human-machine interface layer, operators interact with the probe’s data through the 3500/94 Display Interface Module or through remote HMI panels connected via Ethernet. In compressor protection applications, the probe’s radial vibration channel is typically paired with a 330980 Velomitor Piezo-Velocity Sensor for complementary velocity measurement, and a 330850 Thrust Position Probe for axial displacement monitoring — together forming a complete API 670-compliant protection loop for a single machine train.

Industrial Application Notes

In petrochemical and refinery applications, the 330904-00-21-10-02-05 is routinely installed on centrifugal compressors, reactor charge pumps, and main air blowers where continuous shaft displacement monitoring is mandated by process safety requirements. The probe’s API 670 compliance ensures it meets the machinery protection standards required for SIL-rated safety instrumented systems, allowing it to serve as the primary input to a safety PLC or emergency shutdown (ESD) system.

In power generation facilities, the probe monitors journal bearing clearances on steam and gas turbines, where even sub-millimeter shaft excursions can indicate developing instability. The 3300 NSV architecture’s ability to simultaneously monitor multiple probes across a single turbine train — including HP, IP, and LP sections — provides operators with a complete vibration map of the machine, enabling informed decisions about load reduction, inspection scheduling, or controlled shutdown.

In water treatment and municipal infrastructure applications, the probe is deployed on large vertical pump motors and blower trains, where its low-maintenance eddy-current technology outperforms contact-type sensors in wet, corrosive environments. The sealed probe body and armored cable assembly resist moisture ingress and chemical exposure, maintaining calibration accuracy over multi-year service intervals.

In mining and mineral processing environments, the 330904-00-21-10-02-05 monitors SAG mill pinion bearings, crusher drive shafts, and slurry pump impellers. The probe’s wide operating temperature range and robust construction allow it to function reliably in dusty, high-vibration environments where conventional sensors fail prematurely. Integration with the plant’s DCS via the 3500 rack’s Modbus interface allows vibration alarms to be surfaced directly on the operator console alongside process variables such as mill load, feed rate, and motor current.

For packaging and discrete manufacturing lines, the probe provides non-contact position feedback on high-speed rotating shafts, supporting both machinery protection and process quality functions. Its fast dynamic response — capable of tracking shaft motion at frequencies up to several kilohertz — makes it suitable for monitoring gear mesh frequencies, blade pass events, and other high-frequency mechanical phenomena that indicate developing faults before they manifest as catastrophic failures.

Across all these applications, the 330904-00-21-10-02-05 is supported by a Warranty and support terms confirmed before quote covering manufacturing defects, calibration drift, and connector integrity. ZYPLC maintains RFQ-confirmed availability of this probe and its associated system components, enabling rapid deployment for both new installations and emergency replacement scenarios. Our engineering team provides pre-shipment verification of probe-Proximitor calibration matching, ensuring that every system-compatible assembly leaves our facility with documented performance data.

Product Compatibility FAQ

Q1: Is the 330904-00-21-10-02-05 compatible with both the 3300 NSV and the 3500 Series rack systems?
Yes. The 330904-00-21-10-02-05 is a 3300 NSV series probe that operates as part of a three-component measurement chain (probe + extension cable + Proximitor). The Proximitor’s analog output is fully compatible with the 3500/40M Proximitor I/O Module, making this probe the standard sensing element for 3500-based machinery protection systems. Ensure that the Proximitor model (e.g., 330130-080-00-00) is matched to the probe’s cable length and target material for correct sensitivity calibration.

Q2: Can this probe be installed in a redundant monitoring architecture, and how does the Warranty and support terms confirmed before quote apply in that configuration?
Yes. In redundant configurations, two probes are typically installed 90° apart on the same bearing journal, providing X-Y radial vibration measurement. Each probe operates on an independent channel within the 3500/40M module, and the 3500 rack’s dual power supply configuration ensures that no single hardware failure interrupts the protection function. The Warranty and support terms confirmed before quote applies to each probe individually from the date of shipment, covering manufacturing defects and calibration integrity regardless of whether the probe is installed as a primary or redundant channel.

Q3: What commissioning steps are required when integrating the 330904-00-21-10-02-05 into an existing 3500 system, and what support does ZYPLC provide?
Commissioning requires verification of the probe-Proximitor gap voltage at the nominal installation gap (typically 1.0–1.5 mm, yielding approximately -10 to -12 VDC), confirmation of the linear range within the target material’s response curve, and configuration of the 3500/40M channel parameters (full-scale range, alarm setpoints, and transducer type). ZYPLC provides pre-shipment calibration documentation for each probe, including the measured sensitivity and linear range data. Our technical team is available to support gap-setting procedures, channel configuration, and system integration testing via remote consultation.
