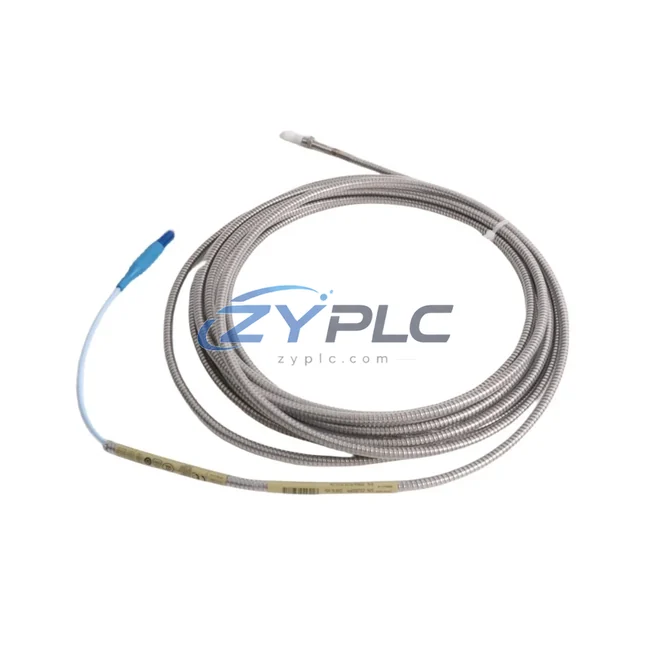

Bently Nevada 330904-00-22-10-02-00 Proximity Probe for 3300 NSv Systems

Bently Nevada 330904-00-22-10-02-00: Industrial Data Link for 3300 NSv Vibration Monitoring Systems

The Bently Nevada 330904-00-22-10-02-00 is a high-precision eddy-current proximity probe engineered for continuous, real-time vibration and position monitoring in rotating machinery environments. As a core sensing element within the Bently Nevada 3300 NSv series, this probe forms the critical front-end data acquisition node in a fully integrated industrial data link — connecting raw mechanical signals from rotating shafts directly into plant-wide SCADA, DCS, and condition monitoring platforms. In smart factory deployments where machine health data must flow seamlessly from the field device layer to the supervisory control layer, the 330904-00-22-10-02-00 delivers the signal integrity and environmental resilience that mission-critical industrial networks demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory rotating machinery protection architecture, the 330904-00-22-10-02-00 proximity probe is installed radially at the bearing journal of a steam turbine or centrifugal compressor. The probe’s analog output feeds directly into a Bently Nevada 3300 XL 8mm Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage proportional to the gap distance. This conditioned signal is then routed into a Bently Nevada 3500/42M Proximitor I/O Module housed within the 3500 Series Monitoring Rack — the central data aggregation node for the entire machinery protection system.

Within the 3500 rack, the 3500/20 Rack Interface Module manages communication between the field I/O modules and the plant network. Using the 3500/92 Communication Gateway Module, the rack transmits real-time vibration, position, and alarm data over Modbus RTU or Ethernet TCP/IP to the plant DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system. Simultaneously, the Bently Nevada System 1 Condition Monitoring Software subscribes to this data stream, providing continuous waveform analysis, trend logging, and predictive maintenance alerts at the SCADA/HMI layer.

For facilities integrating legacy 4–20 mA field instruments alongside the 3300 NSv proximity system, a Pepperl+Fuchs or Phoenix Contact signal conditioner can bridge the analog output to a Modbus RTU network segment, enabling unified data aggregation across mixed-protocol field device layers. Where wireless transmission is required for remote or hazardous-area installations, an Emerson Wireless 775 THUM Adapter or equivalent WirelessHART gateway can relay proximity data to the plant historian — such as OSIsoft PI or Wonderware InTouch — without additional cabling infrastructure.

At the edge computing layer, an industrial edge gateway such as the Moxa UC-8112 or Advantech WISE-5000 can locally pre-process vibration FFT data from the 3500 rack before forwarding summarized health indices to cloud-based IIoT platforms or MES systems. This architecture ensures that the 330904-00-22-10-02-00 probe’s raw mechanical signal is transformed, at every layer of the data chain, into actionable intelligence — from bearing clearance measurement at the field level to predictive maintenance scheduling at the enterprise level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is the fragmentation of vibration data across incompatible systems. Older plants may operate Bently Nevada 3300 NSv proximity systems alongside legacy Bentley 7200 series probes, Metrix ST5484E velocity sensors, and third-party accelerometers — each with different signal conditioning requirements and output protocols. The 330904-00-22-10-02-00, as a standardized 3300 NSv series component, provides a consistent, well-documented analog output that simplifies integration into both legacy and modern monitoring architectures.

Protocol unification is achieved through the 3500 rack’s communication gateway, which translates the probe’s analog signal chain into Modbus RTU, Modbus TCP/IP, or OPC-UA data objects consumable by any modern SCADA or DCS platform. This eliminates the data silos that arise when vibration data remains trapped within standalone condition monitoring systems, disconnected from the plant’s broader process control and production management infrastructure.

Remote diagnostics are fully supported: plant engineers can access real-time vibration spectra, Bode plots, and alarm histories through System 1 software from any networked workstation, enabling remote root-cause analysis without physical access to the machinery. For multi-site operations, VPN-connected System 1 servers allow centralized machinery health monitoring across geographically distributed plants — a key enabler of transparent, data-driven production line management.

System expansion is straightforward: additional 330904-00-22-10-02-00 probes can be added to existing 3500 racks by populating spare I/O module slots, with no changes required to the network communication infrastructure. This scalability makes the 3300 NSv proximity system the preferred platform for phased smart factory upgrades, where machinery protection coverage is expanded incrementally as capital budgets allow.

Industrial Connectivity FAQ

Q1: What is the communication latency between the 330904-00-22-10-02-00 probe and the SCADA system?
The analog signal from the proximity probe reaches the 3500 rack I/O module within microseconds. The 3500/92 Communication Gateway Module transmits updated process values to the DCS or SCADA host at configurable scan rates, typically 100–500 ms for Modbus TCP/IP polling cycles. For time-critical machinery protection, the 3500 rack’s internal trip logic operates independently of the network communication path, ensuring sub-millisecond relay response regardless of SCADA polling latency.

Q2: Is the 330904-00-22-10-02-00 compatible with non-Bently Nevada monitoring systems?
Yes. The probe’s standard eddy-current analog output (–24 VDC bias, linear mV/mil or mV/mm sensitivity) is compatible with any vibration monitoring system that accepts standard proximity probe inputs, including GE Bently Nevada, Emerson AMS, Metso DNA, and third-party condition monitoring platforms. Signal conditioning must match the 3300 NSv calibration curve; use of a Bently Nevada 3300 XL Proximitor is recommended for optimal accuracy.

Q3: How is network stability ensured in high-EMI industrial environments?
The 330904-00-22-10-02-00 uses a shielded coaxial cable assembly with the 3300 NSv extension cable, providing effective rejection of electromagnetic interference from variable frequency drives, high-voltage switchgear, and welding equipment. The 3500 rack’s isolated I/O modules further decouple field-side noise from the network communication layer, maintaining signal integrity across the full data chain from probe tip to SCADA host.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing performed?
Every 330904-00-22-10-02-00 unit supplied by ZYPLC is functionally tested prior to shipment, verifying probe sensitivity, linearity, and connector integrity against Bently Nevada factory specifications. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Global stock is maintained for rapid dispatch; expedited shipping is available for urgent plant maintenance requirements. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for availability confirmation and lead time.
