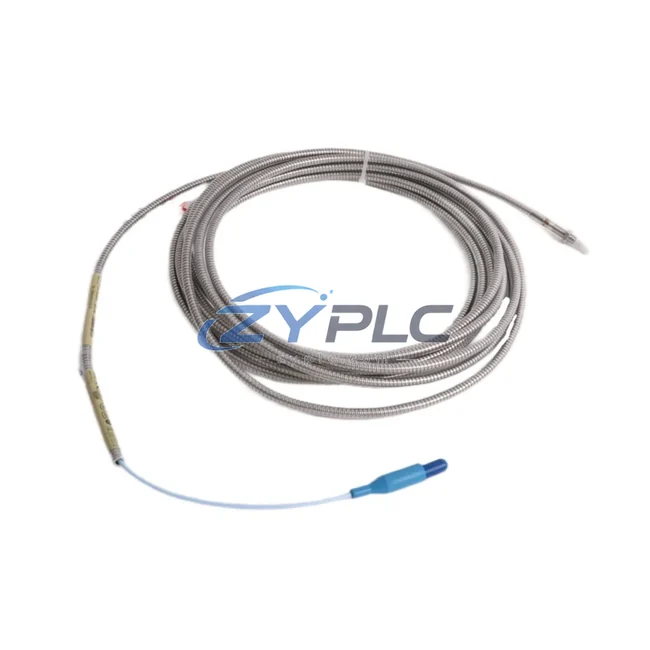

Bently Nevada 330904-00-22-10-02-05 Proximity Probe for 3300 NSV Systems

Bently Nevada 330904-00-22-10-02-05: Industrial Data Link for 3300 NSV Vibration Monitoring Systems

The Bently Nevada 330904-00-22-10-02-05 is a high-precision proximity probe engineered for the 3300 NSV (Non-contact Shaft Vibration) monitoring platform. Designed for continuous, real-time vibration and position measurement in rotating machinery, this probe forms the critical sensing node in a broader industrial data chain — connecting field-level mechanical signals to plant-wide SCADA, DCS, and condition monitoring systems. In smart factory environments where machine health directly impacts production uptime, the 330904-00-22-10-02-05 delivers the signal integrity and communication reliability that modern industrial networks demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the 330904-00-22-10-02-05 proximity probe is mounted at the bearing journal of a steam turbine, gas compressor, or large pump. The probe continuously measures shaft displacement and transmits a conditioned analog voltage signal to the Bently Nevada 3300/16-24-01-01-00-00 Proximitor Seismic Monitor, which digitizes and processes the raw vibration data. From there, the monitor communicates over hardwired I/O or fieldbus to a Bently Nevada 3500 Rack System, where multi-channel vibration, axial position, and speed data are consolidated.

The 3500 rack interfaces with plant DCS platforms — such as those running on Emerson DeltaV or Honeywell Experion PKS — via Modbus TCP or OPC-UA gateways, enabling seamless data flow to the SCADA layer. Operators monitoring the Bently Nevada System 1 Evolution software platform receive live trending, alarm thresholds, and historical waveform data without latency. For facilities integrating edge analytics, an industrial edge gateway (such as those compatible with IIoT protocols like MQTT or REST API) can subscribe to the System 1 data stream and forward machine health KPIs to cloud-based MES or ERP systems.

Within the field network, the probe assembly works in tandem with Bently Nevada 330130-045-00-00 extension cables and 330180-X1-05 Proximitor sensors to maintain signal fidelity over long cable runs in electrically noisy environments. Where multiple measurement points are required — such as X-Y vibration pairs on a rotor — additional 330904-series probes are deployed in parallel, all feeding into the same monitor rack. Remote I/O modules from the DCS vendor bridge the gap between the Bently Nevada analog outputs and the plant’s digital control backbone, ensuring that vibration alarms trigger automated protective actions in the PLC or safety instrumented system (SIS) without operator intervention.

For facilities running GE Mark VIe or Siemens SPPA-T3000 turbine control systems, the 330904-00-22-10-02-05 integrates directly into the existing vibration monitoring I/O cards, reducing engineering overhead and commissioning time. HMI screens on Wonderware InTouch or iFIX platforms display real-time shaft centerline plots and alarm banners sourced from the Bently Nevada monitor, giving control room operators immediate visibility into machine condition across the entire rotating equipment fleet.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the fragmentation of machine health data across incompatible monitoring systems. Legacy vibration monitors often output only relay contacts or 4–20 mA signals, making it difficult to integrate their data into modern SCADA or MES platforms. The Bently Nevada 330904-00-22-10-02-05, when paired with the 3300 and 3500 series monitor infrastructure, directly addresses this problem by providing structured, high-resolution vibration data that can be mapped to standard industrial protocols.

Protocol unification is achieved through the Bently Nevada System 1 OPC-DA/UA server, which acts as a universal data broker between the proprietary monitor network and plant-wide automation systems. This eliminates data silos by making vibration, position, and speed measurements available to any OPC-compliant SCADA, historian, or analytics platform. Remote monitoring becomes straightforward: engineers can access live and historical machine data from any networked workstation or mobile device, enabling condition-based maintenance decisions without requiring physical presence at the machine.

Production line transparency is further enhanced by configuring alarm and event data from the 3300/3500 monitors to flow into the plant historian — such as OSIsoft PI or Aspentech IP.21 — where long-term trend analysis supports predictive maintenance programs. System expansion is equally seamless: additional 330904-series probes and monitor channels can be added to the existing rack infrastructure without disrupting live measurements, supporting phased rollouts across large rotating equipment fleets. Every unit shipped by ZYPLC undergoes pre-shipment functional testing to verify signal output, cable continuity, and connector integrity, ensuring plug-and-play reliability from day one.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330904-00-22-10-02-05 support for SCADA integration?
The probe itself outputs a conditioned analog voltage signal. When connected to a Bently Nevada 3300 or 3500 series monitor, the system supports Modbus TCP, OPC-DA, OPC-UA, and 4–20 mA analog outputs, enabling integration with virtually any SCADA, DCS, or historian platform used in industrial facilities.

Q2: How does the system ensure network stability and low-latency data transmission in high-vibration environments?
The 330904-00-22-10-02-05 uses a shielded, armored coaxial cable assembly specifically designed to reject electromagnetic interference (EMI) common in motor rooms and turbine halls. The eddy-current sensing technology provides a continuous, non-contact measurement with no mechanical wear, ensuring stable signal output even under extreme vibration and temperature conditions.

Q3: Can the 330904-00-22-10-02-05 be integrated into an existing 3300 NSV system without replacing other components?
Yes. The 330904-00-22-10-02-05 is fully compatible with the existing Bently Nevada 3300 NSV monitor and Proximitor ecosystem. It can be installed as a direct replacement or additional measurement point without requiring firmware updates or hardware modifications to the monitor rack, minimizing downtime during integration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this product?
All Bently Nevada 330904-00-22-10-02-05 units supplied by ZYPLC carry a warranty and support terms confirmed before quote covering manufacturing defects and functional failures. Each unit undergoes pre-shipment inspection including signal output verification, cable continuity testing, and connector integrity checks. Shipment timing is confirmed after RFQ review, testing, and export packing.
