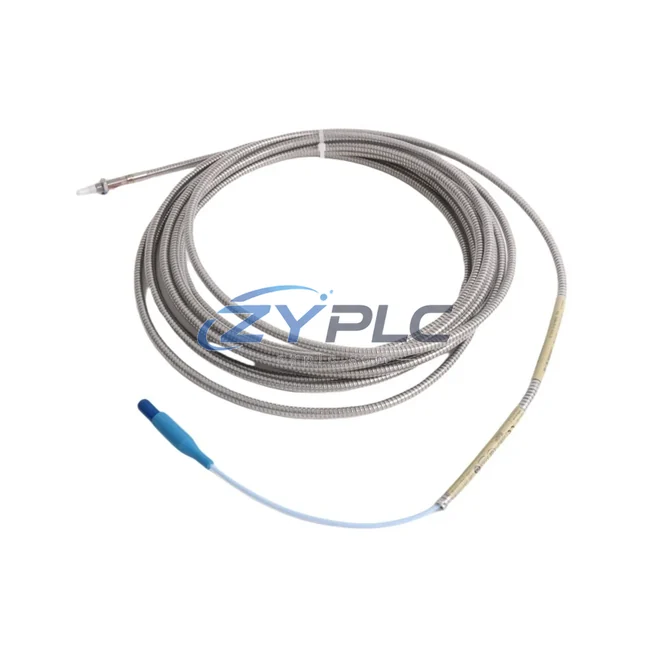

The Bently Nevada 330904-00-23-10-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 NSV (Non-contact Speed and Vibration) monitoring architecture. In modern industrial automation environments — spanning rotating machinery protection in power generation, petrochemical processing, mining, metallurgy, and water treatment — the reliability of the vibration monitoring layer is inseparable from the integrity of the broader control system. This probe is not simply a sensing element; it is a critical node in a layered automation hierarchy that connects the physical machine to the control room decision layer.

Within a complete machine protection and condition monitoring architecture, the 330904-00-23-10-02-00 operates as the primary signal acquisition component at the field instrumentation layer. Its eddy-current sensing principle delivers non-contact, continuous displacement measurement of rotating shaft position and vibration amplitude, feeding real-time data upward through the signal chain to the 3300 NSV monitor modules. These monitor modules — such as the Bently Nevada 3300/16-23-01-01-00-00 and 3300/20 series — process the raw proximity voltage signals and convert them into engineering units for display, alarming, and relay output. The probe’s 5-metre integral cable and standardised -24 VDC bias voltage output ensure direct compatibility with the 3300 NSV system’s input specifications, eliminating signal conditioning mismatches that could compromise measurement accuracy in high-speed turbomachinery applications.

System architects integrating the 330904-00-23-10-02-00 into a full machine train monitoring solution will typically pair this probe with the Bently Nevada 330130-045-00-00 extension cable, allowing total probe-to-monitor cable lengths to be optimised for large turbine pedestals or compressor trains where the monitor rack is remotely located. The 3300 XL 8mm probe system driver — such as the 330180-X1-05 proximitor/seismic transducer — provides the oscillator-demodulator function that powers the probe and conditions its output signal before transmission to the monitor. This three-component probe system (probe, extension cable, proximitor) forms the foundational sensing chain upon which all higher-level vibration protection logic depends.

At the control layer, the 3300 NSV monitor outputs interface directly with Bently Nevada’s System 1 condition monitoring software platform, enabling plant-wide asset health visualisation, trend analysis, and predictive maintenance scheduling. In DCS-integrated architectures — for example, those built on Emerson DeltaV or Honeywell Experion PKS — the 4–20 mA or relay outputs from the 3300 NSV monitors are mapped to the process control layer, ensuring that machinery protection events trigger coordinated process responses such as load shedding or emergency shutdown sequences. The 330904-00-23-10-02-00 thus sits at the origin of a signal flow that ultimately influences plant-level safety and availability decisions.

For redundant monitoring architectures — common in API 670-compliant installations on critical turbines, compressors, and pumps — dual-probe configurations are deployed on each measurement plane, with each probe connected to an independent monitor channel. This redundancy ensures that a single probe failure does not result in a monitoring gap, maintaining continuous protection during online maintenance activities. The 330904-00-23-10-02-00’s consistent sensitivity of 7.87 V/mm (200 mV/mil) across its linear measurement range supports accurate differential expansion and eccentricity measurements when used alongside complementary Bently Nevada 330900 series thrust position probes on the same machine train.

From an engineering commissioning perspective, the 330904-00-23-10-02-00 is designed for straightforward installation in standard probe holders with 3/8-28 UNF thread, compatible with the majority of Bently Nevada-standard proximity probe mounting brackets used across the 3300 and 3500 platform installations. Gap voltage verification during commissioning — typically targeting -10 VDC at the nominal air gap — can be performed using the Bently Nevada 330930-040-00-00 proximitor with a standard digital voltmeter, streamlining the calibration workflow for field engineers. Long-term maintenance planning is supported by ZYPLC’s warranty terms confirmed during quotation coverage, ensuring that replacement units meet original factory specifications and that system performance baselines are preserved throughout the warranty period.

Inventory availability of the 330904-00-23-10-02-00 is maintained to support both planned maintenance outages and emergency replacement scenarios, recognising that unplanned probe failures on critical rotating equipment carry significant production risk. ZYPLC’s global logistics capability ensures rapid dispatch to power plants, refineries, LNG terminals, mining operations, and manufacturing facilities worldwide, minimising mean time to repair (MTTR) for machinery protection system outages.

Product Specification Table

System Compatibility Notes

A complete Bently Nevada 3300 NSV-based machine protection system integrating the 330904-00-23-10-02-00 proximity probe typically includes the following coordinated components across multiple system layers:

At the sensing layer, the 330904-00-23-10-02-00 probe pairs with the Bently Nevada 330130-045-00-00 extension cable to achieve the required total cable length between the machine bearing housing and the monitor rack. The Bently Nevada 330180-X1-05 proximitor (oscillator-demodulator) provides the excitation signal to the probe and conditions the output voltage for monitor input. For thrust position measurement on the same machine train, the Bently Nevada 330900-00-23-10-02-00 thrust probe is deployed in a complementary configuration.

At the monitor and I/O layer, the Bently Nevada 3300/16-23-01-01-00-00 monitor module receives the proximity voltage signal, applies alarm and danger setpoints, and provides relay outputs for machinery protection logic. The 3300/20 series keyphasor module provides the once-per-revolution reference signal essential for phase-referenced vibration analysis and balancing operations. Rack power is supplied by the Bently Nevada 3300/05 power supply module, which provides regulated -24 VDC to all probe circuits within the monitor rack.

At the network and integration layer, the Bently Nevada 3500/92 communication gateway (where 3500 platform integration is required) or direct 4–20 mA outputs from the 3300 NSV monitors interface with the plant DCS or safety instrumented system (SIS). At the human-machine interface layer, Bently Nevada System 1 software aggregates all probe channel data for operator visualisation, alarm management, and long-term trend storage, completing the signal flow from the 330904-00-23-10-02-00 probe at the machine to the control room display.

Industrial Application Notes

The 330904-00-23-10-02-00 proximity probe finds application across a broad range of process industries where rotating machinery protection is a critical element of plant safety and production continuity:

Power Generation: Steam turbine and gas turbine shaft vibration monitoring in combined-cycle power plants, where API 670-compliant probe systems are mandatory for turbine protection system certification. The probe’s high-temperature rating supports installation in hot bearing housings adjacent to high-pressure steam paths.

Petrochemical and Refining: Centrifugal compressor and pump monitoring in hydrocarbon processing trains, where continuous shaft position and vibration data feeds into the plant safety instrumented system to initiate emergency shutdown on high-vibration events, protecting against catastrophic seal or bearing failures.

LNG and Gas Processing: Main refrigerant compressor monitoring in LNG liquefaction trains, where redundant dual-probe configurations on each measurement plane ensure uninterrupted protection during online maintenance activities.

Mining and Minerals Processing: Large grinding mill and crusher drive monitoring, where the probe system provides early warning of bearing degradation, enabling condition-based maintenance scheduling and reducing unplanned downtime in high-throughput production environments.

Water and Wastewater Treatment: Large vertical pump and blower monitoring in municipal water infrastructure, where the 3300 NSV system’s compact monitor format and the 330904-00-23-10-02-00 probe’s robust construction support reliable long-term operation in humid, corrosive environments.

Metallurgy and Steel: Rolling mill drive and fan monitoring in integrated steel plants, where the probe system’s wide operating temperature range and resistance to electromagnetic interference from large drive systems ensure measurement integrity in electrically noisy industrial environments.

Product Compatibility FAQ

Q1: Is the 330904-00-23-10-02-00 directly compatible with the Bently Nevada 3500 platform monitor system, or is it exclusively for 3300 NSV applications?
The 330904-00-23-10-02-00 is calibrated and specified for use within the Bently Nevada 3300 NSV monitor system. While the eddy-current sensing principle is common across Bently Nevada probe families, the 3500 platform uses its own calibrated probe sets (such as the 3300 XL 8mm series) with specific sensitivity and cable length combinations matched to 3500 monitor input specifications. Cross-platform use without recalibration is not recommended. For 3500 platform applications, consult the appropriate 3500 series probe part numbers to ensure system-level calibration integrity.

Q2: What installation and commissioning checks are required when integrating this probe into an existing 3300 NSV monitor rack?
Commissioning the 330904-00-23-10-02-00 requires verification of the probe gap voltage at the nominal air gap (typically -10 VDC ± 0.5 VDC), confirmation of the total cable length (probe integral cable plus extension cable) against the proximitor’s calibrated range, and functional testing of alarm and danger relay outputs at the monitor module. All wiring should be screened and grounded at a single point to minimise common-mode noise. Documentation of as-installed gap voltages and baseline vibration readings should be recorded in the plant maintenance management system to support future condition trending and warranty validation.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for 3300 NSV system maintenance?
ZYPLC’s warranty terms confirmed during quotation covers the 330904-00-23-10-02-00 against manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team, who can assist with failure analysis documentation required for insurance or regulatory reporting. For long-term maintenance planning, ZYPLC supports RFQ sourcing for 3300 NSV system components — including probes, extension cables, and proximitor units — to support both scheduled outage kitting and emergency replacement requirements. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss consignment stock arrangements or multi-year supply agreements for critical rotating machinery protection systems.
