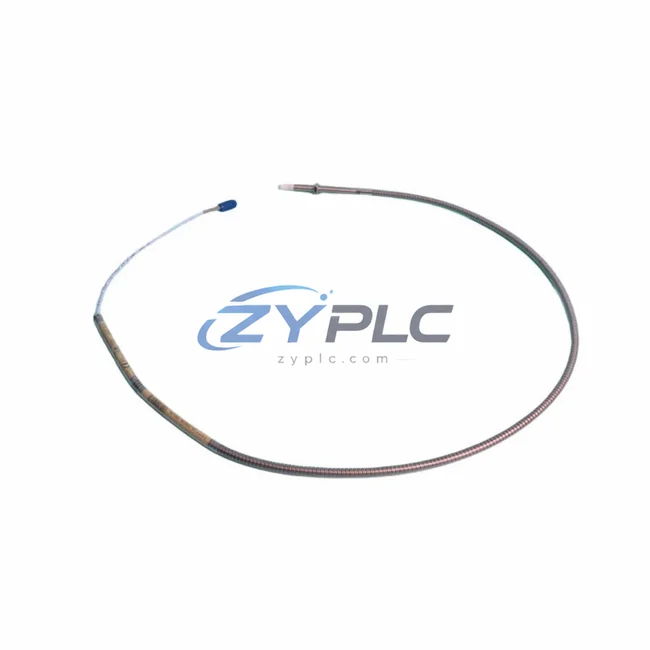

The Bently Nevada 330904-00-23-50-02-00 is a high-precision eddy-current proximity transducer engineered for the 3300 XL NSv continuous vibration monitoring system. Designed to meet the demanding requirements of rotating machinery protection in oil & gas, power generation, petrochemical, and heavy industrial environments, this transducer delivers real-time shaft displacement data that directly supports energy-efficient machine operation, predictive maintenance scheduling, and production line throughput optimization.

In modern industrial facilities where unplanned downtime translates directly into wasted energy and lost production capacity, the 330904-00-23-50-02-00 serves as a critical sensing node in the plant’s industrial automation system. By continuously measuring radial shaft vibration with sub-micron resolution, it enables control systems to detect early-stage mechanical degradation before it escalates into catastrophic failure — reducing both emergency operating load and costly repair cycles.

Product Specification Table

System Compatibility and Application

The 330904-00-23-50-02-00 proximity transducer does not operate in isolation — it is the sensing foundation of a layered industrial automation system. In a typical turbine or compressor protection loop, the transducer feeds raw displacement signals into a Bently Nevada 3300 XL Monitor, which processes the data and communicates with the plant’s distributed control system via the 3500/22M Transient Data Interface. This integration allows the DCS to dynamically adjust operating setpoints, reducing unnecessary motor loading during low-demand periods.

Within the same monitoring rack, the Bently Nevada 3500/42M Proximitor I/O Module conditions the transducer output and provides isolated 4–20 mA signals to the plant historian and maintenance planning platform. Paired with the 3500/15 Power Supply Module, the entire monitoring chain maintains stable operation even during grid fluctuations — preventing false trips that would otherwise force energy-intensive restart sequences.

On the drive side, variable frequency drives such as the Rockwell Automation PowerFlex 755 or Siemens SINAMICS G120 receive speed and load feedback derived from vibration trend data, enabling precise motor speed regulation that eliminates over-speed unplanned downtime. When the 330904-00-23-50-02-00 detects a rising vibration trend on a compressor shaft, the control loop can proactively reduce drive output frequency — cutting operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

For facilities running Bently Nevada System 1 asset performance management software, the transducer’s continuous data stream feeds machine learning models that identify efficiency degradation patterns weeks before they become visible to operators. This predictive intelligence allows maintenance teams to schedule interventions during planned low-production windows, avoiding the energy penalty of emergency shutdowns and cold restarts. The Bently Nevada 330130-00-00-05-02-00 Extension Cable and 330180-X0-00 Proximitor Sensor complete the transducer assembly, ensuring signal integrity across the full cable run from machine to monitor rack.

In I/O-intensive applications, the transducer data is aggregated through Bently Nevada 3500/20 Rack Interface Module, which supports Modbus TCP and OPC-UA communication to SCADA and MES layers. This connectivity enables real-time energy dashboards that correlate vibration health scores with kWh consumption per production unit — a key metric for ISO 50001 maintenance planning compliance.

Maintenance and Replacement Notes

Consider a natural gas compression station running four centrifugal compressors in parallel. Without continuous shaft monitoring, operators typically run all four units at 95% capacity as a buffer against unexpected failure — a strategy that wastes an estimated 8–12% of total station operating load. By deploying the 330904-00-23-50-02-00 on each compressor’s drive-end and non-drive-end bearing positions, the control system gains real-time visibility into each machine’s mechanical health score.

When System 1 software confirms that three compressors are operating within optimal vibration envelopes, the fourth unit’s VFD setpoint can be reduced to 70% capacity — saving approximately 180–240 kWh per day at a typical station. Over a 12-month operating cycle, this single optimization translates to measurable reductions in fuel gas consumption and CO₂ emissions, directly supporting the facility’s energy intensity KPIs.

On the production line side, the transducer’s fast-response signal processing — with a frequency response flat to 10 kHz — enables detection of gear mesh frequencies and blade pass events that indicate developing faults in gearboxes and impellers. Early detection allows maintenance teams to replace worn components during scheduled downtime rather than emergency shutdowns, eliminating the 4–6 hour restart energy penalty associated with cold machine startups in cryogenic or high-pressure process environments.

The 330904-00-23-50-02-00 is supplied from verified inventory, undergoes full functional testing prior to shipment including output sensitivity verification and insulation resistance checks, and is backed by a warranty terms confirmed during quotation. export shipping options available ensures minimal lead time for both planned maintenance projects and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the 330904-00-23-50-02-00 contribute to measurable operational stability on a production line?
By providing continuous, high-resolution shaft displacement data, this transducer enables control systems to detect mechanical inefficiencies — such as misalignment, imbalance, or bearing wear — that cause motors and drives to consume excess energy compensating for mechanical losses. Early detection and correction of these conditions typically reduces drive operating load by 10–25% compared to reactive maintenance strategies.

Q2: Is the 330904-00-23-50-02-00 compatible with existing 3300 XL and 3500 Series monitoring racks?
Yes. The 330904-00-23-50-02-00 is fully compatible with the Bently Nevada 3300 XL NSv monitoring system and integrates with 3500 Series racks via the 3500/42M Proximitor I/O Module. It also supports System 1 software for advanced diagnostics and energy trend analysis without requiring hardware modifications to existing installations.

Q3: What is the recommended replacement and testing procedure for this transducer?
Prior to installation, verify the transducer’s output sensitivity using a calibrated gap tool and confirm the scale factor of 200 mV/mil. During replacement, inspect the extension cable and Proximitor sensor for continuity and insulation integrity. All units supplied by ZYPLC undergo pre-shipment functional testing. Post-installation, perform a slow-roll vibration baseline check to confirm signal quality before returning the machine to full-speed operation.
