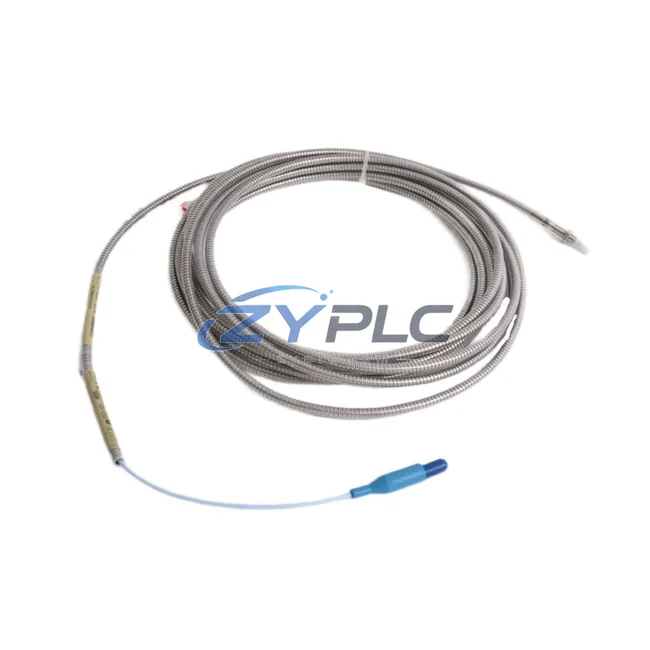

The Bently Nevada 330904-00-24-10-02-00 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 NSv Series continuous machinery monitoring architecture. Designed to deliver reliable non-contact displacement and vibration measurements, this probe serves as a foundational sensing element across the full signal chain — from rotating machinery to the control room. In modern industrial automation environments, where uptime and predictive maintenance are mission-critical, the 330904-00-24-10-02-00 provides the measurement accuracy and system compatibility required to sustain continuous, uninterrupted machinery health monitoring.

Unlike standalone sensing devices, the 330904-00-24-10-02-00 is purpose-built to operate within a layered control architecture. Its 24-inch (approximately 610 mm) armored extension cable and 10-meter (approximately 32.8 ft) interconnect cable configuration allow flexible installation across a wide range of machine train geometries, including steam turbines, gas compressors, centrifugal pumps, and large rotating equipment in power generation, petrochemical, and heavy industrial facilities. The probe’s 8 mm tip diameter and standard -24 VDC bias voltage output ensure direct compatibility with the 3300 NSv monitor system without requiring additional signal conditioning hardware.

Within the 3300 NSv system architecture, the 330904-00-24-10-02-00 operates in conjunction with the 330130 Proximitor Sensor (signal conditioning module), which converts the raw eddy-current signal into a calibrated voltage output readable by the 3300/16 Dual Voting Logic Monitor or the 3300/20 Radial Vibration Monitor. These monitors interface directly with the 3300/05 System Rack, a standard 19-inch rack-mount chassis that houses the full complement of I/O, power, and communication modules. The rack’s backplane distributes both power and data signals to all installed monitor cards, ensuring synchronized measurement across all monitored machine channels.

System power integrity is maintained by the 3300/15 Power Supply Module, which provides regulated -24 VDC to the Proximitor sensors and probe circuits throughout the rack. For installations requiring redundant power architectures — common in critical rotating equipment protection systems — dual power supply configurations are supported within the same rack chassis, eliminating single points of failure at the power layer. This redundancy design is particularly important in continuous process industries such as LNG, refining, and power generation, where unplanned shutdowns carry significant operational and safety consequences.

At the network and communication layer, the 3300 NSv system supports integration with plant-level DCS and SCADA platforms via the 3500/92 Communication Gateway Module or Modbus TCP/IP interface cards, enabling real-time vibration and position data to be transmitted to control systems such as Emerson DeltaV, Honeywell Experion, or ABB 800xA. This system integration capability allows the 330904-00-24-10-02-00 measurement data to be consumed directly by process control logic, alarm management systems, and historian databases without manual data extraction or secondary signal conversion.

For human-machine interface requirements, the 3300 NSv architecture is compatible with the Emerson AMS Machinery Manager software platform, which provides trend analysis, alarm configuration, and predictive maintenance dashboards. Operators can visualize shaft displacement, vibration amplitude, and phase angle data in real time, enabling condition-based maintenance decisions that reduce unnecessary planned outages and extend equipment service intervals. The 330904-00-24-10-02-00 probe’s consistent output linearity and low signal noise floor make it particularly well-suited for high-resolution trend analysis over extended operational periods.

Installation and commissioning of the 330904-00-24-10-02-00 follows standard Bently Nevada gap voltage procedures. The probe is installed at the recommended gap distance (typically 1.0 mm to 2.0 mm from the target shaft surface), and the Proximitor output is verified against the published voltage-gap curve to confirm correct calibration. The 330180-51-05 Extension Cable and 330130-080-00-00 Proximitor Sensor are the recommended companion components for this probe configuration, ensuring full system traceability and calibration consistency across the installed base.

For facilities managing large fleets of rotating equipment, maintaining a verified inventory of 330904-00-24-10-02-00 probes as critical spare parts is a recognized best practice. Probe replacement during scheduled turnarounds — rather than reactive replacement after failure — significantly reduces mean time to repair (MTTR) and supports continuous compliance with API 670 machinery protection standards. ZYPLC maintains availability subject to RFQ confirmation of the 330904-00-24-10-02-00 with full traceability documentation, supporting rapid deployment to minimize equipment downtime.

All 330904-00-24-10-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with technical support available for system integration, gap setting verification, and compatibility confirmation with existing 3300 NSv rack configurations. Our engineering team can assist with bill-of-materials validation, ensuring that all probe, extension cable, Proximitor, and monitor combinations are correctly matched for your specific machine train and control architecture requirements.

Product Specification Table

System Compatibility Notes

The 330904-00-24-10-02-00 proximity probe achieves its full performance potential when deployed as part of a coordinated 3300 NSv system architecture. At the sensing layer, the probe pairs with the 330130-080-00-00 Proximitor Sensor, which provides the oscillator-demodulator circuitry necessary to convert the raw eddy-current field perturbation into a calibrated DC voltage signal. This signal is then routed via shielded interconnect cable to the 3300/16 Dual Voting Logic Monitor or 3300/20 Radial Vibration Monitor installed within the 3300/05 System Rack.

The rack chassis accommodates multiple monitor cards simultaneously, allowing a single installation to monitor radial vibration, axial position, phase reference, and process variables from a unified backplane. The 3300/15 Power Supply Module ensures stable -24 VDC distribution to all Proximitor sensors connected to the rack, while the 3300/25 Keyphasor Module provides the phase reference signal required for synchronous vibration analysis and balancing operations.

For facilities requiring communication with plant DCS or SCADA systems, the 3500/92 Communication Gateway enables Modbus RTU or TCP/IP data export from the 3300 NSv rack to upstream control platforms. At the HMI layer, Emerson AMS Machinery Manager provides the operator interface for alarm management, trend visualization, and predictive maintenance scheduling. The complete system — probe, Proximitor, monitor, rack, power supply, communication gateway, and HMI software — forms a fully integrated machinery protection architecture that supports both continuous monitoring and event-triggered protection logic.

Industrial Application Notes

The 330904-00-24-10-02-00 is deployed across a broad range of heavy industrial and process automation environments. In power generation facilities, it monitors shaft radial vibration on steam turbines and gas turbines, providing early warning of rotor imbalance, bearing wear, and misalignment before these conditions escalate to forced outages. In petrochemical and refining plants, it is installed on centrifugal compressors and pumps handling hydrocarbons, where API 670 compliance is mandatory and continuous machinery protection is a regulatory requirement.

In LNG and gas processing facilities, the probe’s wide operating temperature range and armored cable construction make it suitable for both ambient and elevated-temperature machine environments. In mining and minerals processing, it monitors large rotating mills, crushers, and conveyor drive systems, where vibration anomalies can indicate structural fatigue or lubrication failure. In water and wastewater treatment plants, it supports condition monitoring of large vertical pumps and blowers, enabling predictive maintenance programs that reduce unplanned service interruptions. Across all these applications, the 330904-00-24-10-02-00 delivers the measurement consistency and system compatibility required to sustain reliable, long-term machinery health monitoring within a layered automation architecture.

Product Compatibility FAQ

Q1: Is the 330904-00-24-10-02-00 directly compatible with existing 3300 NSv monitor racks without additional signal conditioning?
Yes. The 330904-00-24-10-02-00 is designed for direct use with the 3300 NSv Series monitor system when paired with the appropriate 330130 Proximitor Sensor. No additional signal conditioning hardware is required, provided the Proximitor model matches the probe’s scale factor and cable length configuration. ZYPLC’s engineering team can confirm compatibility with your specific rack and monitor card configuration prior to shipment.

Q2: Can this probe be used as a direct replacement in an existing installation, and will it affect system calibration?
The 330904-00-24-10-02-00 is a standard replacement probe for 3300 NSv systems using the same cable length and tip diameter configuration. Replacement probes should be re-gapped and re-verified against the published voltage-gap curve to confirm calibration continuity. ZYPLC provides full traceability documentation with each unit, supporting calibration records and maintenance log requirements under API 670 and ISO 13373 standards.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system integration?
