Bently Nevada 330904-01-14-05-02-00 Proximity Probe for 3300 XL Systems

Bently Nevada 330904-01-14-05-02-00: Industrial Data Link for 3300 XL Vibration Monitoring Networks

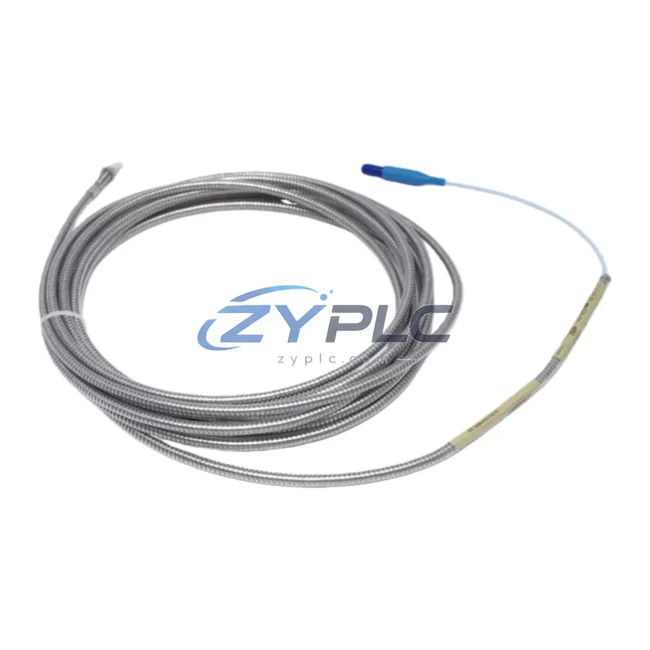

The Bently Nevada 330904-01-14-05-02-00 NSv Proximity Probe is a precision eddy-current sensing device engineered for continuous, real-time vibration and position monitoring in rotating machinery environments. As a core component of the Bently Nevada 3300 XL Series ecosystem, this proximity probe serves as the critical first node in the industrial data chain — converting mechanical shaft displacement and vibration into analog electrical signals that feed directly into the plant’s condition monitoring, SCADA, and predictive maintenance infrastructure.

In modern smart factory deployments, the integrity of the data link begins at the sensor level. The 330904-01-14-05-02-00 is designed to interface seamlessly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, forming a calibrated probe-cable-driver system that delivers consistent -24 VDC gap voltage output. This analog signal is then routed to the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module, where it is digitized, processed, and made available to the plant’s distributed control system (DCS) or SCADA platform via standard industrial communication protocols including Modbus RTU, Modbus TCP/IP, and OPC-UA.

The 330904-01-14-05-02-00 supports the full Bently Nevada System 1 software architecture, enabling seamless data aggregation from multiple monitoring points across turbines, compressors, pumps, and motors. Within System 1, vibration waveform data captured by this probe is transmitted over the plant Ethernet backbone to historian servers and HMI workstations, where operators can visualize shaft centerline plots, orbit diagrams, and trend data in real time. Integration with third-party SCADA platforms such as GE iFIX, Wonderware InTouch, or Siemens WinCC is achieved through the OPC-DA/OPC-UA gateway embedded in the 3500 rack’s communication module, ensuring that vibration data flows without interruption into the plant-wide data lake.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330904-01-14-05-02-00 proximity probe sits at the origin of a multi-layer industrial data flow. At the field level, the probe tip is mounted adjacent to the rotating shaft, and the eddy-current field generates a continuous analog voltage proportional to the gap distance. This signal travels through the matched Bently Nevada 330130-080-00-00 Extension Cable to the 330180-X1-05 Proximitor Sensor, which conditions and amplifies the signal before passing it to the 3500/42M Proximitor/Seismic Monitor installed in the 3500 rack chassis.

Within the 3500 rack, the 3500/20 Rack Interface Module (RIM) manages communication between the monitor cards and the plant network. The RIM supports both Modbus TCP/IP and Ethernet/IP, allowing the vibration data to be polled by a Siemens S7-400 PLC or an Allen-Bradley ControlLogix controller acting as the site’s primary process controller. These PLCs aggregate vibration data alongside process variables from remote I/O modules — such as the Bently Nevada 3500/61 Temperature Monitor or third-party Profibus PA field instruments — and forward the combined dataset to the plant DCS over a redundant fiber-optic ring network.

At the supervisory layer, the Bently Nevada System 1 software platform receives continuous data streams from all 3500 rack nodes across the facility. System 1 acts as both a condition monitoring historian and an OPC-UA server, publishing real-time vibration vectors, alarm states, and diagnostic data to the plant SCADA system. Operators at HMI workstations running GE iFIX or Wonderware InTouch can monitor shaft displacement trends, receive early-warning alarms for imbalance or misalignment, and initiate remote diagnostic sessions without interrupting production. For facilities deploying edge computing architectures, an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 series — can subscribe to the OPC-UA data feed from System 1 and forward compressed data packets to cloud-based analytics platforms for AI-driven predictive maintenance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is the coexistence of incompatible communication protocols across different generations of equipment. A turbine train may include a Bently Nevada 3300 XL proximity monitoring system alongside a Yokogawa DCS using FOUNDATION Fieldbus, a Siemens variable frequency drive communicating over Profibus DP, and a third-party safety instrumented system (SIS) using Modbus RTU. Without a unified data integration strategy, each of these systems operates as an isolated data island, making plant-wide transparency impossible.

The 330904-01-14-05-02-00, when deployed as part of the full 3500 Series monitoring rack, directly addresses this challenge. The 3500/20 RIM’s multi-protocol support allows vibration data to be simultaneously published to Modbus TCP/IP registers for legacy DCS polling and to OPC-UA nodes for modern SCADA and MES integration. This eliminates the need for custom protocol converters or middleware, reducing network latency and improving alarm response times. For remote monitoring applications — such as offshore platforms or unmanned compressor stations — the 3500 rack’s built-in Ethernet port enables secure VPN-based remote diagnostics, allowing Bently Nevada field engineers or plant reliability teams to access live waveform data and reconfigure alarm setpoints without dispatching personnel to site.

Scalability is another key advantage of the 3300 XL / 3500 architecture. As production capacity expands, additional 330904-series probes and 3500 monitor cards can be added to the existing rack chassis without redesigning the network topology. The System 1 software automatically discovers new monitoring points and integrates them into the existing historian and alarm management framework, ensuring that plant-wide condition monitoring scales in step with operational growth. Every unit shipped by ZYPLC undergoes pre-shipment functional testing, and all products are backed by a warranty terms confirmed during quotation, with RFQ-confirmed sourcing available for shipment arranged after confirmation to global destinations.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330904-01-14-05-02-00 support when integrated with the 3500 rack?
When paired with the 3500/20 Rack Interface Module, the system supports Modbus RTU, Modbus TCP/IP, Ethernet/IP, and OPC-UA. This allows the proximity probe data to be consumed by PLCs, DCS platforms, SCADA systems, and MES applications simultaneously, with typical network latency under 10 ms on a standard 100 Mbps industrial Ethernet segment.

Q2: Is the 330904-01-14-05-02-00 compatible with third-party SCADA and HMI platforms?
Yes. Via the OPC-UA server embedded in the Bently Nevada System 1 platform, vibration data from the 330904-01-14-05-02-00 can be consumed by any OPC-UA compliant SCADA or HMI, including Siemens WinCC, GE iFIX, Wonderware InTouch, Ignition by Inductive Automation, and Rockwell FactoryTalk. Direct Modbus TCP/IP polling is also supported for legacy systems.

Q3: How does the system maintain network stability in high-vibration or electrically noisy industrial environments?
The 330904-01-14-05-02-00 uses a shielded, armored coaxial cable construction that provides excellent immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI). The 3500 rack’s isolated power supply and differential signal conditioning further reject common-mode noise, ensuring stable analog output even in environments with large variable frequency drives or high-voltage switchgear nearby.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every 330904-01-14-05-02-00 unit supplied by ZYPLC is tested for gap voltage linearity, sensitivity (200 mV/mil ±10%), and cable continuity prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Availability is confirmed via RFQ for same-week dispatch, and expedited shipping to Asia-Pacific, Middle East, and European destinations is supported.
