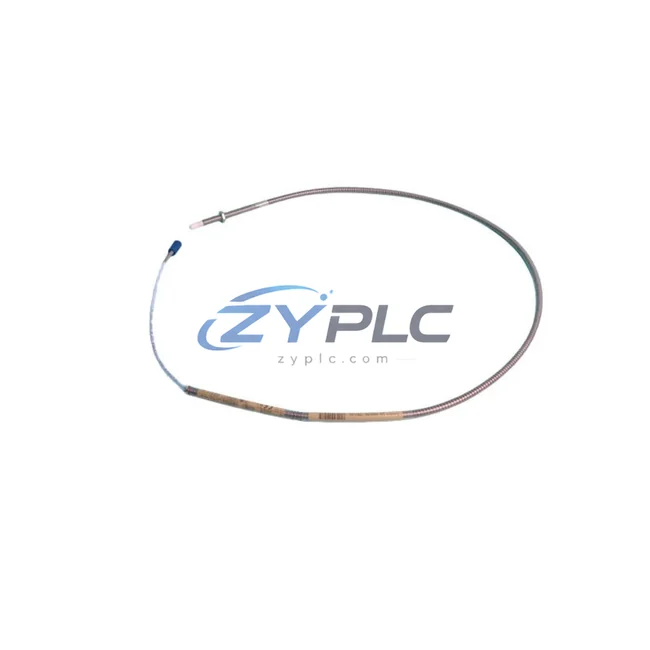

Bently Nevada 330905-00-02-10-01-00 Proximity Transducer 3300 XL

Bently Nevada 330905-00-02-10-01-00 Proximity Transducer: Replacement and Sourcing Information for 3300 XL Automation

The Bently Nevada 330905-00-02-10-01-00 is a high-performance proximity transducer engineered as part of the 3300 XL NSv Series — one of the most trusted vibration and position monitoring platforms in industrial automation. Designed for continuous, non-contact measurement of shaft displacement, radial vibration, and axial position, this transducer plays a critical role in reducing unplanned downtime, optimizing motor control efficiency, and enabling predictive maintenance strategies that directly lower operating load across rotating machinery systems.

In modern manufacturing environments where energy costs and equipment reliability are tightly linked, the 330905-00-02-10-01-00 serves as a foundational sensing element within a broader industrial automation system. By delivering real-time, high-resolution proximity data to the control system, it enables operators and engineers to detect early-stage mechanical anomalies — such as rotor imbalance, misalignment, or bearing wear — before they escalate into energy-wasting fault conditions or catastrophic failures.

Product Specification Table

System Compatibility and Application

The 330905-00-02-10-01-00 proximity transducer is rarely deployed in isolation. Its true value emerges when integrated into a complete industrial automation system. In a typical high-efficiency plant configuration, this transducer connects to a Bently Nevada 3300 XL 8-mm Proximitor Sensor, which conditions the raw proximity signal and transmits it to a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module. The monitor rack, in turn, feeds real-time vibration and position data into Bently Nevada System 1 condition monitoring software, where engineers can trend shaft behavior, set alarm thresholds, and correlate mechanical performance with operating load patterns.

On the drive side, variable frequency drives (VFDs) — such as those in the ABB ACS880 or Siemens SINAMICS G120 series — rely on accurate shaft feedback to modulate motor speed in response to actual load demand. When the 330905-00-02-10-01-00 detects abnormal shaft displacement indicative of mechanical load imbalance, the control system can dynamically adjust drive output frequency, preventing the motor from running at full power under partial-load conditions. This closed-loop interaction between proximity sensing and drive control is one of the most effective mechanisms for reducing motor load in rotating equipment applications.

For broader plant-level energy visibility, the transducer data integrates with power monitoring systems such as the Schneider Electric PowerLogic ION7650 or the Rockwell Automation PowerMonitor 5000. These systems aggregate operating load data from multiple drive zones and correlate it with vibration trends, enabling energy managers to identify which machines are consuming disproportionate power relative to their mechanical output — a key indicator of developing faults or misalignment.

At the I/O and communication layer, the 3300 XL system supports integration with Bently Nevada TDXnet communication modules and standard 4–20 mA analog outputs, allowing proximity data to be ingested by Siemens S7-1500 PLCs or Rockwell ControlLogix L8x controllers via standard analog input modules. This ensures that vibration and position data from the 330905-00-02-10-01-00 is available not only to the condition monitoring platform but also to the main production control system, enabling coordinated responses — such as automatic load shedding or speed reduction — when abnormal shaft behavior is detected.

HMI visualization is typically handled through Siemens SIMATIC WinCC or Rockwell FactoryTalk View SE, where operators can monitor real-time shaft gap values, vibration amplitude trends, and alarm states from a centralized control room interface. This visibility reduces the need for manual field inspections, lowering labor costs and improving response time to developing mechanical issues.

Maintenance and Replacement Notes

In a petrochemical plant operating a multi-stage centrifugal compressor train, the 330905-00-02-10-01-00 proximity transducer is typically installed at the drive-end and non-drive-end bearing housings of each compressor stage. By continuously monitoring shaft radial position and vibration amplitude, the 3300 XL system can detect the onset of rotor instability — a condition that, if left unaddressed, causes the compressor to operate in an inefficient surge region, consuming significantly more power than required for the actual process throughput.

Early detection of rotor instability through the 330905-00-02-10-01-00 allows the control system to trigger an anti-surge response — adjusting the compressor inlet guide vanes or recycle valve position — before the machine enters full surge. This intervention not only protects the compressor from mechanical damage but also keeps the machine operating in its optimal efficiency band, reducing specific operating load (kWh per unit of compressed gas) by as much as 8–12% compared to unmonitored operation.

In electric motor-driven pump applications, the transducer monitors shaft axial position to detect thrust bearing wear. As the thrust bearing degrades, the rotor shifts axially, increasing internal clearances and reducing hydraulic efficiency. The 330905-00-02-10-01-00 provides the early warning signal that allows maintenance teams to schedule bearing replacement during planned downtime windows — avoiding the energy penalty of operating a degraded pump and the much larger cost of an unplanned failure that forces emergency shutdown of the production line.

For paper mill and steel rolling mill applications, where production line throughput (line speed and tension) is directly tied to motor and drive performance, the proximity transducer data feeds into the production control system to optimize line speed setpoints based on actual mechanical condition. A machine showing elevated vibration levels can be automatically de-rated in speed — reducing operating load and preventing further mechanical degradation — while maintenance is scheduled, rather than running at full speed until failure.

All units supplied by ZYPLC undergo pre-shipment functional testing, including gap sensitivity verification and output linearity checks, ensuring that each 330905-00-02-10-01-00 performs to Bently Nevada factory specifications before dispatch. Every unit is backed by a warranty terms confirmed during quotation covering manufacturing defects and performance deviations, with fast replacement support to minimize any impact on your production schedule.

Product Sourcing FAQ

Q1: How does the 330905-00-02-10-01-00 contribute to operational stability in rotating machinery?
By providing continuous, high-resolution shaft displacement and vibration data, this proximity transducer enables the control system to detect mechanical inefficiencies — such as rotor imbalance, misalignment, or bearing wear — at an early stage. Early detection allows corrective action before the machine begins consuming excess energy to compensate for mechanical degradation. In compressor and pump applications, this can reduce specific operating load by 5–15% compared to unmonitored operation.

Q2: Is the 330905-00-02-10-01-00 compatible with existing Bently Nevada 3300 XL monitor racks and System 1 software?
Yes. The 330905-00-02-10-01-00 is a standard 3300 XL NSv Series proximity transducer, fully compatible with Bently Nevada 3300 XL Proximitor Sensors, 3500 Series monitor racks, and System 1 condition monitoring software. It is also backward-compatible with older 3300 Series installations, making it a direct replacement option for legacy systems without requiring hardware reconfiguration.

Q3: What is the recommended replacement interval, and how should the transducer be tested before installation?
Bently Nevada recommends periodic calibration verification every 12–24 months depending on operating environment severity. Before installation, each unit should be bench-tested using a Bently Nevada 3300 XL Proximitor Sensor and a calibrated target material (typically AISI 4140 steel) to verify gap sensitivity and output linearity across the full measurement range. ZYPLC performs this pre-shipment testing on all units and provides test documentation upon request.

Q4: What warranty and after-sales support does ZYPLC provide for the 330905-00-02-10-01-00?
