Bently Nevada 330905-00-13-10-01-00 Proximity Transducer 3300 XL

Bently Nevada 330905-00-13-10-01-00 Proximity Transducer 3300 XL: Control System and Upstream–Downstream Coordination

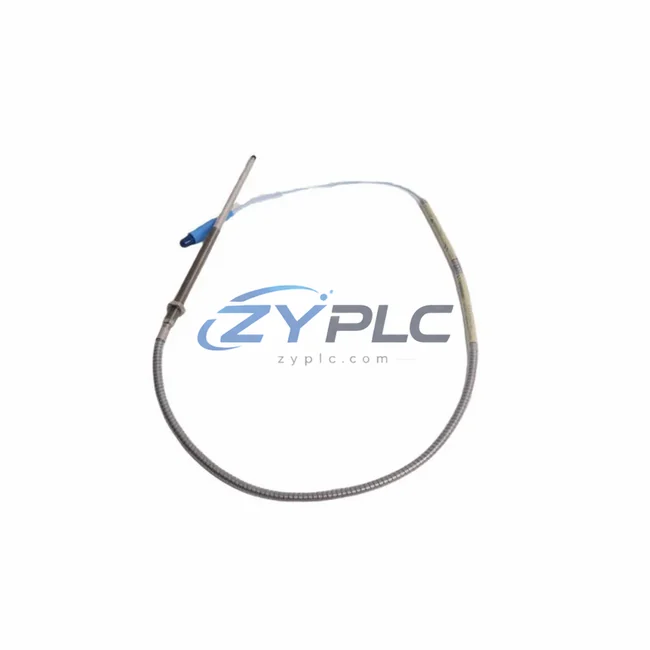

The Bently Nevada 330905-00-13-10-01-00 is a precision eddy-current proximity transducer engineered as a system-compatible sensing element within the 3300 XL Proximity Transducer System. In modern industrial automation, a single sensor is never evaluated in isolation — its value is defined by how seamlessly it integrates across the control layer, I/O layer, network layer, power layer, human-machine interface layer, and actuator layer. The 330905-00-13-10-01-00 is designed precisely for this multi-layer coordination, delivering consistent radial vibration and position signals that feed directly into the broader machinery protection and condition monitoring architecture.

Within a complete 3300 XL system, this transducer operates in conjunction with the 330180-91-05 extension cable and the 3300 XL 8mm Proximitor Sensor (such as the 330780-50-00), forming a three-component sensing chain. The Proximitor converts the raw eddy-current signal into a calibrated DC voltage output, which is then routed to the 3500/40M Proximitor/Seismic Monitor module housed within the 3500 Machinery Protection System rack. The 3500 rack itself integrates power, I/O, and communication functions through a modular backplane architecture, accepting inputs from multiple transducer channels simultaneously and providing real-time alarm and trip outputs to the plant DCS or safety instrumented system.

At the network layer, the 3500 system communicates via Modbus TCP, OPC-DA, or proprietary Bently Nevada System 1 software protocols, enabling system integration with plant-wide SCADA platforms, historian databases, and predictive maintenance systems. This means the vibration data captured by the 330905-00-13-10-01-00 does not remain siloed within the protection rack — it flows upward through the network layer to inform maintenance scheduling, asset health dashboards, and process optimization decisions. Engineers working with platforms such as GE System 1 Evolution or third-party CMMS solutions benefit directly from this contextual data pipeline.

From a power layer perspective, the 3300 XL Proximitor Sensor requires a regulated −24 VDC supply, typically sourced from the 3500/15 Power Supply module within the 3500 rack. Redundant power configurations are supported, ensuring that a single power supply failure does not interrupt vibration monitoring continuity — a critical requirement in turbomachinery protection applications where unplanned shutdowns carry significant operational and safety consequences. The 330905-00-13-10-01-00 transducer itself is a passive element with no internal power requirement, drawing its operating bias through the Proximitor, which simplifies field wiring and reduces potential failure points in the sensing chain.

At the human-machine interface layer, vibration trends, gap voltage readings, and alarm states captured through this transducer are visualized on operator workstations running System 1 software or integrated into DCS faceplate displays. Maintenance engineers can monitor dynamic signal waveforms, Bode plots, and orbit plots in real time, enabling rapid fault diagnosis without physical access to the machine. This capability is particularly valuable in high-availability environments such as gas turbine trains, centrifugal compressors, and large steam turbines where continuous operation is paramount.

The 330905-00-13-10-01-00 is rated for operation across a wide temperature range and is constructed with a stainless-steel housing suitable for installation in harsh industrial environments including petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing lines. Its 8mm probe diameter and standardized thread configuration ensure compatibility with existing bearing housing probe ports designed for the 3300 XL series, minimizing installation time during both new commissioning projects and replacement maintenance activities.

For system architects specifying a complete machinery protection solution, the 330905-00-13-10-01-00 pairs naturally with the 3500/22M Transient Data Interface for advanced waveform capture, the 3500/92 Communication Gateway Module for network integration, and the 3500/05 System Rack for housing all monitoring modules in a standardized 19-inch enclosure. Redundant monitor configurations using dual Proximitor channels provide voting logic capability, supporting SIL-rated safety architectures where required by process hazard analysis.

Long-term maintenance efficiency is a core design principle of the 3300 XL system. Because the transducer, extension cable, and Proximitor are individually replaceable field components, maintenance teams can swap a failed 330905-00-13-10-01-00 probe without disturbing the extension cable routing or the Proximitor mounting — reducing mean time to repair and minimizing exposure to confined-space or elevated-temperature work environments. Calibration verification can be performed in situ using a standard gap voltage check against the Proximitor output, without requiring specialized calibration equipment on-site.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that system integrators, OEM equipment builders, and plant maintenance teams can procure with confidence. Stock availability is maintained to support both planned capital projects and urgent breakdown replacement scenarios, with expedited shipping options available for critical plant situations.

Product Specification Table

System Compatibility Notes

A complete 3300 XL-based machinery protection architecture built around the 330905-00-13-10-01-00 typically includes the following coordinated components:

The 330780-50-00 Proximitor Sensor converts the eddy-current signal from the probe into a calibrated voltage output, forming the second element of the three-part sensing chain. The 330180-91-05 Extension Cable connects the probe to the Proximitor with defined electrical characteristics that preserve signal integrity over the cable run. The 3500/40M Proximitor/Seismic Monitor receives the conditioned signal and performs real-time alarm and trip processing within the 3500 rack. The 3500/15 Power Supply Module provides regulated −24 VDC to the Proximitor sensors and maintains redundant power availability across the rack. The 3500/05 System Rack serves as the mechanical and electrical backplane, housing all monitor, power, and communication modules in a standardized enclosure.

At the network layer, the 3500/92 Communication Gateway Module bridges the 3500 rack to plant Ethernet networks, enabling Modbus TCP and OPC-DA data exchange with DCS and SCADA systems. The 3500/22M Transient Data Interface captures high-resolution waveform data during startup, shutdown, and fault events, feeding the GE System 1 Evolution software platform for advanced diagnostics. For human-machine interface functions, operator workstations running System 1 display orbit plots, Bode plots, and trend data derived from the 330905-00-13-10-01-00 signal chain. In redundant protection architectures, dual-channel Proximitor configurations with voting logic modules provide the fault tolerance required for SIL 2 or SIL 3 rated safety loops. Terminal blocks and marshalling panels within the control cabinet complete the field wiring infrastructure, ensuring organized, maintainable cable management across multi-channel installations.

Industrial Application Notes

The 330905-00-13-10-01-00 finds application across a broad range of process industries where rotating machinery protection is critical to operational continuity and safety compliance.

In power generation facilities, this transducer monitors radial shaft vibration on steam turbines, gas turbines, and generator rotors, providing the continuous vibration data required by API 670 machinery protection standards. In petrochemical and refining plants, it is installed on centrifugal compressors, pumps, and expanders where bearing failure can trigger unplanned shutdowns with significant safety and environmental consequences. Offshore oil and gas platforms rely on the 3300 XL system’s compact, robust design to withstand marine environments while maintaining continuous protection of critical rotating equipment.

In water and wastewater treatment infrastructure, large pump stations and blower trains equipped with 3300 XL proximity systems benefit from early fault detection that extends equipment life and reduces emergency maintenance costs. Mining and minerals processing operations use this transducer on mill drives, conveyor head pulleys, and crusher main shafts, where vibration monitoring enables condition-based maintenance strategies that reduce unplanned downtime. In metallurgical and steel plants, continuous caster drives and rolling mill main drives are monitored using 3300 XL systems integrated with plant-level process control networks.

Packaging and discrete manufacturing lines increasingly adopt machinery protection systems for high-speed rotating equipment, using the 330905-00-13-10-01-00 in conjunction with 3500 rack systems to achieve the same level of protection previously reserved for heavy process industry applications. Across all these sectors, the system integration capability of the 3300 XL system — connecting transducer-level data to plant-wide information systems — transforms raw vibration measurements into actionable maintenance intelligence.

Product Compatibility FAQ

Q1: Is the 330905-00-13-10-01-00 compatible with existing 3300 XL Proximitor Sensors and 3500 monitor modules already installed in my plant?
Yes. The 330905-00-13-10-01-00 is a standard 8mm probe within the 3300 XL series and is designed for direct compatibility with 3300 XL Proximitor Sensors (such as the 330780-50-00) and all 3500/40M Proximitor/Seismic Monitor modules. The scale factor and electrical interface are consistent across the 3300 XL probe family, ensuring that replacement of an existing probe does not require recalibration of the Proximitor or reconfiguration of the 3500 monitor module, provided the gap voltage is verified within the linear range after installation.

Q2: How does this transducer support redundant and SIL-rated protection architectures?
The 330905-00-13-10-01-00 can be installed as one of two probes in a dual-channel radial vibration measurement configuration. When paired with a second probe at 90 degrees, the two channels provide orbit plot capability and support voting logic within the 3500 rack for redundant trip functions. For SIL-rated applications, the 3500 system’s certified safety functions — combined with the reliable signal output of the 3300 XL probe — support the fault tolerance requirements of SIL 2 safety instrumented functions as defined by IEC 61511. System architects should consult the 3500 system SIL documentation and perform a full FMEA to confirm the complete loop SIL rating.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
The warranty terms confirmed during quotation provided by ZYPLC covers the 330905-00-13-10-01-00 against defects in materials and workmanship from the date of shipment. Units are tested prior to dispatch to verify electrical performance within Bently Nevada specifications. For installation and commissioning support, ZYPLC’s technical team is available to assist with gap voltage setup procedures, extension cable selection, and integration guidance for the 3500 rack system. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for pre-sales technical consultation and post-sales warranty claims.
