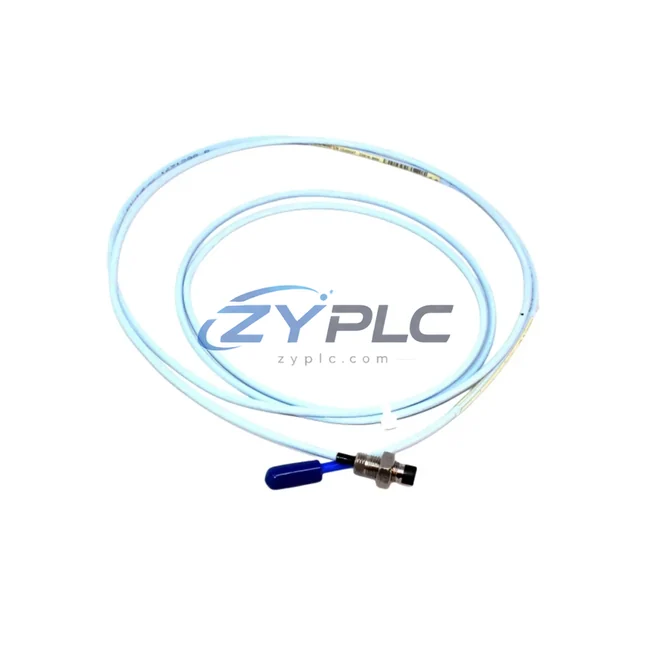

Bently Nevada 330908-22-31-10-01-05 NSV Proximity Probe

Bently Nevada 330908-22-31-10-01-05 NSV Proximity Probe: Control System and Upstream–Downstream Coordination

The Bently Nevada 330908-22-31-10-01-05 is a precision eddy-current proximity probe engineered for seamless integration within the 3300 NSV (Non-contacting Vibration) monitoring platform. In modern industrial automation, a proximity probe is far more than a standalone sensor — it is the foundational signal-acquisition node upon which the entire machinery protection and condition monitoring architecture depends. This product is designed to deliver consistent, low-noise displacement signals that feed directly into the 3300 NSV signal conditioning chain, enabling plant engineers to maintain continuous, real-time awareness of shaft vibration, axial position, and differential expansion across rotating machinery assets.

Within a layered control system, the 330908-22-31-10-01-05 operates at the field instrumentation layer, interfacing upward with the 3300/16-Channel Monitor, the 3500/42M Proximitor I/O Module, and the 3500 Rack-based machinery protection system. Its output is conditioned through the 3300 XL 8mm Proximitor Sensor before being transmitted to the control layer, where a DCS or safety instrumented system — such as a Rockwell Automation ControlLogix or Honeywell Experion PKS — processes the vibration data for alarm management and trip logic. This architecture ensures that the proximity probe’s signal is never isolated but always part of a coherent, redundant monitoring chain.

Product Specification Table

System Compatibility Notes

The 330908-22-31-10-01-05 proximity probe achieves its full value only when considered within the complete Bently Nevada 3300/3500 system architecture. At the signal-conditioning layer, the probe pairs with the 3300 XL 8mm Proximitor Sensor, which provides the –24 VDC excitation voltage and converts the probe’s impedance change into a calibrated DC voltage output. This conditioned signal is then routed to the 3500/42M Proximitor I/O Module, which resides in the 3500 Rack — a modular, 19-inch rack-mount chassis that supports up to 14 I/O modules and provides the structural backbone of the machinery protection system.

For redundancy-critical applications such as steam turbine protection or gas compressor monitoring, the 3500 Rack supports dual-voting architectures where two proximity probes — including a redundant 330908-series unit — monitor the same shaft plane. The 3500/20 Rack Interface Module manages communication between the rack and the plant DCS via Modbus TCP or OPC-DA, ensuring that vibration data is available at the SCADA and historian layers without latency. In facilities running a System 1 Evolution software platform, the proximity probe’s data stream is archived continuously, enabling trend analysis, alarm rationalization, and predictive maintenance scheduling.

At the power layer, the 3500/15 Power Supply Module delivers regulated DC power to all I/O modules within the rack, including the Proximitor I/O that interfaces with the 330908-22-31-10-01-05. For SIL-rated installations, a redundant power supply configuration — using two 3500/15 modules in a 1oo2 voting arrangement — ensures that a single power supply failure does not interrupt machinery protection. The 3500/92 Communication Gateway Module further extends the system’s integration capability, bridging the 3500 rack to Ethernet-based plant networks and enabling remote diagnostics from the control room HMI.

At the human-machine interface layer, operators interact with proximity probe data through the Bently Nevada System 1 Software dashboard, which displays real-time vibration waveforms, orbit plots, and Bode diagrams derived from the 330908-series probe signals. This system integration — from field probe to HMI visualization — is what distinguishes a well-engineered machinery protection system from a collection of isolated instruments.

Industrial Application Notes

Power Generation: In combined-cycle power plants, the 330908-22-31-10-01-05 is installed on the journal bearings of gas turbines and steam turbines to monitor radial shaft vibration. The probe’s signal feeds the 3500 machinery protection rack, which is hardwired to the turbine control system’s emergency trip relay. Any vibration exceedance triggers an automatic shutdown sequence, protecting multi-million-dollar rotating assets from catastrophic failure.

Oil & Gas / Petrochemical: On centrifugal compressors in LNG trains and refinery gas circuits, proximity probes of the 330908 series monitor both radial vibration and axial thrust position. The dual-measurement capability — achieved by deploying radial and axial probe pairs — provides a complete picture of rotor dynamics, enabling engineers to detect surge, rub, and bearing wear before they escalate to unplanned shutdowns.

Water Treatment & Utilities: Large vertical pump stations and blower systems in municipal water treatment facilities use proximity probes to monitor shaft runout and bearing condition. The 330908-22-31-10-01-05’s robust construction and wide operating temperature range make it suitable for the humid, chemically aggressive environments common in water and wastewater infrastructure.

Mining & Metallurgy: In ore processing plants, ball mills, SAG mills, and large fan drives are equipped with proximity probe systems to detect imbalance and misalignment. The 3300 NSV platform’s compatibility with the 330908-series probe allows mining operators to standardize their condition monitoring architecture across multiple asset classes, reducing spare parts inventory complexity and training overhead.

Packaging & Process Manufacturing: High-speed rotary equipment in food, beverage, and pharmaceutical packaging lines benefits from the 330908-22-31-10-01-05’s fast dynamic response, which captures vibration events at shaft speeds exceeding 10,000 RPM. Integration with the plant’s DCS via the 3500 communication gateway enables automated production line adjustments based on real-time machinery health data.

Product Compatibility FAQ

Q1: Is the 330908-22-31-10-01-05 compatible with both the 3300 and 3500 Bently Nevada rack systems?
Yes. The 330908-22-31-10-01-05 proximity probe is designed for use with the 3300 XL Proximitor Sensor, which is compatible with both the legacy 3300 rack system and the current-generation 3500 machinery protection platform. When used with the 3500/42M Proximitor I/O Module, the probe integrates directly into the 3500 rack architecture, supporting full alarm, danger, and trip functionality. Engineers migrating from 3300 to 3500 systems can retain existing 330908-series probes, reducing upgrade costs and maintaining measurement continuity.

Q2: How does the warranty terms confirmed during quotation apply to this proximity probe, and what does it cover?
The warranty terms confirmed during quotation covers manufacturing defects, signal calibration accuracy, and physical integrity of the probe body, cable, and connector assembly from the date of shipment. If the probe exhibits signal drift, connector failure, or mechanical damage attributable to manufacturing, a replacement unit will be dispatched. The warranty does not cover damage resulting from installation errors, incompatible target materials, or operation outside the specified temperature and chemical exposure limits. Warranty claims are processed through ZYPLC’s technical support team at plc.sales@zyplc.com.

Q3: What are the key installation and commissioning considerations for the 330908-22-31-10-01-05 in a redundant machinery protection architecture?
During installation, engineers must verify that the probe tip-to-target gap is set within the linear range of the Proximitor — typically 1.0 mm to 2.25 mm for 8 mm probes — using a calibrated gap voltage measurement at the Proximitor output. Cable routing must avoid high-voltage power conductors to prevent electromagnetic interference with the probe’s low-level analog signal. In redundant architectures, the two proximity probes monitoring the same shaft plane should be installed 90° apart (X–Y configuration) to enable orbit plot analysis. After installation, a full system functional test — including simulated vibration alarm and trip verification — should be performed before the machinery is returned to service. Long-term maintenance intervals should be aligned with the plant’s turnaround schedule, with probe gap verification recommended at each planned outage.
