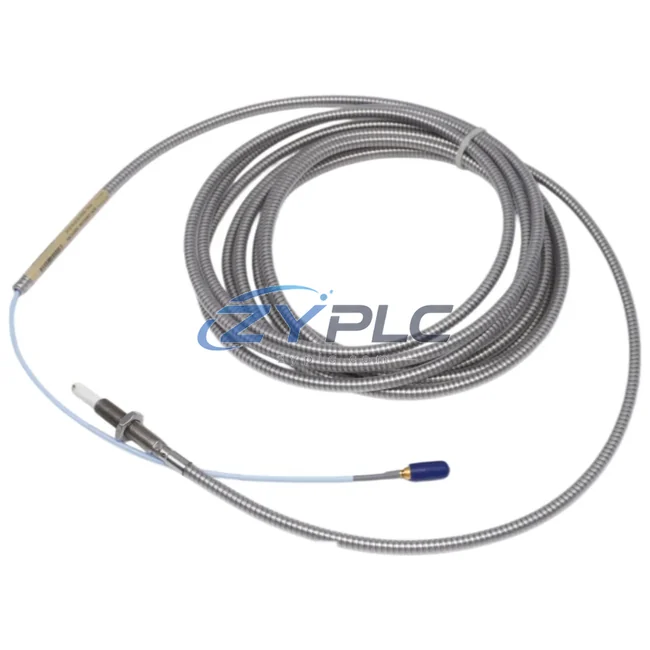

The Bently Nevada 330910-00-09-10-01-00 is a high-precision NSv Proximity Probe engineered for the 3300 Series machinery protection and condition monitoring platform. In modern smart factory environments, rotating machinery health data must flow seamlessly from field sensors through signal conditioning modules, across industrial communication networks, and into SCADA, DCS, and asset management systems — without latency, data loss, or protocol mismatch. The 330910-00-09-10-01-00 sits at the very origin of this data chain, converting physical shaft displacement and vibration into reliable analog signals that feed the entire industrial connectivity architecture.

Designed to operate within the Bently Nevada 3300 NSv ecosystem, this proximity probe pairs directly with the Bently Nevada 3300 XL 8mm Extension Cable and 3300 XL Proximitor Sensor to form a complete eddy-current sensing loop. The Proximitor converts the probe’s raw oscillator output into a calibrated DC voltage signal — typically –200 mV/mil or –7.87 V/mm — which is then routed to the Bently Nevada 3500/42M Proximitor/Seismic Monitor rack module. From there, the 3500 rack communicates machinery health data upstream via Modbus TCP/IP, OPC-UA, or 4–20 mA analog outputs to plant-level SCADA systems such as GE iFIX, Wonderware AVEVA, or Emerson DeltaV DCS.

Within a connected automation architecture, the 330910-00-09-10-01-00 probe’s signal path integrates with Bently Nevada System 1 Condition Monitoring Software, enabling real-time vibration trending, alarm management, and remote diagnostics across multiple machine trains simultaneously. Engineers at the control room level can monitor shaft centerline plots, orbit diagrams, and Bode plots without physically accessing the machine floor — a critical capability for hazardous or hard-to-reach installations in oil & gas, power generation, and petrochemical plants.

Compatibility & Integration Notes

Connected Automation Data Flow

The industrial data flow originating from the 330910-00-09-10-01-00 proximity probe illustrates the full connectivity chain of a modern predictive maintenance architecture. At the field level, the probe is mounted adjacent to the rotating shaft of a turbine, compressor, pump, or motor. It continuously measures radial shaft displacement and feeds this analog signal through a matched Bently Nevada 3300 XL 5-metre Extension Cable to the 3300 XL 8mm Proximitor Sensor, which conditions and linearizes the signal for transmission.

The conditioned output enters the Bently Nevada 3500/42M Proximitor/Seismic Monitor module housed in the 3500 rack. This rack-based system aggregates data from multiple probes — including radial vibration, axial position, and speed — and communicates with the plant DCS via Modbus RTU over RS-485 or Modbus TCP/IP over Ethernet. For facilities running OPC-compliant SCADA platforms, the 3500 rack’s OPC-UA server interface enables direct tag subscription by historian systems such as OSIsoft PI or Honeywell Uniformance PHD.

At the network layer, industrial Ethernet switches — such as those in the Hirschmann MICE or Moxa EDS series — provide managed Layer 2 connectivity between the 3500 rack, the engineering workstation running Bently Nevada System 1 software, and the plant-wide SCADA server. Redundant ring topologies using RSTP or MRP protocols ensure that a single cable fault does not interrupt vibration data streaming to the control room.

For remote sites or offshore platforms, an industrial edge gateway — such as the Moxa UC-8112 or Advantech WISE-5000 — can aggregate Modbus data from multiple 3500 racks and transmit compressed, encrypted machinery health packets over 4G LTE or satellite links to a central asset management server. This architecture enables condition monitoring engineers to perform remote diagnostics, review alarm histories, and adjust alert thresholds without dispatching field personnel — reducing maintenance costs and unplanned downtime across geographically distributed plant assets.

The 330910-00-09-10-01-00 probe also integrates naturally into HMI-level visualization. Operators using Siemens WinCC, Rockwell FactoryTalk View, or Inductive Automation Ignition HMI platforms can display real-time shaft vibration trends, gap voltage readings, and alarm states on touchscreen panels located at the machine skid or in the central control room. When vibration amplitude exceeds the danger setpoint, the 3500 rack triggers a relay output to the machine’s safety PLC — such as a Rockwell Allen-Bradley GuardLogix or Siemens S7-300F — initiating an automated shutdown sequence to protect the asset.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial plants is data isolation — machinery protection systems that operate as standalone islands, unable to share vibration data with the plant DCS, ERP, or cloud-based asset management platforms. The Bently Nevada 330910-00-09-10-01-00 proximity probe, when deployed within the 3300/3500 system architecture, directly addresses this problem by providing a standards-compliant analog and digital signal chain that bridges field-level sensing with enterprise-level data systems.

Plants running mixed-protocol environments — where older 4–20 mA analog loops coexist with modern HART, Modbus TCP, or PROFIBUS DP networks — can use the 3500 rack’s multi-protocol output capability to simultaneously feed both legacy DCS analog inputs and modern OPC-UA data consumers. This eliminates the need for costly parallel wiring infrastructure and allows a phased digital transformation without shutting down production.

Protocol unification is further simplified when the 3500 rack is paired with a dedicated protocol gateway — such as the HMS Anybus X-gateway or Moxa MGate MB3660 — which can translate Modbus RTU data from the rack into PROFINET, EtherNet/IP, or DNP3 frames required by the plant’s primary automation controller. This approach allows the Bently Nevada vibration monitoring system to participate fully in the plant’s unified data highway without requiring firmware changes to the 3500 rack itself.

For production line transparency, the continuous vibration data stream from the 330910-00-09-10-01-00 probe enables maintenance teams to implement ISO 10816 / ISO 20816 compliant vibration severity trending, with automatic alarm escalation from advisory to danger levels. Integrated with a CMMS platform such as IBM Maximo or SAP PM, these alarm events can automatically generate work orders, reducing the mean time to repair (MTTR) and extending the mean time between failures (MTBF) of critical rotating assets.

System scalability is a key advantage of the 3300/3500 architecture. Additional proximity probes — including complementary models such as the Bently Nevada 330130-080-00-00 (3300 XL 8mm probe) or the 330180-91-05 (3300 5mm probe) — can be added to the same rack without reconfiguring the network infrastructure, allowing the monitoring system to grow alongside the plant’s asset base.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 rack support when used with the 330910-00-09-10-01-00 proximity probe?
The 3500 rack supports Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), OPC-DA/OPC-UA server interfaces, and 4–20 mA analog outputs. This allows the vibration data captured by the 330910-00-09-10-01-00 probe to be consumed by virtually any modern DCS, SCADA, historian, or asset management platform without additional protocol conversion hardware.

Q2: How does the 330910-00-09-10-01-00 perform in high-EMI industrial environments, and will signal integrity be maintained over long cable runs?
The 330910-00-09-10-01-00 uses a coaxial cable assembly with a shielded, low-capacitance design that minimizes electromagnetic interference pickup. When combined with the matched Bently Nevada extension cable and Proximitor sensor, the system maintains signal integrity over combined probe-plus-extension lengths up to 9 metres, even in high-EMI environments typical of motor control centers, variable frequency drives, and high-voltage switchgear rooms.

Q3: Can the 330910-00-09-10-01-00 proximity probe be integrated into an existing SCADA or DCS system without replacing the entire monitoring rack?
Yes. The probe’s analog output — conditioned by the Proximitor sensor — is compatible with any standard 4–20 mA or ±24V DC analog input card used in major DCS platforms including Emerson DeltaV, Honeywell Experion, ABB 800xA, and Yokogawa CENTUM VP. For digital integration, the 3500 rack’s Modbus or OPC-UA interface can be connected to the existing plant network without disrupting ongoing operations.

Q4: What quality assurance and warranty coverage is provided for the 330910-00-09-10-01-00?
Every 330910-00-09-10-01-00 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify gap voltage output, sensitivity calibration, and cable continuity. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a verified defect, ZYPLC provides replacement or repair support with expedited DHL/FedEx international logistics to minimize plant downtime.
