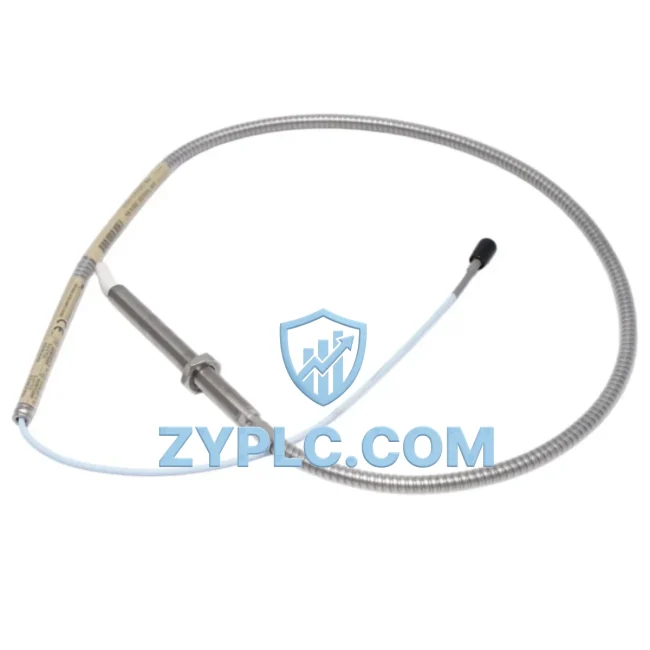

Bently Nevada 330910-00-16-10-01-00 3300 Series Proximity Probe

Bently Nevada 330910-00-16-10-01-00 3300 Series Proximity Probe: Precision Energy-Efficient Vibration Control

The Bently Nevada 330910-00-16-10-01-00 is a high-performance eddy-current proximity probe from the renowned 3300 Series, engineered for continuous, non-contact vibration and position measurement in rotating machinery. In modern industrial facilities where energy efficiency and equipment uptime are mission-critical, this probe plays a central role in reducing unnecessary energy consumption caused by undetected mechanical imbalance, misalignment, and bearing wear. By delivering real-time shaft displacement data with exceptional accuracy, the 330910-00-16-10-01-00 enables plant engineers to intervene before minor inefficiencies escalate into costly failures and unplanned downtime.

Designed for seamless integration into Bently Nevada’s 3300 Series monitoring architecture, this proximity probe operates reliably in harsh industrial environments — including high-temperature, high-vibration, and chemically aggressive settings — making it a trusted component in turbines, compressors, pumps, motors, and gearboxes across oil & gas, power generation, petrochemical, and heavy manufacturing sectors.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 330910-00-16-10-01-00 proximity probe does not operate in isolation — it is the sensing front-end of a tightly integrated energy-aware automation architecture. Paired with the Bently Nevada 3300 XL 8-mm Proximity Transducer System driver and the 3500/42M Proximitor/Seismic Monitor, it feeds continuous shaft displacement signals into the plant’s condition monitoring backbone. These signals are processed by the Bently Nevada System 1 Condition Monitoring Software, which correlates vibration trends with energy consumption patterns — flagging machines that are drawing excess power due to mechanical degradation.

In a typical drive train, the proximity probe works alongside Bently Nevada 330130-080-00-00 extension cables and 330180-X1-05 Proximitor sensors to form a complete measurement chain. When integrated with a Rockwell Automation Allen-Bradley PowerFlex 755 variable frequency drive (VFD) or a Siemens SINAMICS G120 drive, the vibration data captured by the 330910-00-16-10-01-00 can be used to dynamically adjust motor speed — reducing energy consumption during low-load periods and preventing resonance-induced losses at critical speeds.

For facilities running GE Fanuc Series 90-30 PLCs or Siemens S7-300/S7-400 controllers, the probe’s output integrates via standard 4–20 mA or Modbus RTU interfaces, enabling closed-loop energy optimization without requiring a full system overhaul. The Bently Nevada 3500 Rack further consolidates data from multiple probes — including radial and thrust probes — into a unified monitoring view, reducing the engineering overhead of managing distributed sensor networks.

On the power quality side, pairing this probe system with a Schneider Electric PowerLogic ION7650 power meter allows engineers to correlate shaft vibration events with real-time power draw spikes, identifying which machines are consuming disproportionate energy relative to their mechanical output. This cross-domain visibility is the foundation of a truly energy-optimized production line.

Power Optimization in Real Production Lines

In a cement plant running large ball mill motors, undetected rotor imbalance can increase motor current draw by 8–15%, translating directly into wasted kilowatt-hours and accelerated bearing wear. The Bently Nevada 330910-00-16-10-01-00 proximity probe continuously monitors shaft displacement at the drive-end and non-drive-end bearings, providing the early warning data needed to schedule corrective balancing before energy waste compounds. Maintenance teams using this data have reported reductions in unplanned downtime of up to 30%, with corresponding improvements in overall equipment effectiveness (OEE).

In compressor stations, axial thrust monitoring via the 330910-00-16-10-01-00 prevents the catastrophic — and energy-intensive — scenario of rotor-to-stator contact. By maintaining optimal axial clearances, the probe ensures that the compressor operates at its designed efficiency curve, avoiding the steep energy penalties associated with mechanical interference and surge conditions.

For pump systems, the probe’s radial vibration data feeds directly into predictive maintenance workflows. When vibration amplitude trends upward — indicating impeller wear or cavitation onset — the control system can automatically reduce pump speed via the connected VFD, cutting energy consumption while the maintenance team prepares for a planned intervention. This approach eliminates the energy waste of running a degraded pump at full speed and avoids the much larger energy cost of an emergency shutdown and restart cycle.

The 330910-00-16-10-01-00 also supports production line rhythm optimization. In multi-machine production cells, synchronized vibration monitoring across all rotating assets allows the plant’s energy management system to stagger startup sequences, avoiding simultaneous inrush current peaks that inflate demand charges. Each unit shipped from ZYPLC undergoes full functional testing and output verification, ensuring that the probe’s sensitivity and linearity meet factory specifications from day one — with a 12-month warranty covering parts and workmanship.

Energy Optimization FAQ

Q1: How does the 330910-00-16-10-01-00 contribute to measurable energy savings?
By providing continuous, high-resolution shaft displacement data, this proximity probe enables early detection of mechanical faults — imbalance, misalignment, bearing wear — that cause rotating machinery to draw excess current. Correcting these faults based on probe data typically reduces motor energy consumption by 5–15% per affected machine, with payback periods measured in weeks rather than years.

Q2: Is the 330910-00-16-10-01-00 compatible with my existing Bently Nevada 3500 monitoring rack?
Yes. The 330910-00-16-10-01-00 is fully compatible with the Bently Nevada 3500 Series monitoring rack when used with the appropriate Proximitor driver (such as the 330180 series). It also integrates with the 3300 XL monitor system. Always verify cable length and driver gap voltage settings match your installation requirements.

Q3: What is the recommended replacement interval, and how does proactive replacement reduce energy waste?
Bently Nevada proximity probes do not have a fixed replacement interval under normal operating conditions, as they are non-contact sensors with no moving parts. However, ZYPLC recommends periodic calibration verification every 12–24 months. A probe with degraded sensitivity may under-report vibration, masking developing faults and allowing energy-wasting mechanical degradation to continue undetected. Proactive replacement based on calibration data is always more cost-effective than reactive replacement after a failure event.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Every Bently Nevada 330910-00-16-10-01-00 unit supplied by ZYPLC is tested for output linearity, sensitivity coefficient, and frequency response before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support, and replacement units are dispatched from stock to minimize your production downtime.
