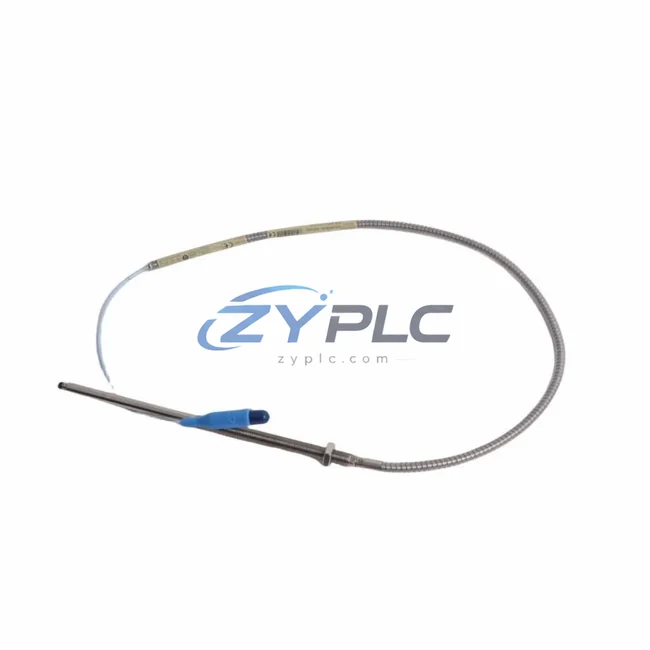

Bently Nevada 330910-00-17-50-02-00 Proximity Transducer 3300 XL NSV

Bently Nevada 330910-00-17-50-02-00: Industrial Vibration Data Link for Smart Factory Rotating Machinery Protection

The Bently Nevada 330910-00-17-50-02-00 is a high-precision proximity transducer from the 3300 XL NSV (Non-contact Shaft Vibration) series, engineered for continuous vibration and position monitoring of rotating machinery in critical industrial environments. As a core sensing node in the plant-wide data acquisition chain, this transducer converts mechanical shaft displacement into analog electrical signals — forming the foundation of a real-time condition monitoring network that feeds directly into DCS, SCADA, and machinery protection systems.

In modern smart factory architectures, the 330910-00-17-50-02-00 sits at the field device layer, capturing radial vibration, axial position, and differential expansion data from turbines, compressors, pumps, and motors. Its output signal is transmitted to the Bently Nevada 3300 XL signal conditioning system, where raw analog data is processed, scaled, and converted for upstream communication. From there, the conditioned signal integrates seamlessly with the System 1 Condition Monitoring Software platform — enabling real-time trending, alarm management, and predictive maintenance analytics across the entire rotating equipment fleet.

Compatibility & Integration Notes

Connected Automation Data Flow

The 330910-00-17-50-02-00 proximity transducer operates as the primary sensing element within a layered industrial data architecture. Installed at the bearing housing of a high-speed compressor or steam turbine, the transducer continuously measures shaft gap voltage and transmits the analog signal to the Bently Nevada 3300 XL Proximitor Sensor — the signal conditioning module that powers the probe and linearizes the output for downstream processing.

The conditioned vibration signal then enters the Bently Nevada 3500 Series Machinery Protection System rack, where dedicated monitor cards — such as the 3500/42M Proximitor/Seismic Monitor — evaluate the signal against configurable alarm and danger setpoints. When a threshold is exceeded, the 3500 rack triggers relay outputs to the plant DCS (e.g., Emerson DeltaV or Honeywell Experion PKS), initiating automated protective actions such as turbine trip or load shedding.

Simultaneously, the vibration data is routed via OPC-UA or Modbus TCP through an industrial Ethernet switch — such as a managed Layer 2 switch with PROFINET support — to the System 1 Condition Monitoring Software server. System 1 aggregates data from multiple 3300 XL and 3500 Series nodes across the plant, providing a unified SCADA-level dashboard for vibration trending, spectrum analysis, and predictive maintenance scheduling. Operators at the control room HMI — running on platforms such as Wonderware InTouch or FactoryTalk View — receive real-time vibration amplitude, phase, and gap readings with millisecond-level update rates.

For remote sites or offshore platforms, an edge gateway device collects the OPC-UA data stream from the System 1 server and transmits compressed condition monitoring reports over secure industrial VPN to the central asset management cloud. This enables remote diagnostics, alarm acknowledgment, and maintenance work order generation without requiring on-site personnel — a critical capability for reducing unplanned downtime in continuous-process industries.

The 330910-00-17-50-02-00 is also compatible with the Bently Nevada TK-3 Transducer Calibration Kit for field verification, and can be paired with the 330130 Extension Cable and 330180 Proximitor Sensor to form a complete proximity measurement chain. In multi-shaft train configurations — such as a gas turbine driving a centrifugal compressor — multiple 330910 probes are deployed at each bearing journal, with all channels feeding into a common 3500/22M Transient Data Interface for startup and shutdown transient capture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery protection is data isolation — where vibration sensors, protection monitors, DCS controllers, and SCADA systems operate in disconnected silos, preventing plant engineers from correlating mechanical condition data with process variables such as flow, pressure, and temperature.

The Bently Nevada 330910-00-17-50-02-00, when integrated within the 3300 XL and 3500 Series ecosystem, directly addresses this challenge. By standardizing on analog signal output compatible with any signal conditioner or monitor card, the transducer eliminates proprietary sensor lock-in and enables cross-platform data aggregation. The System 1 software layer then bridges the gap between the machinery protection network and the plant SCADA, exposing vibration KPIs — overall vibration level, 1X/2X amplitude, Bode plots, and orbit diagrams — as OPC-UA data points consumable by any modern DCS or historian platform.

For plants operating legacy Modbus RTU fieldbus networks alongside newer PROFINET or EtherNet/IP infrastructure, a protocol gateway module can be deployed between the 3500 rack communication output and the plant network backbone, ensuring that vibration data reaches the control room regardless of the underlying network topology. This architecture supports phased digital transformation — allowing plants to modernize their condition monitoring capabilities without replacing existing DCS or PLC infrastructure.

Remote monitoring capability is further enhanced through alarm forwarding: when the 330910-00-17-50-02-00 detects abnormal shaft vibration, the 3500 rack generates a digital alarm output that propagates through the DCS to the plant-wide alarm management system, triggering SMS or email notifications to maintenance engineers. Combined with remote diagnostic access via System 1’s web client, this creates a closed-loop condition monitoring workflow that reduces mean time to repair (MTTR) and extends equipment service intervals.

Every 330910-00-17-50-02-00 unit supplied by ZYPLC undergoes pre-shipment functional verification, including probe sensitivity check, gap voltage calibration, and output linearity test. All units are backed by a warranty terms confirmed during quotation covering manufacturing defects and performance deviations, with availability confirmed by RFQ availability ensuring rapid dispatch to support planned maintenance outages and emergency replacement requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 330910-00-17-50-02-00 support for SCADA integration?
The 330910-00-17-50-02-00 outputs an analog voltage signal to the 3300 XL Proximitor Sensor and monitor rack. The 3500 Series rack communicates with SCADA and DCS systems via Modbus RTU/TCP, OPC-UA (through System 1 software), and optionally PROFIBUS or EtherNet/IP through compatible gateway modules. This makes the transducer compatible with virtually all major industrial automation platforms.

Q2: How does this transducer ensure network stability and data continuity in high-vibration environments?
The 330910-00-17-50-02-00 uses eddy-current sensing technology with no moving parts, providing inherently stable and continuous analog output even in high-vibration, high-temperature, and electromagnetically noisy industrial environments. The signal conditioning chain — from Proximitor Sensor through the 3500 monitor rack — includes hardware filtering and signal validation to ensure data integrity before transmission to the plant network.

Q3: Can the 330910-00-17-50-02-00 be integrated into an existing DCS or PLC-based control system without replacing the current infrastructure?
Yes. The analog output of the 330910-00-17-50-02-00 is compatible with standard 4–20 mA analog input cards on any major DCS or PLC platform, including Siemens S7, Allen-Bradley ControlLogix, and Emerson DeltaV. For digital integration, the 3500 rack’s Modbus TCP or OPC-UA interface allows vibration data to be mapped directly into existing SCADA historian tags without infrastructure replacement.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
All 330910-00-17-50-02-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and performance non-conformance. Pre-shipment testing includes probe sensitivity verification (V/mm output check), gap voltage linearity test across the full measurement range, and cable continuity inspection. Test records are available upon request. Units are shipped with original packaging and documentation to ensure traceability.
