In modern industrial control system design, every component must earn its place within a layered architecture — from the field sensor level through the I/O layer, communication backbone, and up to the supervisory control and HMI layer. The Bently Nevada 330910-06-25-05-11-00 proximity probe is engineered precisely for this kind of system integration. As a core sensing element within the Bently Nevada 3300 NSv vibration monitoring platform, this probe does not operate in isolation — it functions as the foundational signal source for an entire chain of condition monitoring, protection logic, and predictive maintenance decisions that span multiple system layers.

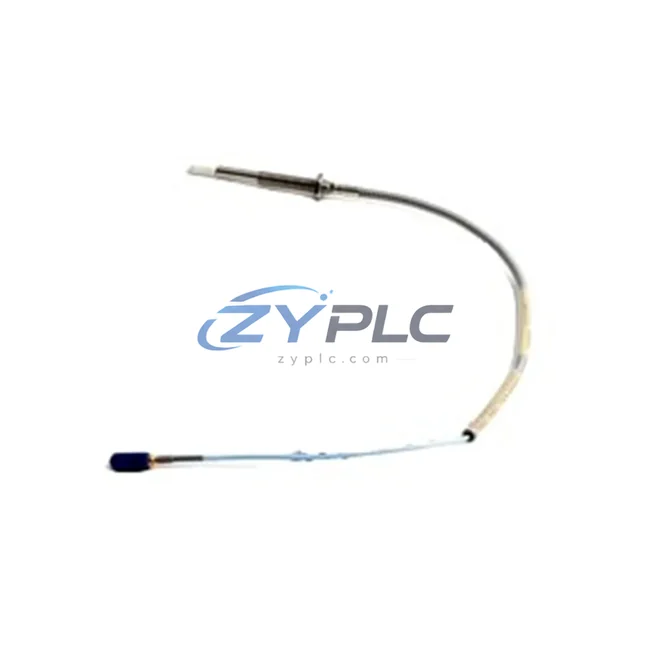

The 330910-06-25-05-11-00 is a 25mm cable, 5mm tip diameter, non-contact eddy-current proximity probe designed to measure radial shaft vibration, axial position, and differential expansion on rotating machinery. Its output signal is conditioned through the companion Bently Nevada 3300 XL 8mm Extension Cable and processed by the 3300 NSv Proximitor Sensor, which converts raw eddy-current displacement into a calibrated DC voltage signal. This signal is then routed into the 3500/42M Proximitor/Seismic Monitor or equivalent 3500 series rack-mounted monitor cards, where protection setpoints, alert thresholds, and trip logic are enforced in real time.

Within a complete Bently Nevada 3500 rack system, the 330910-06-25-05-11-00 probe integrates seamlessly with the 3500/20 Rack Interface Module, which manages communication between the monitor cards and the plant DCS or safety system via Modbus, Ethernet/IP, or Profibus. The 3500/15 Power Supply Module provides stable, isolated DC power to the entire rack, ensuring that transient load variations on the plant power bus do not introduce noise into the vibration signal chain — a critical requirement when monitoring high-speed turbines, compressors, or pumps where sub-micron displacement accuracy is essential.

At the control layer, the vibration data collected by the 330910-06-25-05-11-00 feeds into plant-wide condition monitoring platforms such as the System 1 Evolution software suite, where trend analysis, spectrum data, and alarm histories are aggregated across multiple machine trains. This system integration allows maintenance engineers to correlate vibration signatures with process variables — flow rates, temperatures, pressures — sourced from other I/O modules and field instruments, enabling true predictive maintenance rather than reactive repair cycles.

For facilities operating redundant protection architectures, the 330910-06-25-05-11-00 can be deployed in dual-probe configurations, with each probe feeding an independent monitor channel within the 3500 rack. This redundancy design ensures that a single probe failure does not result in a protection gap or spurious trip, maintaining both machinery safety and production continuity. The 3500/22M Transient Data Interface further extends the system’s diagnostic capability by capturing high-resolution waveform data during startup, shutdown, and transient events — data that is invaluable for root cause analysis and long-term reliability engineering.

From an installation and commissioning perspective, the 330910-06-25-05-11-00 follows the standard Bently Nevada gap voltage calibration procedure. The probe is installed at the specified air gap from the shaft surface, and the Proximitor output is verified against the published sensitivity curve (typically 7.87 V/mm for 5mm probes) using a calibrated gap tool. Integration with the 3500/40M Proximitor/Seismic Monitor or 3500/45 Position Monitor is straightforward, with each channel independently configurable for alert and danger setpoints via the Rack Configuration Software (RCS). This reduces commissioning time and minimizes the risk of configuration errors in multi-machine installations.

Long-term maintenance of the 330910-06-25-05-11-00 is simplified by the probe’s robust construction — the sensing tip is encapsulated in a chemically resistant housing suitable for oil-mist, high-humidity, and high-temperature environments common in turbomachinery applications. Periodic verification of gap voltage and cable continuity is all that is required under normal operating conditions, reducing scheduled maintenance burden and freeing engineering resources for higher-value tasks. All units supplied by ZYPLC are sourced from verified supply channels, pre-shipment tested for electrical continuity and sensitivity compliance, and covered by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility Notes

The 330910-06-25-05-11-00 sits at the base of a well-defined signal hierarchy. At the field level, it works alongside the 3300 XL Extension Cable and 3300 NSv Proximitor Sensor to deliver a clean, calibrated displacement signal. This signal enters the 3500 Series Rack — typically a 19-inch rack housing the 3500/15 Power Supply, 3500/20 Rack Interface Module, and multiple monitor cards such as the 3500/42M Proximitor/Seismic Monitor and 3500/45 Position Monitor. The RIM handles all upstream communication, translating monitor data into plant-compatible protocols for integration with the site DCS, SCADA, or safety instrumented system. At the supervisory layer, the System 1 Evolution platform aggregates data from all rack channels, providing fleet-wide visibility and long-term trend storage. For facilities requiring waveform capture, the 3500/22M Transient Data Interface completes the architecture by recording high-resolution dynamic data during critical machine events.

Industrial Application Notes

The 330910-06-25-05-11-00 is deployed across a wide range of process-critical industries. In power generation, it monitors steam turbine shaft vibration and axial position, feeding trip logic that protects against catastrophic bearing failure. In petrochemical and refining facilities, it is installed on centrifugal compressors and pumps where continuous vibration monitoring is mandated by API 670 machinery protection standards. Water treatment plants use it on large vertical pumps and blowers, where early detection of imbalance or misalignment prevents unplanned outages. In mining and minerals processing, it monitors crusher drives and conveyor head pulleys, where harsh environments demand the probe’s robust encapsulation. Metallurgical facilities deploy it on rolling mill drives and fan systems, integrating vibration data with process control loops to optimize production throughput while protecting critical assets. Across all these applications, the 330910-06-25-05-11-00 delivers consistent, reliable signal quality that underpins both machinery protection and long-term reliability engineering programs.

Product Compatibility FAQ

Q1: Is the 330910-06-25-05-11-00 compatible with both the 3300 NSv and the older 3300 XL Proximitor systems?
The 330910-06-25-05-11-00 is designed for the 3300 NSv Proximitor platform. While the physical connector and cable configuration may appear similar to 3300 XL probes, the calibration curves and sensitivity specifications are optimized for NSv Proximitor electronics. Cross-platform use should be verified against Bently Nevada’s system compatibility documentation before installation. ZYPLC’s technical team can assist with compatibility verification prior to order.

Q2: How does this probe support redundant protection architectures, and what is the recommended installation practice?
For redundant configurations, two 330910-06-25-05-11-00 probes are installed at 90° apart (X and Y planes) on the same bearing journal, each connected to an independent monitor channel within the 3500 rack. This dual-channel arrangement ensures that a single probe or cable fault does not compromise the protection function. The 3500/20 RIM supports voted logic configurations, allowing the system to distinguish between a genuine machine fault and a sensor failure, minimizing spurious trips while maintaining protection integrity.

Q3: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
All 330910-06-25-05-11-00 units supplied by ZYPLC are tested for electrical continuity, insulation resistance, and sensitivity compliance before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Units are shipped with documentation supporting traceability. For urgent requirements, expedited shipping is available with typical lead times of 3–7 business days to major industrial hubs globally. Contact plc.sales@zyplc.com for stock confirmation and technical support.
