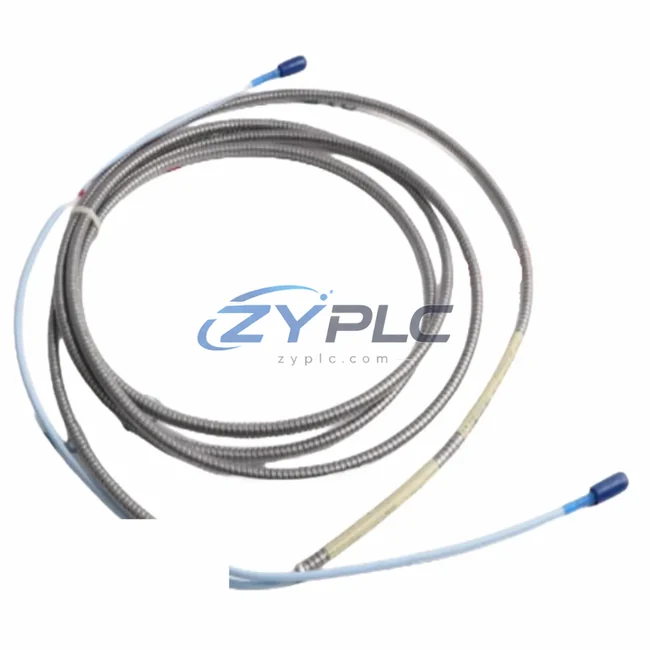

Bently Nevada 330930-045-01-00 Sensor Cable

Bently Nevada 330930-045-01-00 Sensor Cable for 3300 Series Automation

The Bently Nevada 330930-045-01-00 is a precision-engineered sensor cable purpose-built for the 3300 Series vibration monitoring platform. In modern industrial facilities where energy efficiency and equipment uptime are directly tied to profitability, this cable plays a foundational role in closing the loop between rotating machinery and the control system. By delivering clean, low-noise signal transmission from proximity probes to the 3300 XL 8mm Proximitor Sensor, it ensures that every watt consumed by the monitoring system translates into actionable, high-fidelity data — eliminating the unplanned downtime caused by false trips, unnecessary shutdowns, and redundant diagnostic cycles.

When integrated into a complete condition monitoring architecture, the 330930-045-01-00 enables plant engineers to move away from time-based maintenance schedules toward predictive, data-driven intervention. This shift alone can reduce maintenance-related energy consumption by minimizing the frequency of partial-load restarts, cold-start thermal losses, and unplanned motor deceleration events — all of which carry significant hidden energy costs in continuous-process industries.

Product Specification Table

System Compatibility and Application

The 330930-045-01-00 sensor cable does not operate in isolation — it is the signal backbone of a broader industrial automation system. In a typical turbine or compressor train, the cable connects the 330780-50-05 8mm Proximity Probe to the 330930 Proximitor Sensor, which feeds real-time shaft displacement data into the 3300/16 Dual Voting Trip Module. This module, in turn, communicates with the plant’s distributed control system (DCS) or safety instrumented system (SIS) to execute protective actions only when genuinely warranted — avoiding the energy-intensive consequences of nuisance trips.

On the drive side, variable frequency drives (VFDs) such as those in the Rockwell PowerFlex 755 series rely on accurate vibration feedback to modulate motor speed in response to actual load conditions rather than fixed setpoints. When the 330930-045-01-00 delivers clean, uninterrupted signal data, the VFD can operate in its highest-efficiency torque control mode, reducing reactive power draw and improving the overall power factor of the motor circuit. This is particularly impactful in applications where motors run at partial load for extended periods — a common scenario in cooling tower fans, boiler feed pumps, and centrifugal compressors.

For facilities running Bently Nevada System 1 condition monitoring software, the cable’s signal integrity directly affects the quality of spectrum analysis and waveform trending. System 1 uses this data to calculate bearing wear indices, rotor imbalance coefficients, and misalignment severity scores — all of which feed into maintenance planning recommendations. A degraded cable introduces noise that inflates these indices artificially, triggering premature maintenance interventions and the associated energy costs of equipment disassembly, realignment, and recommissioning.

In multi-channel monitoring racks using the 3500/42M Proximitor/Seismic Monitor, the 330930-045-01-00 is part of a channel-by-channel signal chain where each cable’s performance affects the rack’s overall measurement uncertainty. Paired with the 3300 XL 11mm Proximitor Sensor in larger shaft applications, the system can monitor radial and axial displacement simultaneously, enabling the control system to detect thrust bearing degradation before it causes catastrophic failure — a failure mode that typically results in weeks of unplanned downtime and the enormous energy cost of emergency restart procedures.

Communication between the monitoring system and the plant historian or SCADA platform — often via Modbus TCP or OPC-UA protocol bridges — allows the vibration data collected through this cable to be correlated with power meter readings from Schneider Electric PowerLogic ION meters or ABB M2M energy analyzers. This correlation enables energy engineers to identify the precise operating points at which mechanical degradation begins to increase specific energy consumption (kWh per unit of output), allowing for targeted, energy-justified maintenance scheduling.

Maintenance and Replacement Notes

In a petrochemical plant running continuous compressor trains, a single nuisance trip caused by a degraded sensor cable can result in a 4–6 hour restart sequence. During this window, auxiliary systems — seal gas compressors, lube oil heaters, cooling water pumps — continue to consume full power while the main process unit is offline, creating a period of pure unplanned downtime with zero productive output. The 330930-045-01-00 eliminates this failure mode by providing the signal fidelity that the 3300 Series monitoring system requires to distinguish genuine mechanical distress from electrical interference.

In power generation applications, where steam turbines operate at fixed synchronous speeds but variable load, the cable supports the kind of high-resolution shaft monitoring that allows operators to push turbine loading closer to its thermal efficiency optimum. By confirming that rotor dynamics remain within acceptable limits, the monitoring system — fed by this cable — gives operators the confidence to reduce operating margins, increasing output per unit of fuel consumed.

For facilities with multiple rotating assets, the ability to trend vibration data over time through System 1 Evolution software means that maintenance teams can schedule interventions during planned low-demand periods, avoiding the energy penalty of emergency shutdowns during peak production. The 330930-045-01-00, as a critical link in this data chain, contributes directly to the plant’s ability to execute this strategy. Combined with inventory availability and export shipping options available from ZYPLC, replacement cables can be on-site within days, minimizing the window of monitoring vulnerability and ensuring that the plant’s maintenance planning strategy is never compromised by a missing spare part.

Every unit shipped by ZYPLC undergoes functional testing and signal continuity verification before dispatch, backed by a warranty terms confirmed during quotation. This ensures that the cable performs to Bently Nevada specification from the moment it is installed, with no break-in period of degraded signal quality that could distort early vibration trend data and lead to incorrect maintenance planning decisions.

Product Sourcing FAQ

Q1: How does the 330930-045-01-00 contribute to operational stability in a rotating machinery application?
By ensuring clean, low-noise signal transmission from the proximity probe to the Proximitor Sensor, this cable enables the 3300 Series monitoring system to make accurate trip and alarm decisions. This reduces nuisance trips, which are among the most energy-intensive events in continuous-process plants due to the energy cost of shutdown and restart sequences.

Q2: Is the 330930-045-01-00 compatible with both the 3300 XL 8mm and 11mm Proximitor Sensor systems?
The 330930-045-01-00 is designed as an extension cable for the 3300 Series platform and is primarily specified for use with the 3300 XL 8mm Proximitor Sensor. For 11mm probe systems or other channel configurations, consult the Bently Nevada system documentation or contact ZYPLC to confirm compatibility before installation.

Q3: What is the recommended replacement interval, and how does timely replacement affect energy efficiency?
Bently Nevada does not publish a fixed replacement interval for sensor cables under normal operating conditions; replacement is typically condition-based. However, cables exposed to high-temperature environments, chemical exposure, or mechanical stress should be inspected annually. A degraded cable that introduces signal noise can cause the monitoring system to operate in a state of elevated alarm sensitivity, increasing the frequency of unnecessary operator interventions and the associated energy costs of partial shutdowns.

Q4: What warranty and testing does ZYPLC provide with the 330930-045-01-00?
Every 330930-045-01-00 shipped by ZYPLC is covered by a warranty terms confirmed during quotation and has undergone pre-shipment functional testing including signal continuity and insulation resistance verification. This ensures the cable meets Bently Nevada performance specifications from day one of installation, protecting the integrity of your vibration monitoring data and the maintenance planning decisions that depend on it.
