Bently Nevada 3309330-060-04-05 Proximity Probe for 3300 Series

Bently Nevada 3309330-060-04-05: Industrial Data Link for 3300 Series Vibration Monitoring Networks

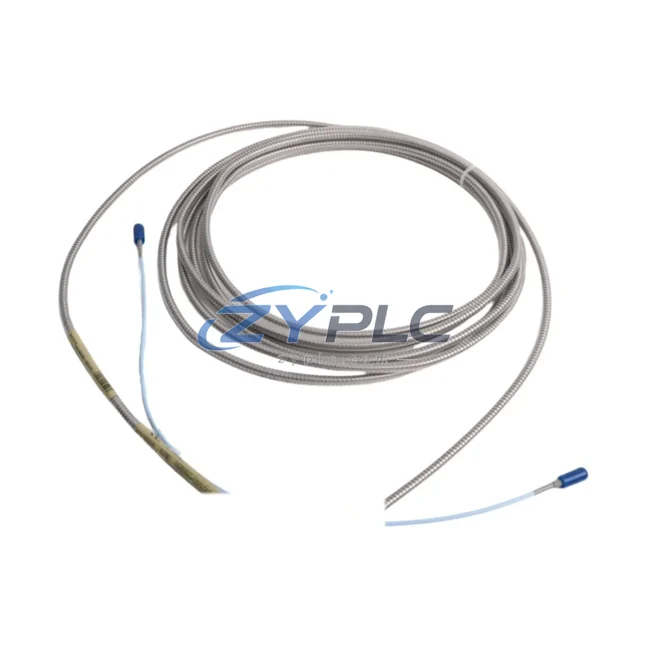

The Bently Nevada 3309330-060-04-05 is an 8mm eddy-current proximity probe engineered for continuous, high-resolution shaft vibration and position monitoring in rotating machinery environments. As a core sensing node within the Bently Nevada 3300 Series ecosystem, this probe serves as the critical signal origin point in a layered industrial data chain — converting mechanical displacement into precise analog signals that feed directly into condition monitoring systems, DCS platforms, and plant-wide SCADA networks. In smart factory deployments where real-time machine health data drives predictive maintenance decisions, the 3309330-060-04-05 delivers the measurement accuracy and signal integrity that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory architecture, the 3309330-060-04-05 proximity probe anchors the signal acquisition layer. Mounted at the bearing journal of a high-speed compressor or steam turbine, the probe transmits continuous displacement data to a paired Bently Nevada 3300 XL 8mm Proximitor Sensor — the signal conditioning module that converts raw eddy-current output into a calibrated voltage signal readable by upstream systems.

That conditioned signal feeds into a Bently Nevada 3500/42M Proximitor I/O Module housed within a 3500 Series monitoring rack, where it is processed for alarm thresholds, gap voltage verification, and direct/gap/1X/2X vector analysis. The 3500 rack communicates over Modbus TCP or OPC-UA to plant-level SCADA platforms such as GE iFIX, Wonderware System Platform, or Emerson DeltaV, enabling operators to visualize shaft centerline plots and vibration trend data in real time.

For facilities integrating legacy PLCs — such as a Siemens S7-300 or Allen-Bradley ControlLogix L7x — a Bently Nevada 3500/92 Communication Gateway Module bridges the proprietary monitoring network to standard industrial Ethernet backbones. This gateway translates 3500 rack data into PROFIBUS DP or EtherNet/IP frames, allowing the vibration data stream from the 3309330-060-04-05 to appear as structured process variables within the PLC’s I/O table — no custom programming required.

At the HMI layer, operators working with a Siemens TP1200 Comfort Panel or Rockwell PanelView Plus 7 can display live vibration amplitude, phase angle, and alarm status sourced directly from the probe’s data path. Meanwhile, edge computing nodes — such as a Moxa UC-8112 industrial gateway — can aggregate multi-channel vibration data from several 3309330-060-04-05 probes across a machine train, applying local analytics before forwarding compressed datasets to cloud-based asset performance management (APM) platforms over secure MQTT or HTTPS tunnels.

Variable frequency drives (VFDs) controlling the monitored machinery — for example, an ABB ACS880 industrial drive — can receive speed reference signals correlated with the vibration data, enabling closed-loop speed adjustments triggered by vibration alarm events. This tight integration between the sensing layer (3309330-060-04-05), the monitoring rack (3500 Series), the communication gateway, and the drive control layer exemplifies the end-to-end industrial connectivity that modern predictive maintenance programs require.

Solving Data Isolation in Industrial Sites

Many industrial facilities still operate with fragmented monitoring architectures — vibration data locked inside proprietary condition monitoring systems, inaccessible to the plant’s DCS or ERP. The Bently Nevada 3309330-060-04-05, deployed within the 3300/3500 Series framework, directly addresses this data isolation challenge.

By pairing the probe with a Bently Nevada System 1 Evolution software platform and an OPC-UA server, all vibration, position, and alarm data becomes available as standardized process tags — consumable by any SCADA, historian (such as OSIsoft PI), or MES system on the network. Protocol fragmentation between legacy PROFIBUS segments and modern Ethernet/IP backbones is resolved through gateway modules that perform real-time protocol translation without introducing measurable latency into the alarm response chain.

Remote diagnostics become straightforward: maintenance engineers can access live waveform data, spectrum plots, and historical trend archives from any networked workstation or mobile device — eliminating the need for on-site instrument checks during off-hours. Production line transparency improves as machine health KPIs from the 3309330-060-04-05 data stream are surfaced on plant dashboards alongside OEE metrics, enabling operations teams to correlate vibration anomalies with production throughput losses in real time.

System expansion is equally seamless. Additional proximity probes, velocity sensors, or temperature transmitters can be added to the 3500 rack without disrupting the existing network topology, and the communication gateway automatically maps new channels to the SCADA tag database. Every unit of the 3309330-060-04-05 supplied by ZYPLC undergoes pre-shipment functional verification — including gap voltage calibration check and output signal continuity test — and is backed by a warranty terms confirmed during quotation covering manufacturing defects and signal performance.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3309330-060-04-05 support when integrated into a SCADA system?
The probe itself outputs an analog voltage signal via the 3300 Series proximitor. Protocol conversion to Modbus TCP, PROFIBUS DP, EtherNet/IP, or OPC-UA is handled by the 3500 Series communication gateway module or System 1 Evolution software, making the vibration data accessible to virtually any modern SCADA or DCS platform without custom middleware.

Q2: How does the 3309330-060-04-05 perform in high-EMI industrial environments, and will network signal stability be affected?
The eddy-current sensing principle is inherently immune to electromagnetic interference, dust, oil mist, and non-conductive contaminants. Signal conditioning within the 3300 Series proximitor further filters noise before transmission, ensuring stable, low-jitter analog output even in high-EMI environments adjacent to large motors or VFDs.

Q3: Can the 3309330-060-04-05 be integrated into an existing Allen-Bradley or Siemens PLC network without replacing the monitoring rack?
Yes. The Bently Nevada 3500/92 Communication Gateway Module enables direct integration of 3500 rack data — including signals from the 3309330-060-04-05 — into Allen-Bradley ControlLogix or Siemens S7 networks via EtherNet/IP or PROFIBUS DP respectively. No rack replacement is required; the gateway maps vibration channels to standard PLC I/O addresses.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
Every 3309330-060-04-05 unit supplied by ZYPLC is tested for gap voltage output, signal linearity, and cable continuity prior to shipment. The warranty terms confirmed during quotation covers manufacturing defects, signal performance deviations from published specifications, and connector integrity. Replacement or repair is provided at no charge for confirmed warranty claims within the coverage period.
