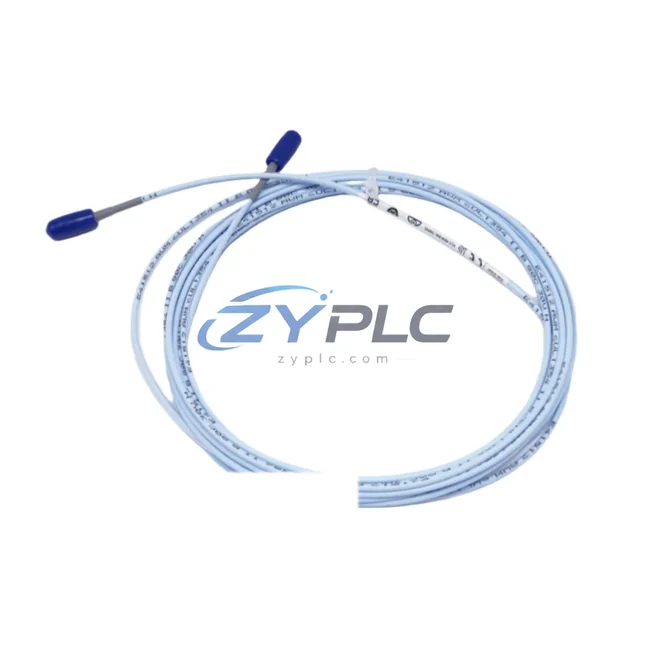

Bently Nevada 3309330-065-04-05 Proximity Probe for 3300 Series

Bently Nevada 3309330-065-04-05 Proximity Probe for 3300 Series

The Bently Nevada 3309330-065-04-05 is an eddy-current proximity probe engineered for seamless integration within the 3300 Series continuous vibration monitoring architecture. Designed to deliver precise, non-contact displacement and vibration measurements, this probe serves as the primary sensing element in rotating machinery protection systems deployed across power generation, petrochemical, oil & gas, water treatment, mining, metallurgy, and heavy manufacturing environments. Its role within the control system hierarchy extends far beyond simple signal acquisition — it is a foundational component that determines the accuracy, reliability, and long-term stability of the entire machinery protection loop.

In a layered automation architecture, the 3309330-065-04-05 operates at the field sensing layer, interfacing directly with the rotating shaft or target surface. The probe generates a continuous analog voltage signal proportional to the gap distance between the probe tip and the conductive target. This signal is transmitted via the extension cable to the proximitor/driver module — typically the Bently Nevada 3300 XL 8mm Proximitor Sensor (330180-51-00) — which conditions the raw signal into a calibrated output suitable for the monitor rack. The monitor rack, such as the Bently Nevada 3500/22M Transient Data Interface or the 3500/15 Power Supply module, processes these conditioned signals and compares them against user-defined alert and danger setpoints, triggering protective relay outputs when thresholds are exceeded.

The integration of the 3309330-065-04-05 into a complete 3300 Series system requires careful attention to the signal chain from the control layer down to the execution layer. At the control layer, a DCS or safety PLC — such as a Rockwell Automation ControlLogix or Siemens S7-400H — receives processed vibration data from the 3500 Series monitor rack via Modbus RTU, PROFIBUS DP, or Ethernet/IP communication gateways. This system integration ensures that vibration data is not siloed within the machinery protection system but is instead available to the plant-wide control and historian infrastructure, enabling coordinated shutdown logic, predictive maintenance scheduling, and real-time condition dashboards.

At the I/O layer, the probe’s analog output is routed through the 3500 rack’s I/O modules, which provide galvanic isolation and signal buffering. The 3500/20 Rack Interface Module manages communication between individual monitor cards and the plant DCS, while the 3500/32 4-Channel Relay Module executes protective relay actions based on monitor outputs. The power layer is served by the 3500/15 Power Supply, which provides redundant 24 VDC rails to ensure uninterrupted operation even during utility power disturbances — a critical requirement in continuous-process industries where unplanned shutdowns carry significant financial and safety consequences.

From a network and communication perspective, the 3309330-065-04-05 probe system supports integration with plant asset management platforms via OPC DA/UA servers hosted on the 3500 rack’s communication modules. This enables real-time vibration trend data to be streamed to condition monitoring software such as System 1, where engineers can perform spectral analysis, orbit plot review, and bearing wear trending without interrupting the protection function. The separation of the monitoring and protection functions within the 3300/3500 architecture ensures that diagnostic activities never compromise the integrity of the machinery protection loop.

For installations requiring redundant sensing, the 3309330-065-04-05 can be paired with a second probe mounted at 90 degrees to the first, enabling XY orbit measurement of shaft centerline position. This dual-probe configuration, combined with a Keyphasor module such as the 3500/25 Keyphasor Module, provides the phase reference necessary for advanced rotor dynamic analysis, including resonance identification, balance correction, and mode shape characterization. The Keyphasor signal is distributed across the 3500 rack via the internal backplane, eliminating the need for external signal routing and reducing installation complexity.

In terms of mechanical installation, the 3309330-065-04-05 is designed for threaded mounting into a probe holder or bracket positioned adjacent to the shaft. The probe tip-to-target gap must be set within the linear range of the eddy-current system — typically 0.25 mm to 2.25 mm for 8mm probes — using a calibrated gap voltage reference. Proper gap setting is essential for maximizing measurement linearity and ensuring that the proximitor output remains within the calibrated range across the full operating temperature envelope. The probe’s stainless steel housing and armored cable construction provide robust protection against the oil mist, high temperatures, and mechanical vibration characteristic of turbomachinery bearing housings.

Long-term maintenance of the 3309330-065-04-05 system involves periodic verification of gap voltage, cable continuity, and proximitor output linearity. Replacement of worn or damaged probes is simplified by the standardized thread form and cable connector, which allow field technicians to swap probes without recalibrating the entire system — provided the replacement probe is from the same calibrated system set. Maintaining a spare probe inventory is strongly recommended for critical machinery applications, and ZYPLC supplies the 3309330-065-04-05 with a warranty terms confirmed during quotation covering manufacturing defects and performance conformance to Bently Nevada specifications.

Product Specification Table

System Compatibility Notes

The 3309330-065-04-05 achieves its full protective value only when integrated within a coherent system architecture. A typical 3300/3500 Series machinery protection system built around this probe includes the following coordinated components:

The Bently Nevada 330180-51-00 3300 XL 8mm Proximitor Sensor conditions the probe’s raw eddy-current signal into a calibrated –24 VDC output, forming the probe-proximitor pair that must be calibrated as a matched set. The Bently Nevada 3500/22M Transient Data Interface captures high-speed transient vibration data during startup and shutdown events, providing the waveform records necessary for rotor dynamic analysis. The Bently Nevada 3500/15 Power Supply delivers redundant DC power to the monitor rack, ensuring continuous operation during power disturbances. The Bently Nevada 3500/32 4-Channel Relay Module executes protective relay outputs — trip, alert, and danger — based on monitor card setpoints, interfacing with the plant’s emergency shutdown system.

For phase reference and advanced rotor analysis, the Bently Nevada 3500/25 Keyphasor Module provides the once-per-revolution timing signal distributed across the rack backplane. The Bently Nevada 3500/20 Rack Interface Module manages Modbus and Ethernet communication between the monitor rack and the plant DCS or historian. At the HMI layer, operator workstations running Bently Nevada System 1 condition monitoring software receive real-time vibration trends, orbit plots, and alarm histories, enabling proactive maintenance decisions. The Bently Nevada 3300/16 Monitor provides the primary vibration and position measurement channel for the probe signal, with configurable alert and danger setpoints. Extension cables such as the Bently Nevada 330130-045-00-00 complete the signal path between the probe and proximitor, maintaining signal integrity across the bearing housing-to-rack distance. Finally, terminal blocks and marshalling panels — including DIN-rail mounted Phoenix Contact PTFIX series terminal modules — organize field wiring within the control cabinet, ensuring clean signal routing and simplified maintenance access.

Industrial Application Notes

The 3309330-065-04-05 is deployed across a wide range of process industries where rotating machinery protection is critical to operational continuity and personnel safety. In power generation, the probe monitors shaft vibration on steam turbines, gas turbines, and generator rotors, providing the early warning necessary to prevent catastrophic bearing failures during baseload and peaking operations. In petrochemical and refining plants, it protects centrifugal compressors, pumps, and expanders operating in hazardous atmospheres, where ATEX-certified probe assemblies are mandatory.

In oil and gas upstream and midstream facilities, the probe is installed on pipeline compressors and gas injection units, where continuous vibration monitoring supports both API 670 compliance and predictive maintenance programs. Water and wastewater treatment plants use the 3309330-065-04-05 on large centrifugal pumps and blowers, where early detection of imbalance or misalignment prevents unplanned outages in critical infrastructure. In mining and mineral processing, the probe monitors grinding mill drives, slurry pumps, and conveyor head pulleys, where harsh environmental conditions demand the robust construction of the 3300 Series probe system.

In metallurgical applications — including rolling mills, continuous casters, and electric arc furnace auxiliaries — the probe’s high-temperature rating and stainless steel construction enable reliable operation in environments characterized by heat radiation, scale, and mechanical shock. Packaging and converting lines use the probe on high-speed rotary equipment where shaft runout monitoring ensures product quality and prevents tooling damage. Across all these applications, the warranty terms confirmed during quotation and ZYPLC’s global supply chain ensure that replacement probes are available with short lead times, minimizing the risk of extended machinery downtime due to spare parts unavailability.

Product Compatibility FAQ

Q1: Is the 3309330-065-04-05 compatible with both the 3300 Series and 3500 Series monitor racks?
Yes. The 3309330-065-04-05 is designed as part of the Bently Nevada 3300 XL eddy-current system and is fully compatible with both the 3300 Series and 3500 Series monitor racks when paired with the correct proximitor — typically the 330180-51-00 for 8mm probe systems. The probe-proximitor pair must be calibrated together as a matched set to ensure measurement accuracy within the specified linear range. Mixing probe and proximitor models from different calibration sets will result in measurement errors and is not recommended for machinery protection applications.

Q2: What installation and commissioning steps are required to integrate this probe into an existing 3500 Series rack?
Integration requires four key steps: (1) mechanical installation of the probe in the bearing housing bracket with correct gap setting (verified by measuring proximitor output voltage against the calibration chart), (2) routing of the extension cable from the probe to the proximitor mounted outside the bearing housing, (3) connection of the proximitor output to the 3500 monitor card input terminal, and (4) configuration of alert and danger setpoints in the 3500 rack via the Rack Configuration Software (RCS). Following commissioning, a functional test should be performed by simulating gap changes and verifying that the monitor card responds correctly and relay outputs actuate at the configured setpoints.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and performance non-conformance to Bently Nevada published specifications for the 3309330-065-04-05. In the event of a warranty claim, ZYPLC will arrange replacement or repair of the defective unit. Beyond the warranty period, ZYPLC maintains inventory of 3300 Series probe assemblies, extension cables, and proximitor sensors to support long-term spare parts programs for critical machinery protection systems. Customers are encouraged to contact ZYPLC to establish a consignment or blanket order arrangement that guarantees probe availability aligned with their planned maintenance intervals.
