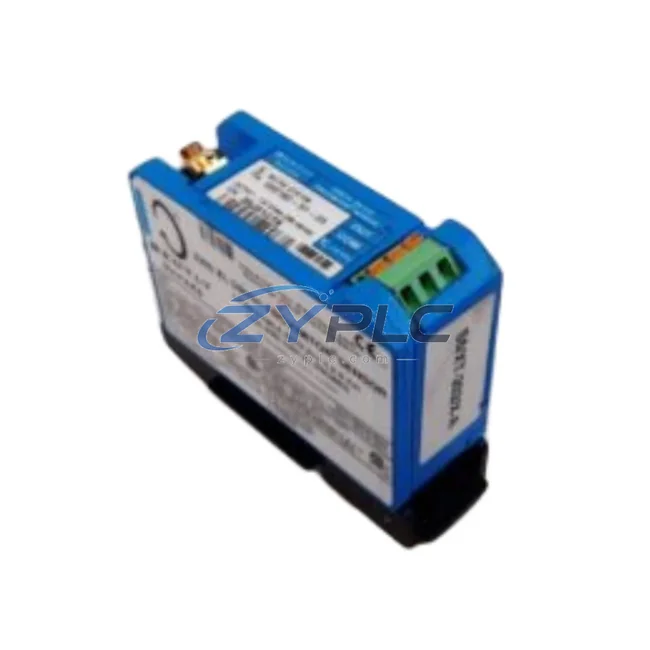

Bently Nevada 330980-51-CN Proximitor for 3300: Compatibility and Replacement Notes

The Bently Nevada 330980-51-CN is a precision eddy-current Proximitor Sensor engineered for seamless integration within the 3300 Series machinery protection architecture. Rather than functioning as a standalone measurement device, this sensor occupies a critical node in a layered automation hierarchy — bridging the physical measurement layer with the signal conditioning, processing, and supervisory control layers that define modern industrial machinery protection systems. Understanding its role within the full control stack is essential for engineers designing, commissioning, or maintaining rotating machinery protection systems in power generation, petrochemical, mining, metallurgy, and heavy process industries.

In a complete 3300 Series architecture, the 330980-51-CN operates as the field-level sensing element, converting shaft displacement into a proportional DC voltage signal that feeds directly into the 3300/16 Dual Voting Trip System or the 3300/20 Rack Monitor. The signal chain begins at the probe tip — typically a 330101 or 330103 Series proximity probe — passes through the extension cable assembly, and terminates at the 330980-51-CN Proximitor, which conditions the raw eddy-current signal into a calibrated output readable by the monitor rack. This architecture ensures that every layer of the system — from the rotating shaft surface to the DCS or safety instrumented system — receives a clean, consistent, and diagnostically meaningful signal.

Product Specification Table

System Compatibility Notes

The 330980-51-CN achieves its full value only when considered within the context of a coordinated machinery protection architecture. At the sensing layer, it pairs with the 330101-00-08-10-02-00 proximity probe and a matched extension cable to form a complete transducer chain. The Proximitor output feeds into the 3300/16 Dual Voting Trip System, which provides two-out-of-three voting logic for critical trip decisions — a configuration widely used in turbine protection and compressor train monitoring where spurious trips carry significant operational cost.

At the rack level, the 3300/20 Rack Monitor aggregates signals from multiple Proximitor channels, enabling engineers to monitor radial vibration, axial position, and differential expansion simultaneously across a single machine train. The rack communicates upstream via the 3500/92 Communication Gateway, which supports Modbus RTU and TCP/IP protocols, allowing the machinery protection data to be integrated into a plant-wide DCS — such as a Honeywell Experion PKS or Emerson DeltaV — without signal conversion losses.

Power integrity is maintained through the 3300/15 Power Supply, which delivers regulated -24 VDC to the Proximitor network. In redundant architectures, dual power supplies with automatic switchover ensure that a single power module failure does not interrupt vibration monitoring continuity. The 3300/55 I/O Module provides the terminal block interface between field wiring and the monitor rack, simplifying installation and enabling hot-swap maintenance without disturbing adjacent channels.

At the human-machine interface layer, the System 1 Evolution software platform receives real-time and historical vibration data from the 3300 rack, enabling trend analysis, alarm management, and predictive maintenance scheduling. Engineers can configure alert and danger setpoints, review Bode plots and orbit diagrams, and correlate vibration signatures with process variables — all within a unified condition monitoring environment. This system integration between the 330980-51-CN at the field level and System 1 at the supervisory level is what transforms raw displacement data into actionable machinery health intelligence.

For applications requiring SIL-rated protection, the 330980-51-CN can be incorporated into a safety instrumented function alongside the 3300/16 Voting Trip System and a certified safety PLC, such as a Triconex Tricon or Rockwell GuardLogix, to achieve the required safety integrity level for turbine overspeed or compressor surge protection loops.

Industrial Application Notes

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the 330980-51-CN is deployed to monitor journal bearing radial vibration and shaft axial position. Turbine OEMs and EPC contractors specify the 3300 Series architecture as the baseline machinery protection platform, and the 330980-51-CN is the standard Proximitor for new installations and retrofit upgrades alike. Its wide operating temperature range and hazardous area certification make it suitable for both indoor turbine halls and outdoor skid-mounted applications.

In petrochemical and refinery environments, the sensor monitors centrifugal compressors, pumps, and gearboxes in continuous process trains where unplanned downtime carries multi-million-dollar consequences. The sensor’s FM and CSA certifications allow installation in Class I, Division 1 hazardous locations without additional barriers in many configurations, simplifying the overall system design and reducing installed cost.

In mining and metallurgy applications — including ball mills, SAG mills, and large fan drives — the 330980-51-CN provides the displacement measurement foundation for condition-based maintenance programs. By integrating Proximitor data with process variables such as mill load, feed rate, and bearing temperature, maintenance teams can identify developing faults weeks before they reach alarm thresholds, enabling planned interventions rather than emergency shutdowns.

In water treatment and municipal infrastructure, large pump stations and blower trains increasingly adopt the 3300 Series architecture to meet reliability and regulatory requirements. The 330980-51-CN’s long-term calibration stability — verified under the warranty terms confirmed during quotation program — ensures that protection setpoints remain accurate across seasonal temperature variations and extended maintenance intervals.

Product Compatibility FAQ

Q1: Is the 330980-51-CN compatible with both the 3300 and 3500 Series monitor racks?
The 330980-51-CN is natively designed for the 3300 Series architecture and is fully compatible with all 3300 Series monitor modules, including the 3300/16, 3300/20, and 3300/55. While the 3500 Series uses the same eddy-current transducer technology and accepts the same probe-Proximitor-cable chain, the 3500 Series monitors are typically paired with 3500/42 Proximitor I/O modules. The 330980-51-CN can be used in 3500 Series applications where the output voltage range and scale factor are compatible with the configured channel settings — always verify channel configuration with the 3500 Series rack documentation before deployment.

Q2: What are the installation and commissioning requirements for the 330980-51-CN in a redundant architecture?
In redundant Proximitor architectures, two complete transducer chains — each consisting of a proximity probe, extension cable, and 330980-51-CN Proximitor — are installed at the same measurement plane, offset by 90 degrees for XY radial vibration measurement or at the same axial plane for thrust position monitoring. Each Proximitor is powered from an independent -24 VDC supply rail, and the outputs are wired to separate monitor channels within the 3300/16 Dual Voting Trip System. During commissioning, gap voltage must be set to -10 VDC ±0.5 VDC at the nominal air gap, and the scale factor must be verified against a calibrated reference target of the same material as the shaft. All commissioning records should be retained for the duration of the warranty terms confirmed during quotation period and beyond for audit and insurance purposes.

Q3: How does the warranty terms confirmed during quotation apply to the 330980-51-CN, and what does it cover?
The warranty terms confirmed during quotation provided with every 330980-51-CN covers manufacturing defects, signal output calibration drift beyond published specifications, and housing or connector integrity failures under normal operating conditions. The warranty period begins from the date of shipment and is supported by ZYPLC’s technical team, who can provide replacement units, calibration certificates, and failure analysis reports as required. Warranty claims are processed through direct contact with the ZYPLC sales and technical support team, and replacement units are typically dispatched within 3–5 business days of claim verification. The warranty does not cover damage resulting from incorrect installation, overvoltage conditions, or mechanical impact.
